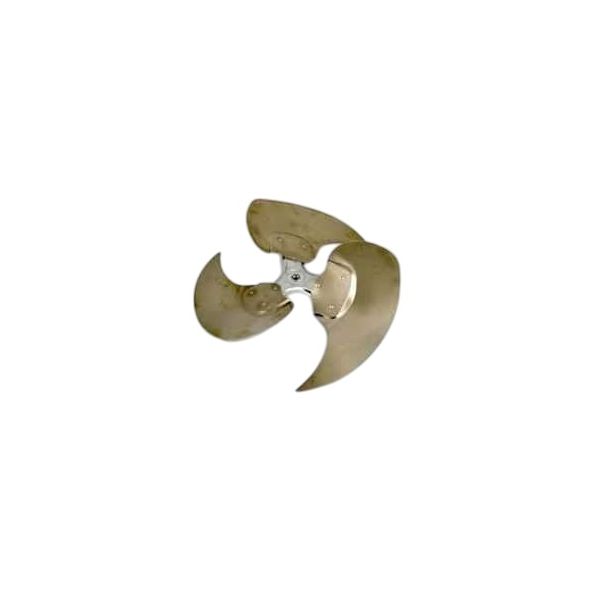

York S1-026-39500-000 3-Blade Fan 22" Diameter 22° Angle 1/2" Bore CW

Rating:

Special Price $274.27 Regular Price $304.44

Out of stock

SKU

S1-026-39500-000

The York S1-026-39500-000 3-blade Fan is a high-performance part designed for use in HVAC units to circulate air. This fan blade is 22" in diameter and has a blade angle of 22°, and the bore size is 1/2". This fan rotates in the clockwise direction for better air circulation and cooling. This is because the AC comes with three blades that enable efficient distribution of air, hence constant temperature management and improvement of the system efficiency. This fan blade can be used in different models of York HVAC units as it contributes to energy conservation and operating expenses. This fan blade allows better heat sink and system durability by bringing steady and forceful air flows, making it ideal for home or business use.

Categories: Motors & Capacitors, Motors & Components

Manufacturer:

York

Specifications

Type: Fan Blade
Blade Count: 3
Bore Size: 1/2"

Blade Angle: 22°
Rotation: Clockwise
Diameter: 22"

Details

Rotating fan assemblies provide the mechanical action needed to circulate air through an associated system. The York S1-026-39500-000 is a three-blade fan that produces directional air movement when driven by a compatible shaft. It performs the air-moving function within the connected assembly.

Blade Geometry and Air Movement:
The fan uses three blades to convert shaft rotation into directional airflow. The specified blade angle influences how the blade surfaces interact with the surrounding air as the fan rotates. The resulting airflow depends on the fan design and its installation within the equipment.

Shaft Connection and Rotation:
The fan mounts onto a compatible shaft through its center bore, allowing the drive source to transfer rotational force to the blades. The bore size, overall diameter, blade angle, and clockwise rotation are important characteristics when matching the fan to the existing assembly. These characteristics must correspond to the equipment's mechanical requirements.

Replacement Guidelines:
Replacement may be appropriate when the fan has damaged blades or a compromised center bore that prevents secure mounting or proper rotation. Before ordering, compare the existing S1-026-39500-000 part number and verified specifications with the requirements of the intended equipment.

Common Signs of Wear:

Bent or damaged fan blades
Excessive vibration during operation
Uneven fan rotation
Unusual operating noise
Visible corrosion or surface deterioration

Equipment Compatibility:
The York S1-026-39500-000 is intended for compatible HVAC equipment requiring the corresponding three-blade fan configuration. Before purchasing, verify the part number, blade count, diameter, blade angle, bore size, and rotation against the applicable equipment parts documentation.

Technical Specifications:
Product Identification:
Brand: York
Part Number: S1-026-39500-000
Product Type: 3-Blade Fan

Mechanical:
Blade Count: 3
Diameter: 22 inch
Blade Angle: 22°
Bore: 1/2 in
Rotation: CW (Clockwise)

Reviews 6

Write Your Own Review

Product Questions (10)

Customer Questions

What is the significance of the diameter of fan blades in HVAC systems?

The diameter of fan blades determines the area they can cover and the amount of air they can move, impacting the system's overall efficiency.

How do the 22-degree blade angles impact airflow in HVAC setups?

The 22-degree angles are optimized to facilitate efficient airflow, improving the overall effectiveness of your HVAC system.

Are these fan blades suitable for both residential and commercial HVAC applications?

Absolutely, these 22-inch fan blades are versatile and work well in a range of settings, from homes to commercial spaces.

What maintenance is required for the York S1-026-39500-000 Fan Blade?

Regularly inspect the fan blades for dirt and wear, ensuring they are balanced and secure. Lubricate bearings if applicable, check for loose connections, and clean debris to prevent vibration or performance loss. Always follow safety precautions when working near rotating parts.

What are common issues with the York S1-026-39500-000 Fan Blade?

Blade imbalance causing vibration.
Noise from worn bearings.
Reduced airflow due to debris accumulation.
Loose mounting or connection points.
Motor strain if airflow is obstructed.

What is the function of the York S1-026-39500-000 3-Blade Fan?

The fan converts rotational movement from a compatible drive shaft into airflow, helping circulate air through the associated equipment.

How can I identify the correct replacement for the S1-026-39500-000?

Compare the existing fan's part number with the equipment parts documentation and check that the replacement matches the required mechanical configuration.

Why must the replacement fan match the original rotation direction?

The rotation direction determines how the fan operates within the connected assembly. A replacement must match the direction specified by the equipment's design.

Which equipment models are compatible with the York S1-026-39500-000 Fan?

Specific compatible equipment models have not been confirmed from the supplied information. Check the equipment model and parts documentation to establish whether this fan is specified for the application.

Can a fan with the same diameter and bore replace the S1-026-39500-000?

Not necessarily. Blade count, blade angle, rotation direction, mounting arrangement, and the equipment's requirements must also match before selecting a replacement.
