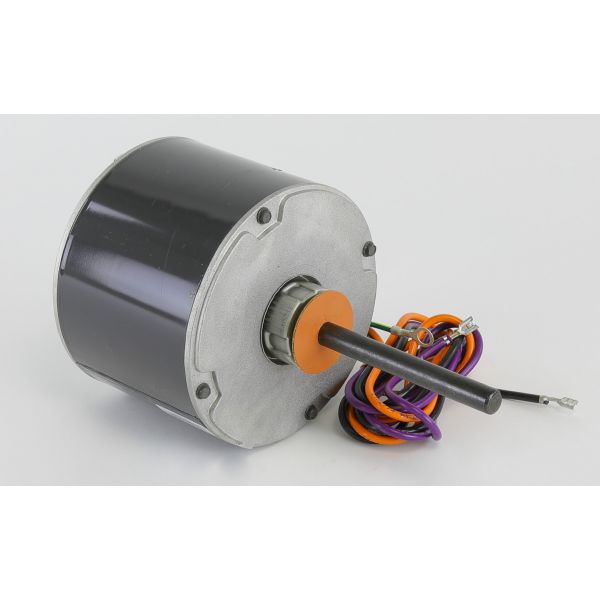

Lennox 27H34 1/10HP Condenser Fan Motor 208/230V/1PH
Special Price $228.31 Regular Price $253.42
In stock
SKU
27H34
The Lennox 27H34 1/10HP Condenser Fan Motor is designed specifically for the requirements of air conditioning and heat pump systems in HVAC systems. This is rated for 208/230V operation and is supplied with 1-phase power and effectively powering the condenser fan to ensure heat is removed from the system and the better temperature is maintained. The motor plays a role in increased efficiency in HVAC units by allowing smooth airflow increasing cooling output, and saving energy. Its tough design provides long-term performance and is essential in increasing the longevity of an HVAC system, improving comfort and maintaining operational effectiveness.
Manufacturer:
Specifications
- Measure: Units
- Horsepower: 1/10 HP
- Type of Bearing: Sleeve
- Frequency: 60 Hz
- Number of Phases: 1 Phase
- Length of Shaft: 5
- Number of Speeds: 1
- NEMA Frame Size: 48
- Rotation: CCW from lead end
- Diameter of Shaft: 0.5 Inch
- Type of Motor: PSC
- RPM: 825 RPM
- Position of Motor Mounting: Vertical
- Type of Motor Mounting: Belly Band
- Voltage: 208-230V
- Shaft Size: 1/2 Inch x 5 Inch
- Capacitor Value: 3.75 MFD 370 VAC
- Rotation: CCWLE
- Type of Bearing: Sleeve
- Weight: 10.36lbs
