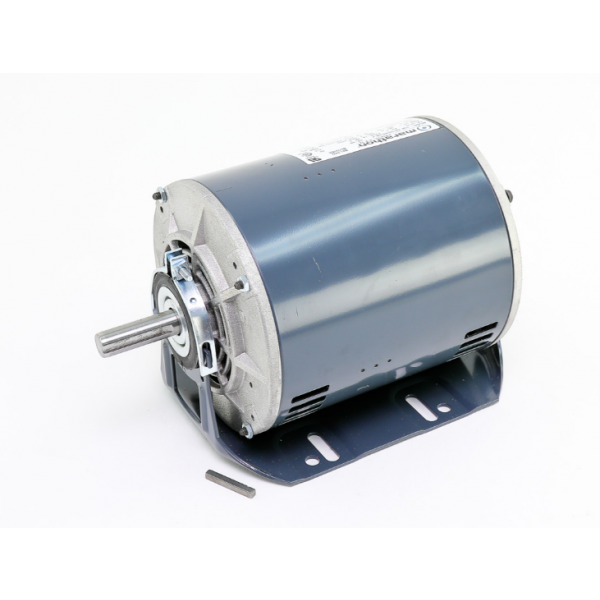

Trane MOT3078 Motor 1 HP 200-230/460V 3450 RPM
Special Price $1,488.03 Regular Price $1,651.72
Out of stock
SKU
MOT3078
The Trane MOT3078 includes a high output 1-horsepower AC motor and was specifically developed for use in Trane HVAC systems as well as for large applications. This motor is 13.2” long and is mounted in a resilient fashion, with ball bearings for 60 Hz operation. While having a voltage scope of 200-460V, the MOT3078 will also fit both single phase and also 3 phase trains of equipment supported by Trane. When running, it provides motor speed of 3450 RPM and has an efficiency of 74%, thus providing efficient power output. An automatic overload protector is incorporated to protect the motor from electrical problems, while its open drip-proof construction protects it against dripping liquids.
Manufacturer:
Specifications
- Length: 13.2"
- Base Type: Ball
- Bearing Type: Resilient
- Center Shaft Height: 3.5"
- Efficiency: 74%
- Enclosure Type: ODP
- Frame Size: 56
- Frequency: 60 Hz
- Full Load Amperage: 3.4 to 3.7/1.85 A
- HP: 1
- Insulation Class: B
- Load Current: 3.7A
- Motor Type: AC
- Mount: Resilient
- Mounting Type: Top
- NEMA Dimensions: 6.625 x 9.125"
- Number of Phase: 3
- Protector Type: Automatic
- Rotation: Reversible
- Shaft Diameter: 0.625"
- Shaft Length: 1.875"
- RPM: 3,600
- Standards: CSA, UL
- Technology: Poly Phase
- Voltage: 200V-460V
- Weight: 23.83 lbs
