Trane SWT1614 CI Auto Limit Switch 190°F
Special Price $50.02 Regular Price $57.53
In stock
SKU
SWT1614

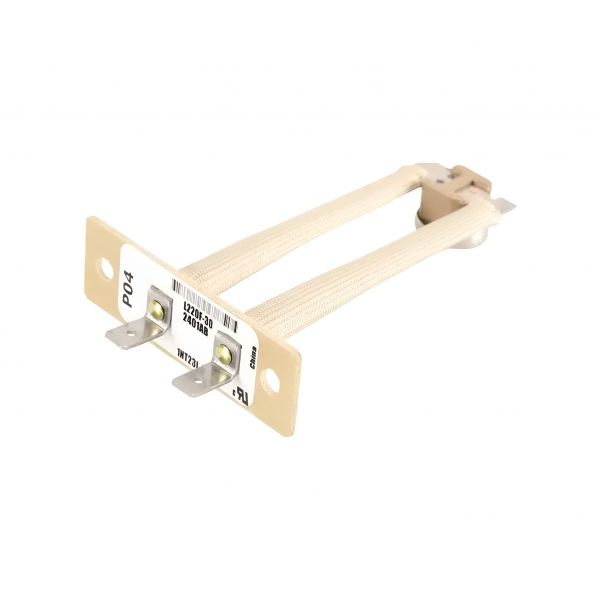

The Trane SWT1614 CI Auto Limit Switch is a thermal limit switch that is used to self-reset when the temperature goes high. It has a reset temperature of 190°F and an open temperature of 220°F to guarantee the safe functioning of HVAC systems. It has an SPST contact arrangement, a 6A current rating and 120 VAC voltage – which makes it suitable for over temperature control in heating equipment. This switch is used in Trane furnaces, air handlers, and heat pumps series. This auto-reset function helps avoid damage, so the system becomes more reliable and productive.
Manufacturer:
Specifications
- Length: 1"
- Width: 2.52"
- Height: 3.2"
- Contact Arrangement: SPST
- Current Rating: 6A
- Life Cycle: 100000
- Mounting Type: Board/Surface Mount
- Number of Poles: 1
- Reset Temperature: 190°F
- Switch Tolerance (°F): ±6 Open
- ±10 Close
- Terminal Material: Pre-Plated Ni-Zn (Nickel-Zinc) Coat
- Type: Thermal Limit Switch
- Current Rating (FLA): 5.8 FLA
- Function: Auto Reset
- Locked Rotor Current: 34.8A
- Open Temperature: 220°F
- Terminal Type: Quick Connect
- Voltage: 120 VAC
- Weight: 0.04lb
