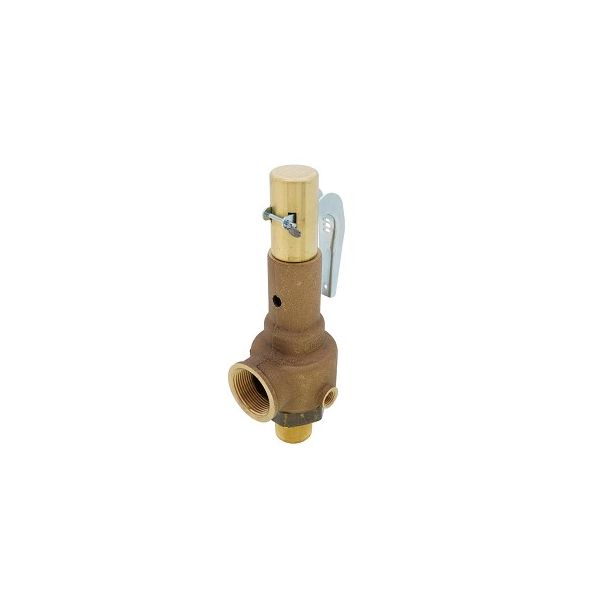

The Conbraco Industries 19-KFEA-150 Steam Relief Valve is used in HVAC systems. This valve has a flow rate of 2585 PPH and the pressure is 150 PSI and has connections of 1” MNPT and 1-1/4” FEM NPT. This opens its door when the pressure goes to limit to ensure that there is adequate reheated steam and if not the equipment will be damaged and the system becomes unstable. Originally installed in steam boilers and heating systems, the valve helps to eliminate dangers linked to overpressure and safeguard equipment.
A high-capacity safety relief valve, the Conbraco Industries 19-KFEA-150 is intended to safeguard persons and equipment against overpressure scenarios in a range of applications. A high-performance bronze safety relief valve, the Conbraco 19-KFEA-150 is made to guard against the risks of excessive pressure build-up in steam systems, sterilizers, pressure vessels, and steam boilers. With its outstanding dependability, security, and adaptability, this ASME Section I & VIII certified valve is a reliable option for a variety of commercial and industrial applications. Exceptionally effective bronze safety release valve In steam boilers, sterilizers, distillers, cookers, and pressure-reducing stations, Conbraco 19-KFEA-150 protects against overpressure. It is appropriate for a range of commercial and industrial applications due to its sturdy build and dependable operation.
Key features:
1. High Capacity:
Relieves up to 2585 pounds per hour (PPH) of steam at 150 psi. This makes it suitable for protecting large equipment and systems that generate significant amounts of pressure.
2. Adjustable Set Pressure:
Can be set to open at a specific pressure within its range (typically 15 through 300 psig for steam). This allows you to modify the valve's operation to meet the specific needs of your application.
3. Durable Construction:
Made from bronze with brass trim and a Teflon seat. Long-lasting performance is ensured by the superior resistance to corrosion and wear and tear provided by this mix of materials.
4. Compact Design:
Features 1" male NPT inlet and 1-1/4" female NPT outlet for easy installation in tight spaces. Because of this, it's a wise option for applications with restricted space.
5. Compliance:
Meets ASME Section I and VIII capacity certification standards for steam pressure relief valves. This guarantees that the valve satisfies the most stringent safety requirements and may be used with assurance.
Additional Features:
Optional stainless steel trim (19L or 19S Series) for enhanced corrosion resistance.
Available in metal and soft seat designs.
Tapped body drain facilitates condensate removal.
Wide wrenching hex for easy installation.
Benefits:
Enhanced safety: Protects personnel and equipment from overpressure incidents.
Improved reliability: Reduces downtime and maintenance costs caused by pressure-related issues.
Long lifespan: Durable construction ensures reliable operation for years to come.
Compliance: satisfies pertinent safety requirements for comfort.
Versatility: appropriate for a large number of uses.
Signs of faulty 1"x1 1/4" 150# Steam 19-KFEA-150 Conbraco Industries:
1. Leaking:
Steam or liquid leaking from the body or bonnet: This can be a sign of worn-out seals, cracks, or improper installation. A small, continuous leak might not be immediately alarming, but larger leaks or sudden bursts require immediate attention.
2. Failure to Open:
The valve doesn't open at the set pressure, allowing pressure to build beyond safe limits. This could be due to a stuck valve mechanism, clogged seat, or debris buildup.
3. Chatter or Vibrations:
Excessive chattering or vibration during operation can indicate worn-out internal components or improper sizing of the valve for the application. Accelerated wear and possible failure may result from this.
4. Physical Damage:
Visible cracks, dents, or corrosion on the valve body or bonnet can compromise its integrity and ability to function properly. Regular visual inspections are crucial for detecting such issues.
5. Unusual Sounds:
Hissing, screeching, or banging sounds coming from the valve can indicate internal problems like a damaged seat or disc, requiring further investigation.
Additional Tips:
Regularly perform maintenance 1"x1 1/4" 150# STEAM 19-KFEA-150 checks as per the manufacturer's recommendations, including visual inspections, testing the set pressure, and cleaning the valve.
To monitor the valve's functionality and spot any reoccurring problems, keep thorough records of all maintenance and repairs performed.
Never tamper with the set pressure without proper training and authorization.
