Carrier HC37VL233 1/5HP Motor 840 RPM CW 208-230V 48 Frame
Special Price $347.03 Regular Price $385.20
In stock
SKU
HC37VL233

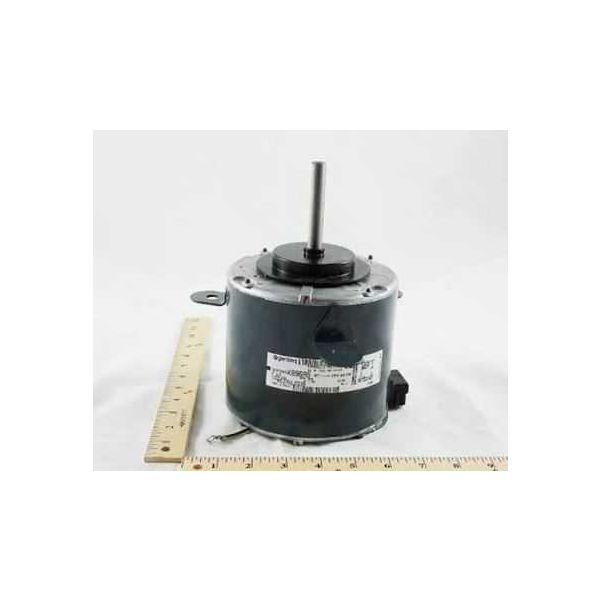

The Carrier HC37VL233 is a PSC motor with 1/5 horsepower and is built for continuous use, S1, in Carrier HVAC systems. This single-phase motor works at a voltage of 208-230V and a hertz of 60. It has a rather compact design for various applications, even though it has a rather massive build with a footprint of 7.4 x 7.4” and a height of 8.6”. Sleeve bearings and TENV motor housing make the equipment durable, besides protecting it from dust and moisture. The HC37VL233 has a full load amp draw of 1.2 amps and operates at a constant speed of 840 RPM in the clockwise direction.
Manufacturer:
Specifications
- Length: 7.4 "
- Width: 7.4 "
- Height: 8.6 "
- Bearing Type: Sleeve
- Capacitor: 5 MFD
- Frequency: 60 Hz
- Duty: Continuous (S1)
- Full Load Amps: 1.2 Amps
- Motor Enclosure: Totally Enclosed Non-Ventilated (TENV)
- Motor HP: 1/8
- Motor Type: PSC (Permanent Split Capacitor)
- NEMA Frame: 48
- Number of Phases: 1
- Protection: Automatic Reset Thermal Overload
- RPM: 840
- Rotation: Clockwise (CW)
- Shaft Diameter: 0.5 "
- Shaft Length: 3 "
- Voltage: 208-230 VAC
- Weight: 12.46lbs
