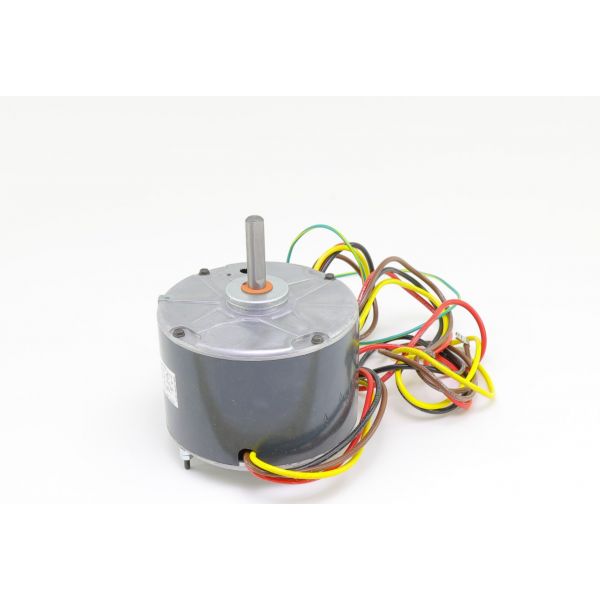

Carrier HC37VE252 Motor 1/5 HP 208/230V 1125 RPM
Special Price $400.94 Regular Price $445.04
In stock
SKU
HC37VE252
The Carrier HC37VE252 is a duty motor that is used in Carrier HVAC systems and is built for continuous use. This is a single-phase, 1/5 HP PSC motor that has been designed with a sleeve bearing and has automatic reset thermal overload protection. It is small in size, 5.7 x 6.2 x 7.3, which shows it is a compact hub, yet it is highly powerful. It uses a 208-230V, 60 Hz electricity supply and produces a clockwise rotation of 1125 RPM. Another advantage is the two-speed operation of the device that may be regulated according to the cooling requirements.
Manufacturer:
Specifications
- Length: 5.7 "
- Width: 6.2 "
- Height: 7.3 "
- Bearing Type: Sleeve
- Capacitor: 7.5 MFD
- Frequency: 60 Hz
- Duty: Continuous (S1)
- Full Load Amps: 1 Amp
- Motor HP: 1/5 HP
- Motor Type: PSC (Permanent Split Capacitor)
- NEMA Frame: 48
- Number of Speeds: 2
- Number of Phases: 1
- Protection: Automatic Reset Thermal Overload
- RPM: 1125
- Rotation: Clockwise (CW)
- Shaft Diameter: 0.5 "
- Shaft Length: 2 "
- Voltage: 208V-230V
- Weight: 10.34lbs
