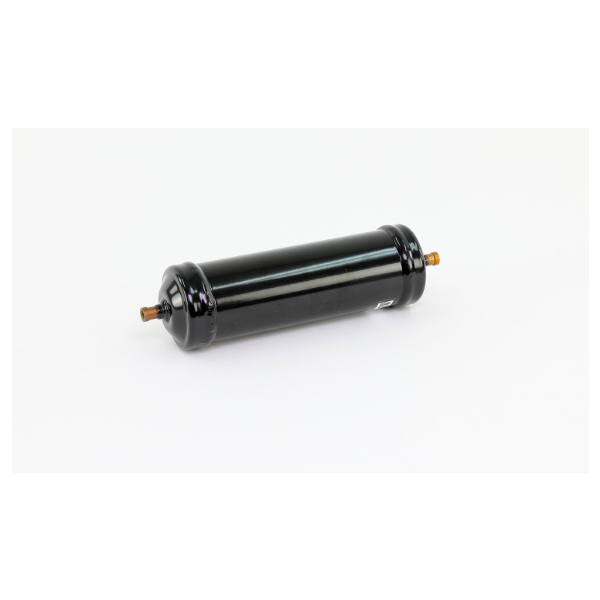

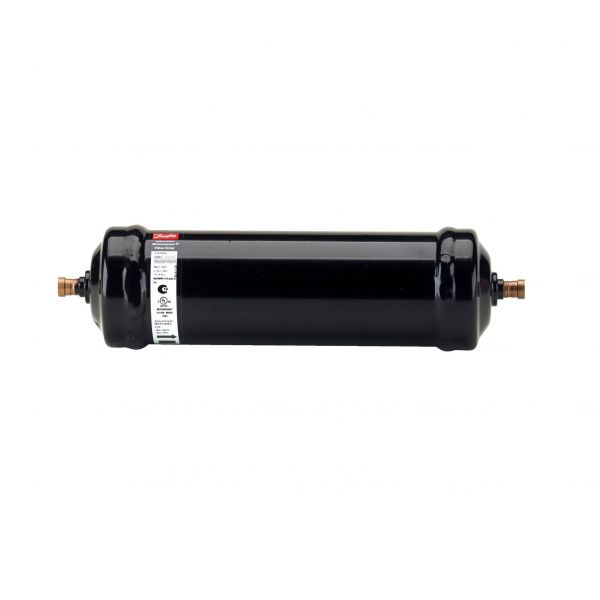

Danfoss 023Z7022 Hermetic Filter Drier 1/4" SWT 20" Cu

Special Price $67.63 Regular Price $77.77
Out of stock
SKU
023Z7022
The Danfoss 023Z7022 Hermetic Filter Drier is a essential product for achieving the better performance of HVAC systems. This filter drier features a steel construction and steel copper switches while the connection is made by solder 1/4 ”ODF for a secure and efficient connection. It has a 20 cubic inches core which provides for sufficient capacity for moisture and pollutants to be held by the material. This hermetic filter drier works by removing such contaminants as pollutants and moisture from the refrigerant so as not to harm various parts of the refrigeration system such as the compressors and the expansion valves. It is necessary for air conditioning and refrigeration application where correct flow of refrigerant is crucial for effectiveness of the system.
https://www.partshnc.com/media/catalog/product/0/2/023z7022.jpg

Specifications

  • Body material: Steel
  • Connection material: Steel Cu-plated
  • Core Size code: 20"Cu
  • Connection size: 1/4"
  • Connection type: Solder, ODF
  • Type:Hermetic Filter Drier
  • Weight: 1.7 lbs
Manufacturer Name: Danfoss
Product Number: 023Z7022
OEM Part Number: 023Z7022
Product Description: 1/4"Swt Filter Drier 20Cb"
Weight:1.7lbs/771.11g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Write Your Own Review
You're reviewing:Danfoss 023Z7022 Hermetic Filter Drier 1/4" SWT 20" Cu
Your Rating
Customer Questions
What maintenance is required for the Danfoss 023Z7022 Hermetic Filter Drier?

The hermetic filter drier should be inspected regularly for moisture saturation and pressure drop. Replace if contamination is detected to ensure efficient system protection. regular checks prevent refrigerant flow issues and maintain system accuracy.

What are common issues with the Danfoss 023Z7022 Hermetic Filter Drier?

  • Moisture saturation causing reduced efficiency.
  • Pressure drop due to clogging or contamination.
  • Refrigerant flow restriction affecting cooling performance.
  • Internal blockage or filter drier saturation failure.
  • System overheating due to restricted refrigerant circulation.
  • Reduced drying capacity leading to ice formation risk.

Installation Steps

Step 1: Recover refrigerant and isolate power for safety.

Step 2: Cut tubing at correct section; remove old drier.

Step 3: Deburr and clean lines thoroughly.

Step 4: Install new filter drier in flow direction arrow.

Step 5: Braze connections using nitrogen purge.

Step 6: Leak test, evacuate system, and recharge refrigerant.
