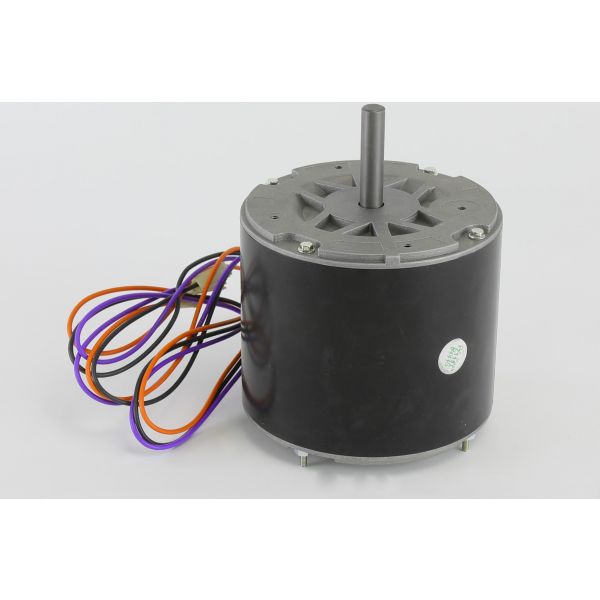

Lennox 25W15 1-Phase Condenser Fan Motor 1/4 HP 825 RPM 460V
Special Price $427.18 Regular Price $474.17
In stock
SKU
25W15
The Lennox 25W15 1-Phase Condenser Fan Motor is a high quality part that is meant to increase the effectiveness of heating and cooling systems. This motor boasts of a power rating of 1/4 HP and which runs at 825 RPM for proper airflow management. The motor comes with a shaft length of 2 inches and has a frame size of 48 and has vertical stud for its mounting. The motor is often applied in condenser units through which heat exchange occurs when turning on the fan that blows hot air from the system.
Manufacturer:
Specifications
- Measure: Units
- Power: 1/4 HP
- Phase: 1
- Shaft Length: 2 Inch
- Motor Type: PSC
- Speed: 825 RPM
- Number of Speeds: 1
- Frame Size: 48
- Motor Mounting Position: Vertical
- Motor Mounting Type: Stud
- Voltage: 460V
- Shaft Size: 0.5 x 2.5 Inch
- Capacitor Value: 5µF 370VAC
- Rotation: CCW
- Bearing Type: Sleeve
- Size: 12.5 x 10.5 x 9.125 Inch
- Weight: 15.21lbs
