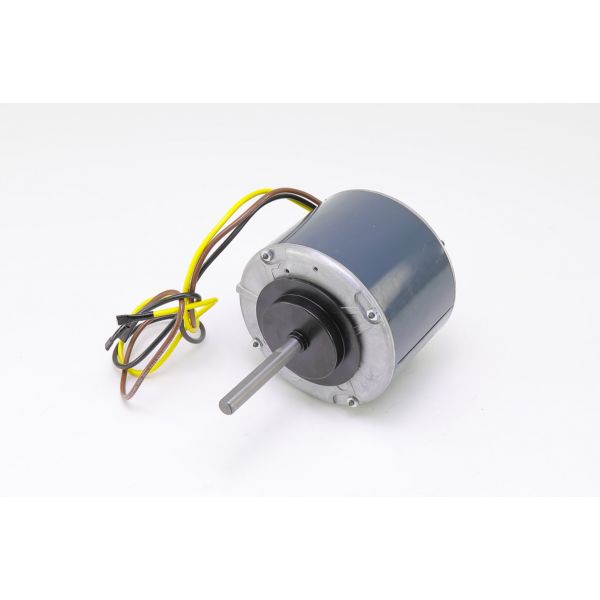

Carrier HC39AE230 Motor 1/4 HP 208-230V 1Phase 1650 RPM
Special Price $369.41 Regular Price $410.04
In stock
SKU
HC39AE230
Carrier HC39AE230 is a 1/4 HP single phase PSC motor that is used for constant use or S1 in the Carrier HVAC systems. This portable motor is 6 x 6 x 8.4 inches in dimension; it has a sleeve bearing system. It works in a voltage range of 208–230V, 60Hz and it takes a maximum current of 1.4A. The PSC motor uses a 5 MFD capacitor for starting torque and efficiency. There is also an advantage of incorporating an automatic reset thermal overload that protects the motor against high temperatures.
Manufacturer:
Specifications
- Length: 6 "
- Width: 6 "
- Height: 8.4 "
- Bearing Type: Sleeve
- Capacitor: 5 MFD
- Frequency: 60 Hz
- Duty: Continuous (S1)
- Full Load Amps: 1.4 Amps
- Motor Enclosure: Totally Enclosed Non-Ventilated (TENV)
- Motor HP: 1/4
- Motor Type: PSC (Permanent Split Capacitor)
- NEMA Frame: 48
- Number of Phases: 1
- Protection: Automatic Reset Thermal Overload
- RPM: 1650
- Rotation: Counter Clockwise (CCW)
- Shaft Diameter: 0.5 "
- Shaft Length: 3.5 "
- Voltage: 208V-230V
- Weight: 9.95lbs
