Lennox 52M02 Condenser Motor 1/3HP 208/230V
Special Price $220.40 Regular Price $244.64
Out of stock
SKU
52M02

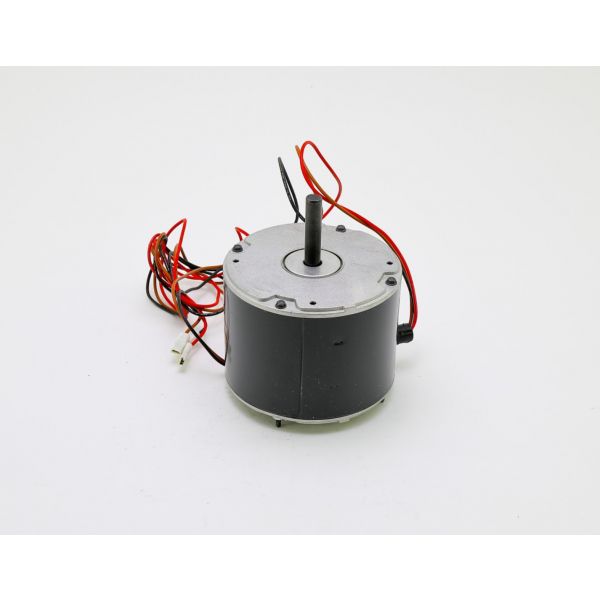

The Lennox 52M02 Condenser Motor is an essential component that you need to have in case of a replacement of your Lennox air conditioning system. This is a single-speed PSC motor with 1/3 horsepower that is suitable for vertical stud mount and is 208-230 volts. The 2" shaft rotates in the CWLE direction at 1075 RPM through a sleeve bearing. This motor is used to turn the condenser fan and enable free air flow through the outdoor unit thus enabling heat exchange and bettercooling. It is a perfect replacement for a worn-out condenser motor to make your air conditioner run smoothly, efficiently, and keep your home cool.
Manufacturer:
Specifications
- Measure: Units
- Horsepower: 1/3 HP
- Length of Shaft: 2 Inch
- Type of Motor: PSC
- RPM: 1075 RPM
- Number of Speeds: 1 Speed
- Frame Size: 48
- Position of Motor Mounting: Vertical
- Type of Motor Mounting: Stud
- Voltage: 208-230V
- Shaft Size: 1/2 Inch x 2.25 Inch
- Capacitor Value: 7.5 MFD 370 VAC
- Rotation: CWLE
- Type of Bearing: Sleeve
- Number of Phases: 1 Phase
- Frequency: 60Hz
- Weight: 12.28lbs
