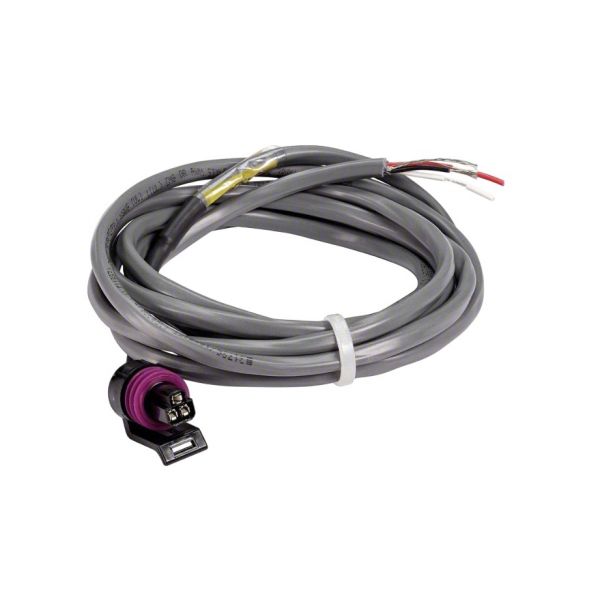

main product photo

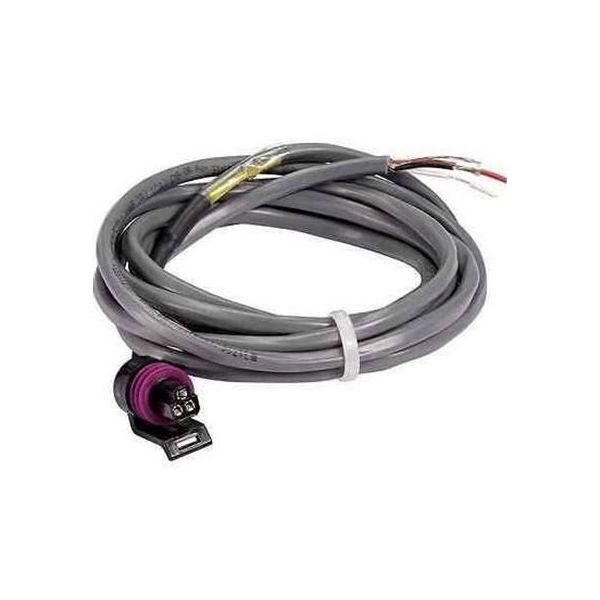

Johnson Controls WHA-PKD3-400C Wiring Harness 13' P499

Be the first to review this product
Special Price $35.95 Regular Price $46.74
In stock
SKU
WHA-PKD3-400C
The Johnson Controls WHA-PKD3-400C Wiring Harness is an essential part meant for use in making electrical connections within HVAC systems. This 13-foot harness provides consistent power connection because of its construction and is compatible with the P499 Series Pressure Transducers only. It functions by ensuring that electrical signals of proficient nature from the transducers to the control units or vice versa are conducted safely to improve pressure measurement, especially in HVAC systems. This harness is suitable for use within a temperature of 10°C to 50°C and a voltage of 400V at 50/60Hz and supports 3-phase power with a current of 125A.
Add to Wish List
HVAC Controls & Electrical, Wire Harnesses
Manufacturer:
https://www.partshnc.com/media/catalog/product/w/h/wha-pkd3-400c.jpg

Specifications

  • Range of Temperature: 10°C to 50°F
  • Voltage: 400V
  • Frequency: 50/60Hz
  • Phase: 3 Phase
  • Current Rating: 125A
  • Mounting: Wall-mounted
  • Weight: 0.37 Lbs
Manufacturer Name: Johnson Controls
Product Number: WHA-PKD3-400C
OEM Part Number: WHA-PKD3-400C
Product Description: 13Ft Wiring Harness For P499
Weight:0.37lbs/167.83g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Johnson Controls WHA-PKD3-400C Wiring Harness 13' P499
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Johnson Controls WHA-PKD3-400C Wiring Harness?

Regularly inspect the wiring harness for signs of wear, fraying, or insulation damage. Ensure all connections are tight and free from corrosion. Keep the harness clean and protected from moisture or extreme temperatures. Proper maintenance can ensure accurate electrical connectivity and prevent system malfunctions.

What are common issues with the Johnson Controls WHA-PKD3-400C Wiring Harness?

  • Loose or poor electrical connections.
  • Insulation wear or cracking.
  • Signal interruption or inconsistent connectivity.
  • Corrosion at connector points.

Installation Steps

Step 1: Disconnect power to the connected equipment before starting installation.

Step 2: Route the wiring harness along the designated path, avoiding sharp edges and heat sources.

Step 3: Connect each harness plug firmly to the matching terminals on the control and sensor.

Step 4: Secure the harness using cable ties or clips to prevent movement or strain.

Step 5: Verify all connections are tight and properly aligned.

Step 6: Restore power and test the system for correct operation.
