Trane MOT2690 1/20HP Inducer Motor 115V 1.5A

Special Price $796.06 Regular Price $883.63
Out of stock
SKU
MOT2690

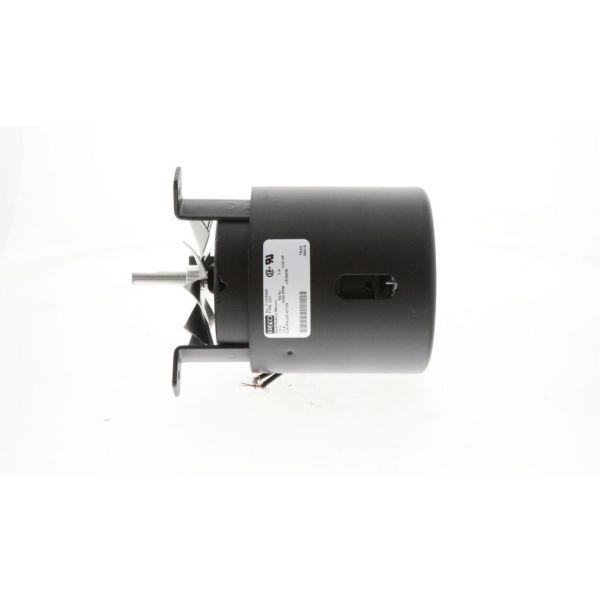

The Trane MOT2690 is an Inducer Motor, which is a component used in most of the Trane gas furnaces. The principle function is to supply primary air to start the combustion process. This is then mixed with natural gas and ignited to produce heat. If the motor is not working the furnace cannot properly vent the combustion gases or draw the proper amount of air needed for proper operation. This is an electric motor that has a small form factor to allow easy installation in a Trane furnace.
Manufacturer:
https://www.partshnc.com/media/catalog/product/M/O/MOT2690_trane_partshnc.jpg

Specifications

  • Length: 8.1"
  • Weight: 5.25lbs
  • Voltage
  • 115V
  • Horsepower: 1/20 HP
  • Amperage: 1.5 AMP
  • RPM: 3000

Heating units use inducer assemblies to establish the draft pathway for moving combustion gases through the venting system. The OEM Trane MOT2690 is an Inducer Motor that provides rotational drive to its connected inducer assembly. The motor's shaft turns the inducer component, enabling it to move air and combustion gases through the designated venting path. Its role supports the draft movement required as part of the heating unit's combustion venting process.

INDUCER MOTOR OPERATION:
Electrical energy is converted into mechanical rotation through electromagnetic action within the motor. This rotation turns the motor shaft and drives the connected inducer component. The resulting mechanical movement allows the inducer assembly to create the airflow needed to move combustion gases through the designated pathway during operation.

MOTOR ELECTRICAL RATINGS:
The motor is rated for 115V operation with a stated current requirement of 1.5A. Its 1/20 HP rating identifies the specified mechanical power capability of the motor. These electrical and power characteristics define the operating configuration of the MOT2690.

REPLACEMENT GUIDELINES:
Replacement may be appropriate when the MOT2690 inducer motor fails to provide the rotation required by the connected inducer assembly or when motor operation becomes inconsistent during a heating cycle. Before ordering a replacement, compare the existing part number with the applicable equipment requirements and verified motor specifications.

COMMON FAILURE SYMPTOMS:

  • The inducer motor fails to start.
  • The motor stops unexpectedly during operation.
  • Unusual motor noise or vibration occurs.
  • Inducer operation becomes intermittent.
  • The heating unit does not complete its normal operating sequence.

EQUIPMENT COMPATIBILITY:
The Trane Inducer Motor should be matched to heating equipment requiring the applicable inducer motor configuration. Confirm compatibility using the equipment's specified parts information and the requirements for its inducer assembly. Trane brand matching alone does not establish compatibility with every Trane heating unit.

TECHNICAL SPECIFICATIONS:
Part Identification:
Brand: Trane
Part Number: MOT2690
Product Type: Inducer Motor
Electrical Specifications:
Voltage: 115V
Current: 1.5A
Mechanical Specifications:
Horsepower: 1/20HP

Write Your Own Review
You're reviewing:Trane MOT2690 1/20HP Inducer Motor 115V 1.5A
Your Rating
Customer Questions
What is the Trane MOT2690 Inducer Motor?

The Trane MOT2690 is an Inducer Motor that provides rotational drive to a connected inducer assembly.

Can the MOT2690 replace another inducer motor?

It can be used as a replacement only when the applicable equipment requires the same motor and part configuration.

Is the Trane MOT2690 compatible with my heating unit?

Compatibility depends on the equipment's specified inducer motor requirements. Confirm the applicable equipment information before purchase.

Which equipment information should I check to confirm MOT2690 fitment?

Compare the complete equipment model and existing inducer motor part number with the applicable Trane parts documentation. This helps establish whether MOT2690 is specified for the intended unit.

What should I do if my inducer motor is showing operating problems?

Identify the source of the problem before replacing the motor, since related components or system conditions can produce similar symptoms.
