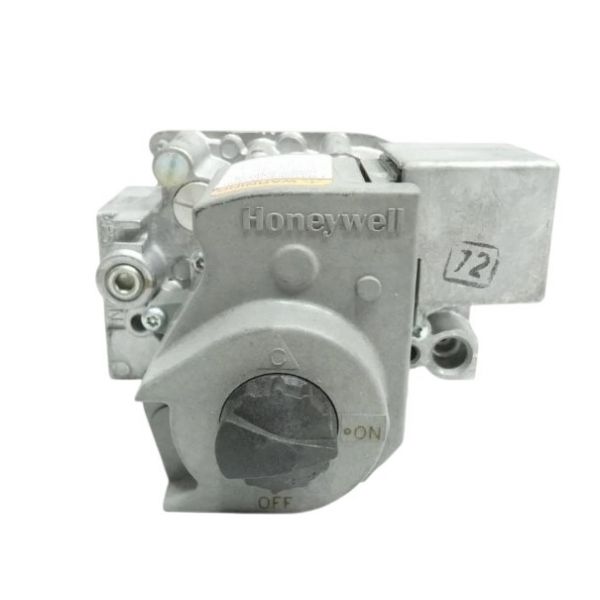

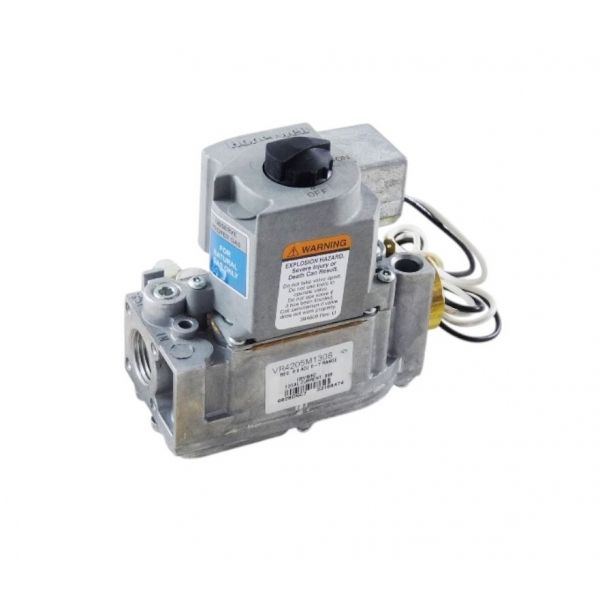

Honeywell VR4205M1308 1/2" Combination Natural Gas Valve 120V

Special Price $214.06 Regular Price $237.61
In stock
SKU
VR4205M1308
The Honeywell VR4205M1308 Combination Natural Gas Valve designed to provide a safe and accurate flow of gas to heating systems. Specifically for natural gas, it has a 120V powered with a 1/2” connection. This valve control the pressure of gas and has an in-built mechanism to shut-off gas supply for safety and efficiency. It is easily used in furnaces, boilers, and other HVAC equipment. It is suitable for use in residential and light commercial applications since it provides steady heating while minimizing energy loss.
Manufacturer:
https://www.partshnc.com/media/catalog/product/v/r/vr4205m1308.jpg

Specifications

  • Type: Gas Valve
  • Fuel Type: Natural Gas
  • Connection Size: 1/2"
  • Voltage: 120V

Product Overview:
Functioning as a fuel control component within gas-fired heating equipment, the Honeywell VR4205M1308 manages natural gas delivery within the equipment gas train. This combination gas valve integrates fuel-flow control with gas shutoff functions for applicable heating systems. The assembly features a 1/2" connection size and is specified for operation with a 120V control supply in compatible natural gas applications.

Gas Valve Control:
The combination gas valve controls natural gas passage through its internal valve mechanism in response to the equipment's control sequence. During an operating demand, the valve permits gas flow through the gas train as required by the heating system. When the control sequence ends, the valve provides the corresponding gas shutoff function to stop fuel passage.

Electrical Valve Operation:
Installed within the equipment's gas supply path, the valve connects the natural gas supply to the burner fuel circuit. Its combination-valve configuration integrates gas-flow control and shutoff within a single assembly. The valve responds to the equipment's control sequence to regulate fuel passage and coordinate gas delivery with burner operation.

Replacement Guidelines:
Replacement may be appropriate when the gas valve shows physical deterioration, develops leakage, or exhibits a condition that prevents proper operation. For the Honeywell VR4205M1308, indicators may include a damaged valve body, compromised connection points, persistent gas leakage, or other physical conditions affecting the component. Selection should be based on matching the existing valve identification with the equipment's specified requirements.

Common Failure Symptoms:

  • Main burner fails to ignite during an active heating cycle
  • Intermittent gas delivery during equipment operation
  • Gas flow does not respond correctly to the system control sequence
  • Gas flow continues after the heating demand ends
  • Visible physical damage to the valve body
  • Gas leakage detected around the valve or connection points.

Equipment Compatibility:
The Honeywell VR4205M1308 is specified as a 1/2" combination natural gas valve with a 120V operating specification. Before selecting a replacement, verify the equipment model, existing gas valve part number, natural gas requirement, connection size, and control voltage against the applicable equipment documentation.

Technical Specifications:
Brand: Honeywell
Part Number: VR4205M1308
Product Type: Combination Natural Gas Valve
Fuel Type: Natural Gas
Connection Size: 1/2"
Control Voltage: 120V

Write Your Own Review
You're reviewing:Honeywell VR4205M1308 1/2" Combination Natural Gas Valve 120V
Your Rating
Customer Questions
What maintenance is required for the Honeywell VR4205M1308 Combination Natural Gas Valve?

Regularly inspect the valve for leaks, corrosion, and proper operation. Clean any debris from the gas inlet and ensure electrical connections are secure. Proper maintenance ensures safe and reliable gas flow. Always shut off gas supply and power before servicing.

What are common issues with the Honeywell VR4205M1308 Combination Natural Gas Valve?

  • Valve failing to open or close properly.
  • Gas leaks at seals or connections.
  • Electrical connection faults.
  • Erratic or inconsistent gas flow.
  • Sticking or slow-moving internal components.

What does the Honeywell VR4205M1308 combination gas valve do in heating equipment?

The Honeywell VR4205M1308 controls natural gas flow within the heating equipment's gas train and provides the required shutoff function.

Where is the Honeywell VR4205M1308 combination gas valve used?

A combination gas valve is used in gas-fired heating equipment where fuel-flow control and shutoff functions are managed within the gas supply system.

How does the VR4205M1308 control gas through the fuel pathway?

The combination gas valve uses an internal valve mechanism to control the passage of gas through the equipment's fuel pathway.

What does the combination configuration provide in the VR4205M1308?

The combination configuration incorporates gas-flow control and shutoff functions into the same valve assembly.

What maintenance considerations apply to the VR4205M1308 gas valve?

The gas valve should be checked as part of appropriate heating-equipment service to identify conditions that could affect gas-flow control or shutoff operation. Follow the equipment manufacturer's servicing requirements for specific inspection and maintenance procedures.

Installation Steps

Step 1: Turn off gas supply and power to the appliance to ensure safety.

Step 2: Remove the old gas valve and label all connections.

Step 3: Install the new combination gas valve in line with proper flow direction.

Step 4: Tighten all gas fittings securely to prevent leaks.

Step 5: Connect the wiring according to the system diagram.

Step 6: Restore gas and power, then test for proper operation and safe ignition.
