The Conbraco Industries 10-616-15 Safety Relief Valve is a heavy duty safety part that is used to prevent overpressure conditions in HVAC system applications. This valve has a heat rating of 55,350,000 BTU and can handle pressure up to 75 PSI, and is suitable for use in steam boilers, pressure vessels and piping systems. Its FEM NPT connections are 1.25” x 1.5” which makes it convenient to be used into existing systems. The valve works in a way that it self-acts by opening and discharging pressure that is more than the normal working pressure to prevent damage to equipment.

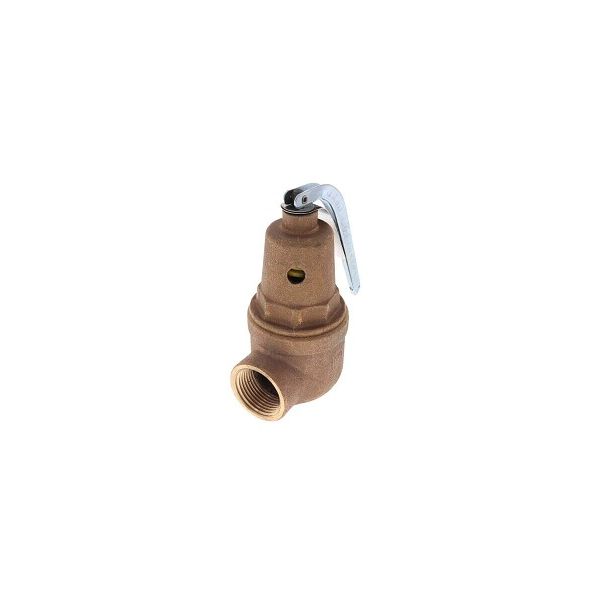

Conbraco Industries10-616-15 Hot Water Relief Valve
A 1-1/4" female NPT inlet x 1-1/2" female NPT outlet hot water relief valve with a 75 psi setting and a 5,535,000 BTU capacity is manufactured by Conbraco Industries and has part number 10-616-15. It acts as a safety measure to guard against overpressure scenarios in hot water heating systems. A high-performing, 200 PSI bronze safety relief valve called the Conbraco 10-616-15 is made to guard your hot water heating system against the risks associated with an excessive build-up of pressure. This ASME Section IV-certified valve is a reliable option for both residential and commercial applications because of its outstanding durability, dependability, and safety features.
Key features:
ASME Section IV certified: This means that the valve has been tested and certified to meet the requirements of the ASME Boiler and Pressure Vessel Code, Section IV. This code ensures that the valve is safe and reliable for use in hot water heating systems.
Bronze construction: Bronze is a durable and corrosion-resistant material that is well-suited for use in hot water systems.
1.25" x 1.5" size: This size is suitable for most residential and commercial hot water heating systems.
75 psi set pressure: This is the pressure at which the valve will open and relieve pressure from the system.
5,535,000 BTU rating: This is the maximum amount of heat that the valve can safely relieve.
Pre-set and tamper-proof: The valve is pre-set to the correct pressure and cannot be easily adjusted. This contributes to the system's safety.
Safety and Durability:
ASME Section IV Certified: satisfies tight safety requirements for pressure relief valves, guaranteeing dependable operation.
Corrosion-resistant bronze body: Withstands harsh hot water environments for extended service life.
200 PSI pressure setting: Protects systems from exceeding 200 pounds per square inch (psi) of pressure.
Diaphragm-isolated spring chamber: Delivers consistent and accurate pressure relief for dependable protection.
Performance and Capacity:
High capacity: Reliably relieves excess pressure even in demanding situations, safeguarding your system.
Standard NPT connections: 1-1/4" female NPT inlet and 1-1/2" female NPT outlet for compatibility with existing plumbing.
Made in the USA: Ensures quality and reliable manufacturing practices.
Benefits:
Enhanced Safety:
Protects against dangerous overpressure: This valve safeguards your hot water heating system from exceeding its pressure limit, preventing potential ruptures, leaks, and damage to your property and equipment.
ASME Section IV certified: satisfies strict safety requirements, guaranteeing its dependability and effectiveness in urgent circumstances.
Automatic reseat: Once pressure drops, the valve automatically closes, preventing unnecessary water loss and maintaining system integrity.
Reliable Performance:
Consistent and accurate pressure relief: The diaphragm-isolated spring chamber design ensures precise pressure actuation, protecting your system from both under and over-pressurization.
High capacity: Handles even demanding hot water systems, effectively releasing excess pressure and preventing overheating.
Durable construction: The corrosion-resistant bronze body and brass/stainless steel internals resist wear and tear, ensuring long-lasting operation.
Convenience and Cost-Effectiveness:
Easy installation: Standard NPT connections allow for seamless integration into existing plumbing systems.
Low maintenance: Designed for reliable performance with minimal maintenance requirements.
Peace of mind: Knowing your system is protected against excessive pressure provides peace of mind and helps prevent costly repairs and replacements.
Additional benefits:
Adjustable blow-off ring (in some models): Allows for fine-tuning the pressure at which the valve opens for specific system needs.
Made in the USA: Backed by quality and reliable manufacturing practices.
Additional Features:
Adjustable blow-off ring: Allows for fine-tuning the pressure at which the valve opens for specific system requirements. (Check specific product details for adjustability range)
Automatic reseat: Once pressure drops below the setpoint, the valve automatically closes, preventing unnecessary water loss.
Brass and stainless steel internal components: Enhance durability and resist corrosion for long-lasting operation.
Signs of faulty Hot Water Relief Valve 10-616-15 Conbraco Industries:
Corrosion: If you see signs of corrosion on the valve body, it is a sign that the valve is not working properly and may not be able to withstand pressure. Corrosion can weaken the valve body and increase its vulnerability to failure.
Unusual noises: If you hear hissing or other unusual noises coming from the valve, it is a sign that there is a problem with the valve. Numerous factors, like a damaged seal or a loose component, could be the source of this.
Leaking water: If you see water leaking from the valve, it is a sign that the valve is not sealing properly and is not relieving pressure as it should. This could be due to several reasons, such as debris in the valve, a worn-out seal, or a damaged valve body.
Boiler overheating: If your boiler is overheating, it could be a sign that the safety relief valve is not opening to relieve pressure. This could be due to several reasons, such as a stuck valve, a plugged inlet, or a set pressure that is too high.
Frequent cycling of the pressure relief valve: If the pressure relief valve is opening and closing frequently, it could be a sign that the system pressure is fluctuating too much. This could be due to several reasons, such as a faulty expansion tank, a leak in the system, or a malfunctioning boiler control.
