The Conbraco Industries 10-616-12 Safety Relief Valve is essential for HVAC systems to manage pressure. It has a heating capability of 45,96,000 BTU and a pressure of 60 PSI, which makes it designed to guard equipment against overpressure conditions. It has a 1.25” X 1.5” FEM NPT port to enable the valve to be used in different systems such as boilers and refrigeration systems. A sustained and high level of pressure in the system is managed through the valve since it can open and expel the pressure when it reaches or is approximated to the dangerous levels of the system and may lead to some level of damage or failure.

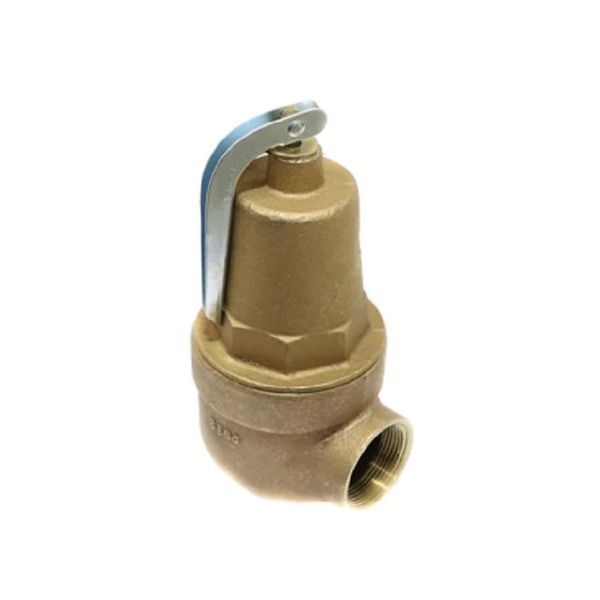

Conbraco Industries 10-616-12 Hot Water Relief Valve
A 1-1/4" female NPT inlet x 1-1/2" female NPT outlet hot water relief valve with a setting of 60 psi and a capacity of 4,596,000 Btu is referred to as the Conbraco Industries 10-616-12. This ASME Section IV-approved safety relief valve is intended to guard against overpressure in hot water heating boilers, systems, and related equipment. The ASME Section IV-approved bronze safety relief valve Conbraco 10-616-12 is made to prevent excessive pressure build-up in hot water heating boilers, systems, and related equipment. The pre-set pressure range is 15 to 160 psig (1 to 11 bar) at a maximum temperature of 250°F (121°C). With a high capacity of 4,596,000 BTU, it may be used in a range of commercial and residential.
Key features:
1-1/4" female NPT inlet x 1-1/2" female NPT outlet: This refers to the pipe thread size and type of the valve's inlet and outlet connections. NPT stands for National Pipe Thread, and female threads mean the valve has internal threads for screwing onto male pipe ends.
Hot water relief valve: This indicates the valve's primary function, which is to relieve excess pressure and prevent overpressure situations in hot water heating systems.
60 psi pressure setting: This is the factory preset pressure at which the valve will open and start relieving pressure. It can be adjusted within a range of 15-160 psig at 250°F to suit specific system requirements.
4,596,000 Btu capacity: This refers to the maximum heat output (in British thermal units per hour) that the valve can handle before needing to relieve pressure. It is therefore suitable for use with a range of boiler sizes and heating loads.
ASME Section IV certified: This certification signifies that the valve meets the stringent quality and safety standards outlined in ASME Section IV for pressure relief valves used in hot water heating systems.
Bronze construction: The valve is made of durable and corrosion-resistant bronze, making it ideal for long-lasting performance in hot water environments.
Adjustable pressure setting: As previously stated, the pressure setting is tunable within a designated range to accommodate different system requirements.
Easy installation with NPT connections: The standard NPT threads allow for easy installation and connection to existing piping systems.
Suitable for a wide range of boiler sizes and heating loads: The valve's capacity and adjustable pressure setting make it suitable for various boiler sizes and heating system demands.
Benefits:
Protects against dangerous overpressure: Safeguards boilers, heaters, and other equipment from potential damage and ruptures.
Reliable performance: Delivers consistent and dependable pressure relief.
Durable construction: constructed with materials resistant to corrosion.
High capacity: Handles even demanding hot water systems.
Easy installation: Standard NPT connections ensure compatibility with existing plumbing.
Wide range of applications: Appropriate for various hot water systems in residences and commercial buildings.
Applications:
Residential and commercial hot water boilers
Hydronic heating systems
Solar hot water systems
Heat pumps with integrated boilers
Industrial hot water equipment
Additional Information:
Consult the Conbraco website or a qualified HVAC technician for specific sizing and installation requirements.
This is a pressure relief valve only and not intended to regulate system pressure.
For information on correct installation, use, and maintenance, consult the manufacturer's instructions.
Signs of faulty Hot Water Relief Valve 10-616-12 Conbraco Industries:
Leaks:
Water leakage around the valve stem: This could be due to worn-out seals or a damaged valve stem, allowing water to escape even when the valve is closed.
Leaking from the outlet port: This might indicate excessive pressure buildup in the system, causing the valve to release even when it shouldn't, or a malfunction in the valve itself.
Unusual sounds:
Chattering or hissing noises: These sounds could be caused by the valve fluttering open and closed repeatedly due to worn-out components or debris blocking the valve seat.
Loud banging or popping noises: These might indicate a sudden release of pressure due to a stuck valve or a system malfunction.
Performance issues:
Boiler overheating: If the valve isn't relieving pressure properly, the boiler could overheat due to a lack of pressure release.
System pressure fluctuations: Erratic pressure changes in the hot water system might indicate a malfunctioning valve that's not regulating pressure effectively.
Frequent activation of the pressure relief valve: If the valve activates more frequently than usual, it could be a sign of excessive pressure buildup or a faulty valve that's releasing even at normal pressures.
Visual problems:
Physical damage: Visible cracks, corrosion, or deformation on the valve body or bonnet could indicate structural issues compromising its functionality.
Stuck or stiff valve stem: If the valve stem feels difficult to move manually, it might be stuck due to corrosion or debris, preventing it from opening or closing properly.
Additional points:
Remember the last time the Hot Water Relief Valve 10-616-12 was inspected or serviced. Frequent inspections and maintenance are essential for seeing possible problems early on.
Think about the valve's age. Older valves might be more prone to wear and tear, increasing the likelihood of faults.
Should you suspect a problem with your hot water relief valve, always get advice from a licensed plumber or heating professional. They can recognize the issue and offer the required remedies or cures.
