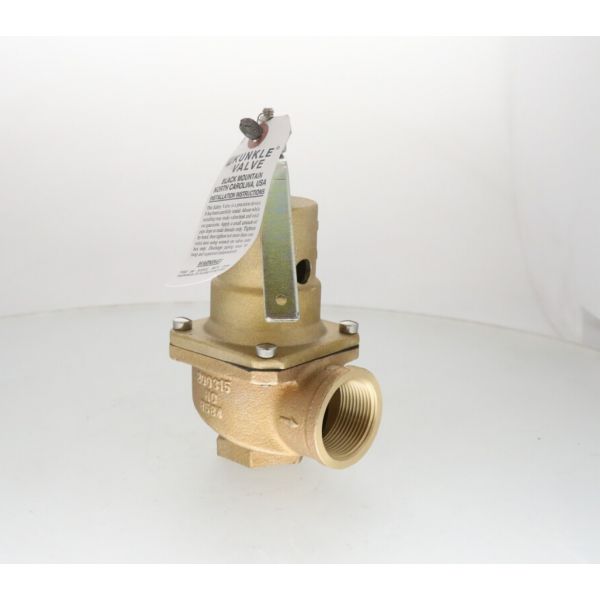

The 0537-E01-HM0030 Kunkle Valve, is a 1-inch, 30-psi pressure relief valve designed for steam and hot water applications. It features a bronze body for durability and corrosion resistance, and a direct spring design that automatically opens to release excess pressure when it reaches a set point. This safety feature helps protect boilers, heat exchangers, and other HVAC equipment from damage caused by overpressure. The The 0537-E01-HM0030 Kunkle Valve pressure valve top-guided disc assembly ensures tight sealing and prevents leaks, while the isolating diaphragm protects the spring from the harsh steam environment. Additionally, the pivot design between the disc and spring enhances sensitivity and response time. This Kunkle valve is commonly used in various HVAC equipment, including boilers, water heaters, and autoclaves. Its key benefits include reliable pressure relief, extended equipment life, and improved safety within the system. By automatically regulating pressure, it prevents costly breakdowns and accidents, making it a crucial component for ensuring the smooth and safe operation of your HVAC system.
The Kunkle Valve 0537-E01-HM0030, represents a robust 1" x 1-1/4" steam relief valve designed for optimal safety in high-pressure environments. Engineered with precision, this valve ensures a reliable release mechanism with a pressure setting of 30 PSI, making it a crucial component for steam applications. Crafted from durable bronze, it not only guarantees longevity but also adheres to the stringent ASME Section IV standards, particularly catering to hot water boilers. Notably, this valve holds the prestigious National Board certification, underscoring its compliance with industry-leading safety measures. The Kunkle Valve steam relief valve stands as a testament to quality and reliability in safeguarding steam systems.
Key features:
Extra heavy construction for long life
Top guided disc assembly with resilient seal in seating area for tight shutoff
Isolating diaphragm to protect the spring from the process fluid
Pivot between disc and spring for smooth operation
Set pressure of 30 PSI
Signs of a Faulty Kunkle Valve Steam Relief Valve
Visual Signs:
Leaking: Visible signs of water or steam leaking from the valve body, cap, or connections.
Corrosion: Excessive rust, pitting, or corrosion on the valve's exterior, indicating potential internal damage.
Damage: Physical damage to the valve body, cap, or lever, which could compromise its function.
Operational Signs:
Failing to Open: The valve doesn't release pressure at its set point (30 PSI), even when the system pressure exceeds it.
Opening Prematurely: The valve releases pressure below its set point, indicating a weak or damaged spring.
Chattering: The valve rapidly opens and closes repeatedly, creating a chattering or vibrating sound. This suggests potential debris, worn parts, or spring issues.
Leaking Upon Closure: The valve continues to leak even after the system pressure drops below its set point.
Pressure Gauge Indications:
Erratic Readings: The pressure gauge connected to the valve shows sudden fluctuations or inconsistent readings.
No Pressure Relief: The pressure gauge doesn't show any decrease in pressure, even when the valve is supposed to open.
Additional Considerations:
Excessive Noise: Unusual sounds like popping, banging, or hissing from the valve area.
System Malfunctions: Unexplained issues in the boiler or steam system, such as loss of pressure or overheating, which could point to a faulty valve.
