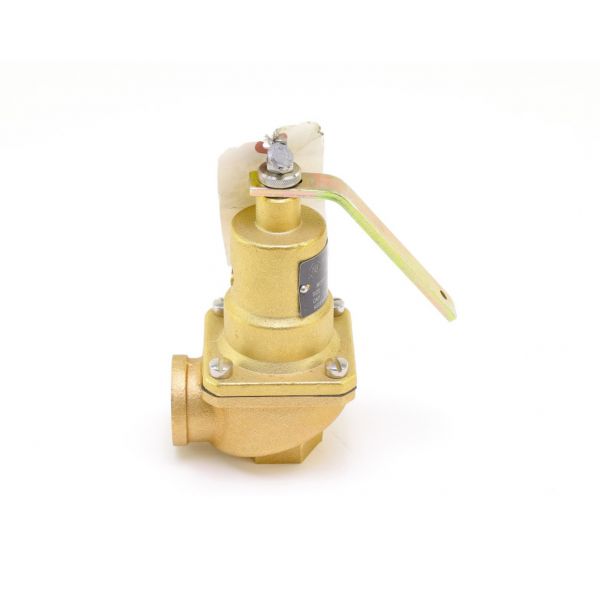

The Kunkle Valve 0537-D01-AHM0030 is a 3/4" female NPT inlet by 1" female NPT outlet, 30 psi pressure relief valve. It safeguards hot water boilers and similar HVAC equipment by automatically releasing excess pressure beyond its set limit. Imagine it as a safety pop-off valve, preventing dangerous buildups that could damage the system or even cause an explosion. Its bronze body and B584 alloy 8440 seat ensure durability, while the stainless steel spring maintains consistent performance. This valve boasts a high capacity of 1054 lb/hr (1054,304 BTU/hr), making it suitable for various boiler applications. Upgrading to this 0537-D01-AHM0030 Kunkle Valve pressure relief valve offers peace of mind and protection for your valuable HVAC equipment, extending its lifespan and preventing costly breakdowns.
The Kunkle Valve 0537-D01-AHM0030, epitomizes reliability and safety in pressure relief. Specifically designed for ASME Section IV Steam applications (Hot water boilers), this valve boasts a 3/4" Female NPT Inlet x 1" Female NPT Outlet configuration, ensuring seamless integration into systems. Crafted from robust bronze and featuring a B584 alloy 8440 seat combined with an SST spring, it guarantees durability and efficiency. The heavy-duty lift lever enhances operational control. With a capacity of 1054 lb/h (PPH) or 1054304 BTU/h, it surpasses industry standards. Noteworthy is its pivotal role as a safety mechanism, preventing catastrophic events by automatically releasing excess pressure when the system reaches the preset 30 psi threshold. The 0537-D01-AHM0030 Kunkle Valve Pressure Relief Valve stands as an upgraded iteration of the 0537-D01-AHM0050 valve, embodying cutting-edge engineering for optimal performance.
Key Features:
Female NPT inlet and outlet connections for easy installation
Heavy duty lift lever for easy manual operation
Bronze construction for durability and corrosion resistance
B584 alloy 8440 seat for high wear resistance
SST spring material for long-lasting performance
ASME Section IV compliant for use in steam and hot water applications
Capacity of 1054 lb/h(PPH) or 1054304 BTU/
Signs of a Faulty Kunkle Valve 0537-D01-AHM0030 Relief Valve
Leaks:
External Leaks: Visible leaks around the valve body, bonnet, or packing nut indicate a compromised seal. This can be caused by worn-out gaskets, cracks in the valve body, or improper tightening.
Internal Leaks: If the valve is constantly dripping or releasing steam from the outlet even at normal pressure, it suggests internal leakage past the valve seat. This can be due to a damaged seat, worn spring, or debris lodged under the seat.
Pressure Relief Issues:
Failure to Open at Set Pressure: If the valve doesn't open and release pressure when the system reaches the set point (30 PSI in this case), it indicates a stuck valve or insufficient spring force. This can be a serious safety hazard.
Over-Relieving Pressure: Conversely, if the valve opens and releases pressure prematurely or excessively, it suggests a weak spring, improper adjustment, or worn-out parts. This can lead to wasted energy and equipment malfunction.
