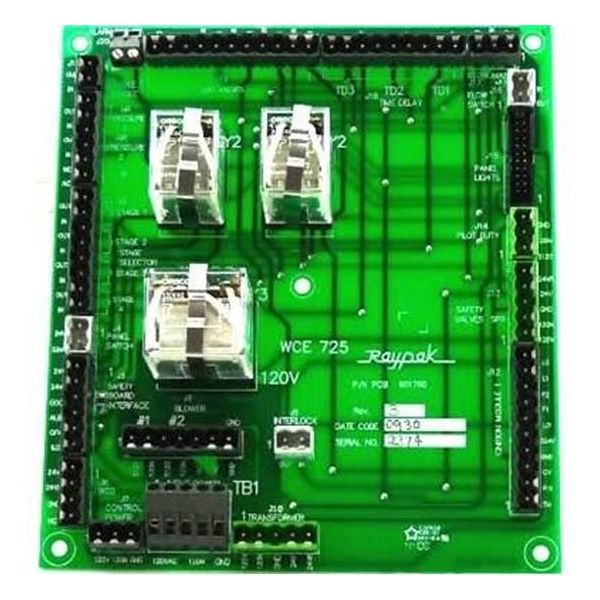

Raypak 009626F Cpw Pc Circuit Board

Special Price $761.80 Regular Price $845.60
In stock
SKU
009626F
Cpw Pc Circuit Board
Manufacturer:

Central Point Wiring Circuit Board Raypak 009626F

The Raypak 009626F is a central point wiring board (CPW) that is used in the Raypak Hi Delta line of commercial and industrial water heaters. It is a central point wiring board that is responsible for controlling the various functions of the water heater, such as ignition, combustion, and safety. The board is constructed from premium materials and is intended to survive the challenging conditions that water heaters are frequently used in.

Key Features:

Function:

  • Centralizes electrical connections: Provides a single location for connecting various electrical components within the system, like pumps, sensors, valves, and controls.
  • Simplifies wiring: Reduces the need for complex wiring arrangements and minimizes wiring errors.
  • Facilitates communication: Enables efficient communication between different components through its circuitry, ensuring coordinated operation.
  • Distributes power: Provides power distribution to various system components based on the control system's instructions.

Features:

  • Made for Raypak systems: Specifically designed and compatible with various Raypak boilers and HVAC units.
  • Durable construction: Built with high-quality materials for long-lasting performance and reliability.
  • Compact design: Fits comfortably within most Raypak system compartments.
  • Clearly labeled terminals: Easy identification of connection points for simplified wiring and troubleshooting.

Benefits:

  • Improved installation efficiency: Makes installation easier and faster due to centralized connections.
  • Reduced wiring errors: Simplifies wiring, minimizing the risk of incorrect connections and malfunctions.
  • Enhanced system performance: Enables efficient communication and power distribution, leading to optimal system operation.
  • Improved serviceability: Provides easy access to connections for troubleshooting and maintenance.

Important Notes:

  • This part is intended for use in compatible Raypak systems. Always consult the user manual and confirm compatibility before purchasing.
  • To ensure appropriate performance and safety, installation should be done by a skilled pool and spa technician.

Additional Information:

  • Raypak offers a wide range of replacement parts and technical support for their HVAC systems.
  • You can find the 009626F and other Raypak parts at authorized distributors, online retailers, or the Raypak website.

Signs of a Faulty Raypak 009626F Central Point Wiring Circuit Board:

Electrical Issues:

  • System not turning on: The entire HVAC system might not turn on at all, suggesting a lack of power supply or communication through the CPW.
  • Partial functionality: Some components like pumps, fans, or valves might not function properly, indicating potential connection issues within the board.
  • Intermittent operation: The system may turn on and off sporadically or experience temporary malfunctions, suggesting unstable communication or power distribution through the CPW.
  • Flickering lights or unusual noises: Flickering lights on the control panel or strange buzzing or clicking sounds around the unit can signify electrical issues within the CPW.

Operational Problems:

  • Error codes or messages: The control panel displays error codes or messages related to communication failures, circuit errors, or sensor malfunctions, potentially linked to the CPW.
  • Inconsistent system performance: The system might not reach the desired temperature, exhibit uneven heating or cooling, or experience frequent cycling, possibly due to communication or power distribution problems originating from the CPW.

Safety Concerns:

  • Overheating: The CPW itself or nearby components might feel warm to the touch or exhibit visible signs of overheating, indicating potential internal issues or overloaded circuits.
  • Electrical sparks or burning smells: Sparks or burning smells near the CPW are serious safety hazards and require immediate attention, suggesting electrical faults within the board.

Additional Warning Signs:

  • Increased energy consumption: Higher than usual electricity bills might point towards inefficient operation due to malfunctioning components or power distribution issues within the CPW.
  • Physical damage: Visible damage to the CPW, like burnt components, loose connections, or broken wires, can be a sign of internal faults.

Remember:

  • If you suspect any of these signs, do not attempt to diagnose or repair the 009626F Central Point Wiring Circuit Board Raypak yourself. Make quick contact with a licensed HVAC professional for an examination and possible repair.
  • Always prioritize safety when dealing with electrical components and HVAC systems. Shut off the power supply if necessary.
  • Consult the user manual or installation guide for specific troubleshooting steps and potential error code explanations related to the CPW.
