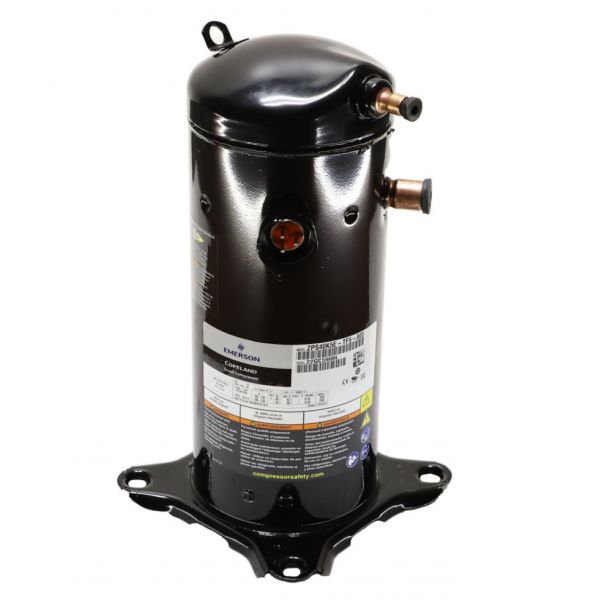

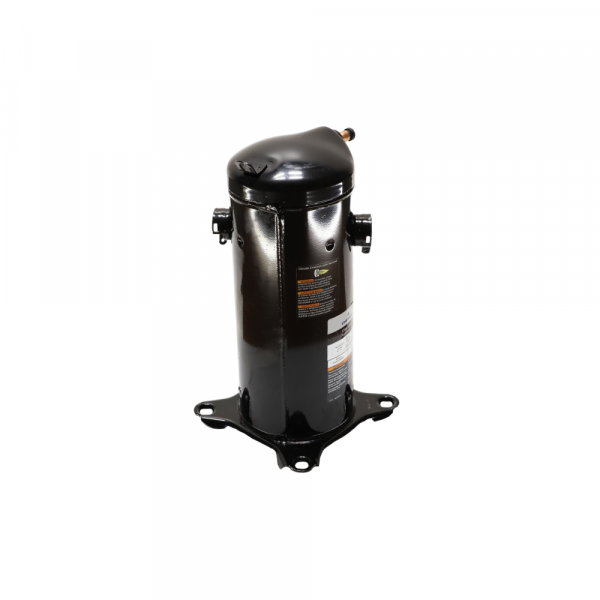

Copeland ZPS40K5E-TF5-800 Scroll Compressor 41,200BTU, R410A, 230V/3PH

Special Price $1,651.45 Regular Price $1,833.11
Out of stock
SKU
ZPS40K5E-TF5-800
The Copeland ZPS40K5E-TF5-800 is a scroll compressor designed for use in commercial air conditioning systems. A scroll compressor uses two interleaved spiral scrolls that roll against each other, drawing in refrigerant vapor at the center and squeezing it outwards to increase pressure. This compressed, high-pressure refrigerant vapor then travels to the condenser coil where it releases heat and condenses back into a liquid. This liquid refrigerant then travels to the expansion valve where its pressure is lowered, causing it to turn back into a gas and absorb heat from the surrounding air. This cool gas then travels to the evaporator coil where it cools the air that is circulated throughout the building. The ZPS40K5E-TF5-800 is a 3-phase, 230V compressor that can handle a maximum cooling capacity of 41,200 BTU. It uses environmentally friendly R410A refrigerant and has an impressive cooling efficiency rating of up to 20.8 EER. This high efficiency translates to lower operating costs.
Manufacturer:
https://www.partshnc.com/media/catalog/product/z/p/zps40k5e-tf5-800.jpg

Specifications

  • Voltage: 230V
  • Refrigerant: R410A
  • Maximum Regulatpr Capacity: 41,200BTU
  • Phase: 3PH
  • Type: Scroll Compressor
  • Weight: 85.5lbs
  • Frequency: 60 Hz
  • Suction Line: 7/8"
  • Oil Type: Polyolester
  • Temperature Range: -20°F to 55°F
  • Cooling Efficiency (EER)UP TO 20.8
Manufacturer Name: Copeland
Product Number: ZPS40K5E-TF5-800
OEM Part Number: ZPS40K5E-TF5-800
Product Description: 230V3ph 41,200Btu R410a Comp
Weight:85.5lbs/38782.12g
