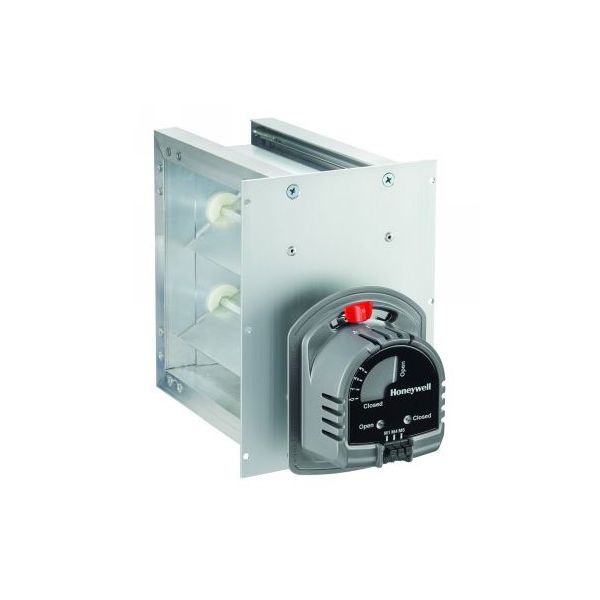

Resideo ZD22X12TZ Parallel Blade Damper 22"L X 12"H

Special Price $361.90 Regular Price $401.71
Out of stock
SKU
ZD22X12TZ
The Resideo ZD22X12TZ Parallel Blade Damper is a reliable part of the HVAC systems that helps to regulate the airflow. This 2-position damper is 22 inches long and 12 inches high and has a parallel blade optimum control of air distribution. A 24V spring return actuator enables the damper to switch between fully open and fully closed positions to control the airflow correctly. It regulates the flow of air in various areas of the house enhancing the operation of the system and convenience. The parallel blade design improves the air flow and thus reduces energy consumption and improves climate control. This is why incorporating this damper into your HVAC system can help you get superior temperature control, improved efficiency as well as longevity of your equipment.
https://www.partshnc.com/media/catalog/product/z/d/zd22x12tz_resideo_partshnc.jpg

Specifications

  • Application: Parallel Blade Damper
  • Actuator Torque: 71"-OZ
  • Damper Material: Aluminum
  • Actuator Power Consumption: 8 VA
  • Length: 22"
  • Height: 12"
  • Width: 4"
Manufacturer Name: Resideo
Product Number: ZD22X12TZ
OEM Part Number: ZD22X12TZ
Product Description: 22L X 12H Parallel 2Pos24v S/R
Weight:9.48lbs/4300.05g
