Resideo ZD16X18TZ 16"L X 18"H Parallel Blade Damper 2-Position S/R 24V

Special Price $305.25 Regular Price $338.82
In stock
SKU
ZD16X18TZ

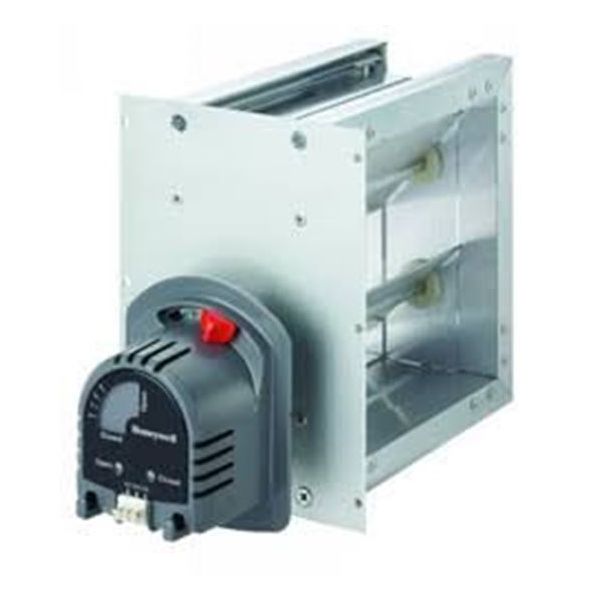

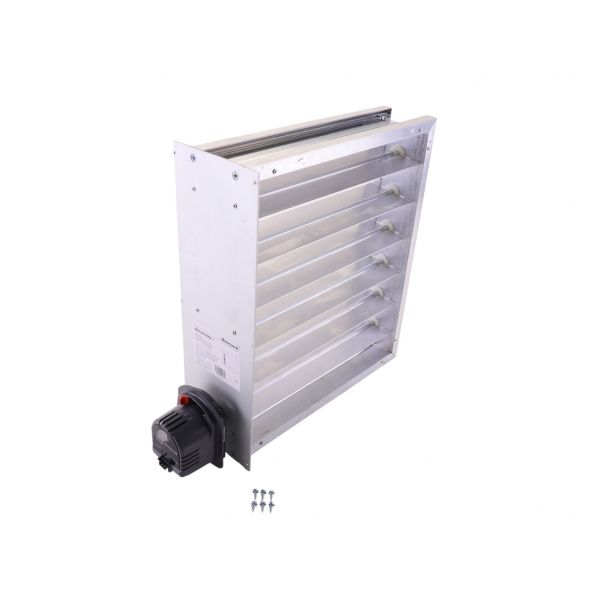

The Resideo ZD16X18TZ is a 16” x 18” parallel blade damper for the management of airflow in HVAC systems. This rectangular shaped damper consists of aluminum blades and the damper case, and therefore, can be expected to have a long service life and low loss of efficiency. The damper has parallel blades, which enable the user to regulate the airflow effectively; it is suitable for zoning purposes, where some sections of a building require heating or cooling. Powered by the 24V electric system, the ZD16X18TZ employs an actuator with a molded plastic housing and 71 in-oz of torque. This actuator offers accurate and stable damper positioning as required. The damper has a height of 18 inches, length of 16 inches and width of 4 inches, thus it can be used in different HVAC systems.
Manufacturer:
https://www.partshnc.com/media/catalog/product/z/d/zd16x18tz_resideo_partshnc.jpg

Specifications

  • Damper Duct Shape Type: Rectangular
  • Application: Parallel Blade Damper
  • Length: 16"
  • Color: Aluminum
  • Actuator Housing Material: Molded Plastic
  • Actuator Torque: 71 in-oz
  • Damper Type: Zone
  • Damper Material: Aluminum
  • Height: 18"
  • Width: 4"
  • Activation: Electric
  • Blade Material: Aluminum
  • Voltage: 24V
Manufacturer Name: Resideo
Product Number: ZD16X18TZ
OEM Part Number: ZD16X18TZ
Product Description: 16L X 18H Par.2-Pos S/R 24V
Weight:10.35lbs/4694.68g
