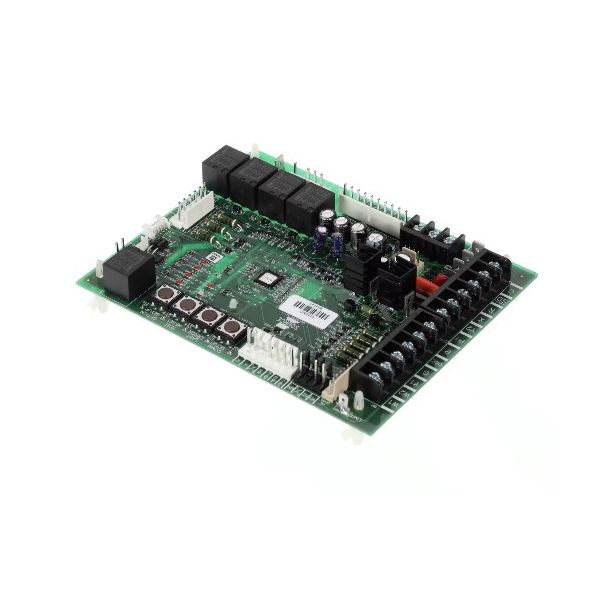

main product photo

York S1-33109150001 Control Board Kit Simplicity 2-Stage

Rating:
5 5 1
1  Review Add Your Review
Special Price $322.92 Regular Price $358.44
In stock
SKU
S1-33109150001
The York S1-33109150001 Simplicity Control Board Kit is used to manage the work of two-stage heating and cooling cycles to achieve a higher level of efficiency in HVAC systems. It is attached to residential and commercial furnaces or air handlers to control the operation of the system, such as blower speed, stage changes, and safety interlocks. It will operate based on the inputs provided by thermostats and sensors at the appropriate stage of operation and energy use. This operation controls the temperature, adjusts to the changing loads and ensures consistent indoor conditions.
Add to Wish List
HVAC Controls & Electrical, Control Boards & Modules
Manufacturer:
https://www.partshnc.com/media/catalog/product/s/1/s1-33109150001.jpg
Write Your Own Review
You're reviewing:York S1-33109150001 Control Board Kit Simplicity 2-Stage
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the York S1-33109150001 Control Board Kit?

Regularly inspect the control board for dust, debris, or signs of overheating. Ensure all wiring connections are secure and corrosion-free. Proper maintenance aids in maintaining accurate furnace operation and prevents erratic system actions.

What are common issues with the York S1-33109150001 Control Board Kit?

  • Failure to respond to thermostat signals.
  • Erratic or intermittent furnace operation.
  • Burnt components or scorched circuitry.
  • Corroded or loose connectors affecting performance.

Installation Steps

Step 1: Turn off power to the HVAC system at the breaker to avoid electric shock.

Step 2: Remove the access panel from your furnace or air handler.

Step 3: Disconnect the existing control board, labeling wires for reference.

Step 4: Install the new control board and reconnect wires to their matching terminals.

Step 5: Secure the board and replace the access panel.

Step 6: Restore power and test the system to ensure both heating and cooling stages work properly.
