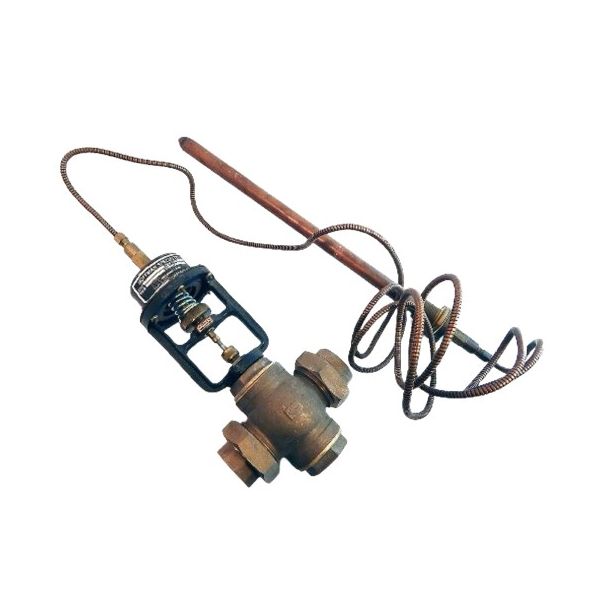

Xylem-Hoffman Specialty 400607 Actuator Assembly 160°-200°F Series 1140

Special Price $2,865.39 Regular Price $3,180.59
Out of stock
SKU
400607
1140 ACTUATOR ASSEMBLY 160-200
https://www.partshnc.com/media/catalog/product/4/0/400607.jpg

PRODUCT OVERVIEW:
Automated fluid temperature regulation prevents thermal over-cycling in hydronic heating loops. The Genuine OEM Xylem-Hoffman Specialty 400607 Actuator Assembly 160-200 F Series 1140 modulates control valves in steam and hot water temperature-regulating systems. Equipped with a cross-ambient vapor tension capillary system, this self-contained thermostatic actuator responds to sensed fluid temperature to maintain accurate operating conditions across the 160 F to 200 F setpoint range.

VALVE ACTUATION MECHANICS:
Installed onto compatible valve bodies, this thermostatic actuator operates without external electrical or pneumatic power. As fluid surrounding the bulb reaches the 160 F to 200 F range, the volatile liquid within the sensing bulb vaporizes, generating vapor pressure transmitted through the capillary tube to the internal bellows. This pressure drives the actuator stem downward to reposition the valve plug and regulate steam or hot water flow. When fluid temperatures cool, vapor condenses back into liquid, allowing internal spring tension to retract the stem.

REPLACEMENT GUIDELINES:
Replace Xylem-Hoffman Specialty 400607 when the internal bellows ruptures, the vapor charge leaks from the capillary tube, or the actuator stem fails to modulate within the 160 F to 200 F range. Always isolate system fluid or steam pressure, allow equipment to cool, and relieve internal line pressure before servicing to prevent burns or injury. Because delicate capillary tube routing and correct stem linkage setup are critical for accurate thermal control, this replacement should be performed by a qualified technician. Take care not to kink the capillary tube during installation.

COMMON FAILURE SYMPTOMS:

  • System fluid temperatures overheat continuously due to a lost vapor charge that fails to drive the valve closed.
  • Fluid fails to reach operating temperature because a bound actuator stem keeps the valve port restricted.
  • Hydronic or process fluid temperatures fluctuate erratically from a degraded or leaking thermal bellows assembly.
  • Visible charge leakage or physical damage appears along the capillary line or actuator housing assembly.

EQUIPMENT COMPATIBILITY:
The Xylem-Hoffman Specialty 400607 thermostatic temperature actuator assembly is designed for Hoffman Specialty Series 1140 temperature regulators, fitting all 1/2 inch to 2 inch valve body codes. Always verify your equipment model number, valve body code, and target temperature range with your official equipment documentation before purchasing to ensure proper thermal calibration and mechanical fitment.

TECHNICAL SPECIFICATIONS:
Brand: Xylem-Hoffman Specialty
Part Number: 400607
Product Type: Thermostatic Temperature Actuator Assembly
Series: Series 1140
Temperature Range: 160 F to 200 F (71 C to 93 C)

Write Your Own Review
You're reviewing:Xylem-Hoffman Specialty 400607 Actuator Assembly 160°-200°F Series 1140
Your Rating
Customer Questions
How to install an expansion valve for refrigeration?

Thermostatic expansion valves are an integral part of your refrigeration unit. They are responsible for ensuring the right dosage of refrigerant is entering the cooling coil to ensure maximum efficiency in the air conditioning of the system.    These special expansion valves come with a temperature sensor that is mounted at the end of the evaporator coil. They incorporate signals from this sensor to maintain the required temperature of the HVAC system. The thermostatic expansion valve works like a precision device that can regulate the measurements of the liquid refrigerant that flows into the evaporator of your system. This regulation in the flow of the refrigerant is essential to prevent the reverse flow of the refrigerant into the compressor of your system.    Through this mechanism, the thermostatic expansion valve successfully separates the high and low pressure sides of the refrigeration/air conditioning system. The liquid refrigerant enters the expansion ...

What does the Xylem-Hoffman Specialty 400607 actuator assembly do?

The Xylem-Hoffman Specialty 400607 senses fluid temperature via its capillary bulb and automatically modulates Series 1140 regulator valves within a 160 F to 200 F operating range.

How does the cross-ambient vapor tension capillary work on the Series 1140 actuator?

The volatile liquid inside the sensing bulb vaporizes as temperature rises, generating vapor pressure that expands an internal bellows to move the valve stem without external power.

How do I know if my Hoffman Specialty 400607 actuator needs to be replaced?

Replace the actuator if your system continuously overheats, fails to reach operating temperature, loses vapor charge, or fails to modulate valve position.

Can a qualified technician install the Hoffman Specialty 400607 actuator assembly?

Yes, this replacement should be performed by a qualified technician to prevent capillary line damage and ensure accurate thermal bulb positioning and stem adjustment.

How do I verify if part number 400607 fits my Hoffman Specialty valve?

Check your original regulator tag or system documentation to confirm that your valve body code is between 1/2 inch and 2 inches and requires a Series 1140 160 F-200 F actuator.
