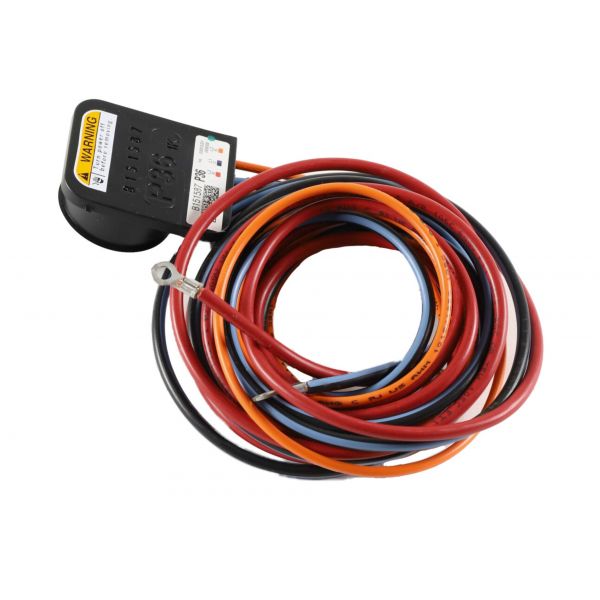

Trane WIR4816 Scroll Compressor Wire/Plug

Be the first to review this product
Special Price $33.50 Regular Price $43.55
In stock
SKU
WIR4816
The Trane WIR4816 is a pre-assembled wire harness the electrical connection of Trane scroll compressors easier. It is about 12 inches long, 2 inches high, and 9 inches wide, with a plug at one end that fits into the scroll compressor. The other end of the wire harness has electrical wires labeled by color, so installation is easy. This pre-made solution saves a lot of time for field wiring and guarantees a safe connection between the Trane scroll compressor and the electrical control of the HVAC. This helps in the proper and safe running of your Trane unit to the required efficiency.
Add to Wish List
Air Conditioner Parts, Compressors
Manufacturer:
https://www.partshnc.com/media/catalog/product/w/i/wir4816.jpg

Specifications

  • Length: 12"
  • Height: 2.0"
  • Width: 9.0"
  • Type: Plug, Scroll Compressor
  • Weight: 0.85lbs
Manufacturer Name: Trane
Product Number: WIR4816
OEM Part Number: WIR4816
Product Description: Scroll Compressor Wire/Plug
Weight:0.85lbs/385.55g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Trane WIR4816 Scroll Compressor Wire/Plug
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Trane WIR4816 Scroll Compressor Wire/Plug?

Regularly inspect the wiring harness and plug for secure connections and signs of overheating or corrosion. Ensure proper routing to prevent pressure on the wires. Clean connectors if contamination is present and verify a tight fit during servicing. Always disconnect power before performing any electrical maintenance.

What are common issues with the Trane WIR4816 Scroll Compressor Wire/Plug?

  • Loose or disconnected plug connections.
  • Damaged or frayed wiring insulation.
  • Electrical shorts or intermittent contact.
  • Overheating at the connector points.
  • Compressor communication or start failures.

Installation Steps

Step 1: Disconnect power at breaker and verify zero voltage.

Step 2: Remove access panel carefully to reach compressor wiring.

Step 3: Identify plug orientation and inspect for damage.

Step 4: Connect compressor wire/plug securely to matching compressor terminals.

Step 5: Route wiring away from sharp edges and moving parts ensure insulation is intact.

Step 6: Reinstall panel and tighten fasteners.

Step 7: Restore power and test compressor operation.
