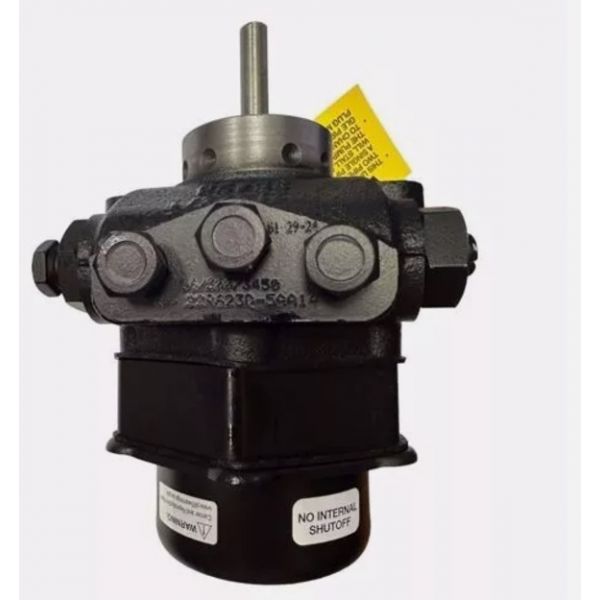

Webster 22R623D-5AA14 2-Stage Fuel Pump 3450 RPM 300 PSI R Series

Special Price $472.84 Regular Price $524.85
In stock
SKU
22R623D-5AA14
The Webster 22R623D-5AA14 Fuel Pump is a two-stage pumping assembly that supplies fuel at controlled pressure for compatible burner applications. Operating at 3450 RPM it delivers a continuous flow while the 300 PSI pressure rating supports the required operating conditions. The R Series configuration identifies its intended design and performance features for matching assemblies. Found within the fluid delivery section in HVAC systems it provides stable pressure regulation consistent flow control, smooth pumping action and coordinated operation with the connected combustion system for efficient power distribution.
Manufacturer:
https://www.partshnc.com/media/catalog/product/2/2/22r623d-5aa14.jpg

Specifications

  • Type: Fuel Pump
  • Pump Series: R
  • Stages: 2-Stage
  • Speed: 3450 RPM
  • Pressure Rating: 300 PSI

PRODUCT OVERVIEW:
Supplies pressurized fuel to support the combustion requirements of burner equipment. The Webster 22R623D-5AA14 2-Stage Fuel Pump 3450 RPM 300 PSI R Series is an OEM replacement component designed for fuel delivery applications requiring a two-stage pumping arrangement. Its 3450 RPM operating speed and 300 PSI pressure specification identify important mechanical and pressure characteristics.

TWO-STAGE PUMPING MECHANISM:
The pump uses a two-stage internal pumping arrangement to move fuel through successive pressure-building stages. As the drive shaft rotates, the pumping elements draw fuel into the assembly and transfer it through the internal flow passages. This staged process supports the delivery of pressurized fuel to the connected burner system.

FUEL PRESSURE DELIVERY:
During burner operation, the pump supplies fuel through the delivery circuit according to the system's pressure requirements. Its two-stage configuration supports the specified pumping process, while the 3450 RPM rating defines its rotational operating speed. The 300 PSI specification identifies its rated pressure characteristic and must be matched to the intended burner application.

REPLACEMENT GUIDELINES:
Replace Webster 22R623D-5AA14 2-Stage Fuel Pump 3450 RPM 300 PSI R Series when fuel pressure becomes unstable, burner fuel delivery is interrupted, or leakage appears around the pump assembly. Difficulty maintaining combustion, unusual pump noise, or repeated burner shutdowns may also indicate pump deterioration. Have a qualified combustion technician inspect the fuel supply, verify pressure requirements, and perform the replacement with appropriate safety checks.

COMMON SIGNS OF WEAR:

  • Unstable fuel pressure during operation.
  • Fuel leakage around pump housing.
  • Interrupted burner fuel delivery.
  • Excessive noise from pump assembly.
  • Repeated burner operating interruptions.
  • Difficulty maintaining combustion operation.

EQUIPMENT COMPATIBILITY:
The Webster 22R623D-5AA14 2-Stage Fuel Pump 3450 RPM 300 PSI R Series is an OEM replacement component intended for compatible burner equipment requiring an R Series two-stage fuel pump with matching rotational and pressure characteristics. Verify the existing pump identification, fuel type, shaft arrangement, mounting dimensions, inlet and outlet connections, and burner pressure requirements before installation.

TECHNICAL SPECIFICATIONS:
Brand: Webster
Part Number: 22R623D-5AA14
Product Type: Fuel Pump
Series: R Series
Pumping Configuration: 2-Stage
Rotational Speed: 3450 RPM
Pressure: 300 PSI

Write Your Own Review
You're reviewing:Webster 22R623D-5AA14 2-Stage Fuel Pump 3450 RPM 300 PSI R Series
Your Rating
Customer Questions
What is the purpose of the Webster 22R623D-5AA14 two-stage fuel pump?

It supplies pressurized fuel to compatible burner systems through a two-stage pumping arrangement.

How does the Webster 22R623D-5AA14 two-stage fuel pump differ from a single-stage design?

A two-stage pump moves fuel through successive pumping stages, providing a different pressure-delivery arrangement from a single-stage design.

Why must the 300 PSI specification be checked before installation?

The specified pressure characteristic must match the burner's fuel system requirements to support appropriate fuel delivery.

Can an incorrect fuel pump affect burner combustion?

Yes, an unsuitable pump can contribute to improper fuel delivery, pressure problems, and unreliable burner operation.

What details should be matched when ordering the Webster R Series replacement pump?

Verify the 22R623D-5AA14 part number, two-stage configuration, 3450 RPM speed, pressure specification, fuel connections, and mounting arrangement.
