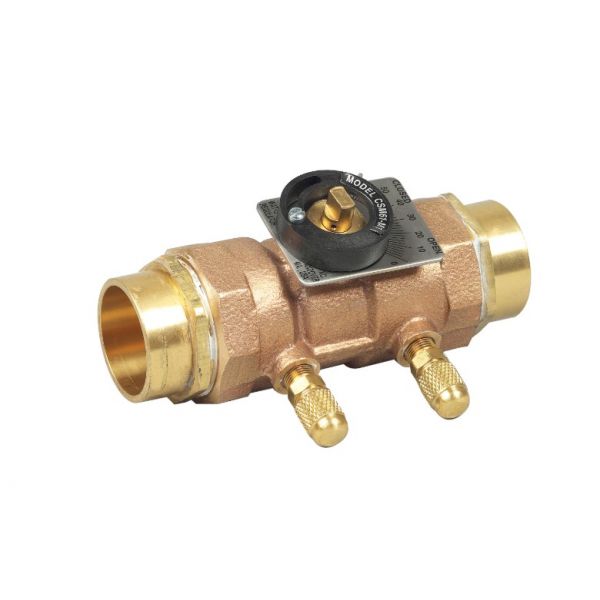

Watts 0856810 Flow Balance Valve LF 3/4" NPT

Special Price $335.50 Regular Price $372.40
In stock
SKU
0856810
The Watts 0856810 3/4 -Lead Free Flow Measurement Valve is a fluid control component used to adjust and measure the water flow in hydronic heating or cooling loops in HVAC systems. It works based on the ability to adjust the flow rates in a specific way for the measurement to balance the system, allowing for precise control of the water flow necessary to optimise the efficiency and performance of the HVAC systems. It is typically installed in residential and commercial boilers, chillers, or radiant systems and is part of the water distribution system that helps ensure consistent circulation.
Manufacturer:
https://www.partshnc.com/media/catalog/product/0/8/0856810.jpg

Specifications

  • Type: Flow Balance Valve
  • Size: 3/4"

PRODUCT OVERVIEW:
Flow balance valves regulate fluid velocity and maintain system-wide hydronic balance across heating and cooling circuits. The Watts 0856810 (LF 3/4" NPT) Flow Balance Valve is an OEM component designed to provide precise manual flow control and circuit balancing in compatible hydronic lines. Featuring lead-free (LF) brass construction and 3/4" NPT connection ports, this valve delivers the calibrated throttling capability needed to optimize fluid delivery. By preventing short-circuiting and ensuring equal flow across parallel piping loops, the unit maintains consistent thermal transfer and system operating efficiency.

THROTTLING MECHANICS:
An internal adjustable plug or disc mechanism alters internal orifice dimensions to throttle fluid throughput. Rotating the external valve stem changes the distance between the plug and the valve seat, increasing or decreasing fluid resistance across the 3/4" NPT passage. Once adjusted to the system's design flow rate, the internal assembly remains locked in place, maintaining constant pressure drop and steady fluid velocity through the circuit regardless of minor main-line pressure shifts.

HYDRONIC CIRCUIT BALANCING:
The flow balance valve functions as an inline distribution control point installed on hydronic supply or return branch lines. Positioned upstream or downstream of individual heating/cooling coils, the valve restricts flow through low-resistance paths, preventing near-loop fluid starvation of distant circuits. Maintaining precise flow balancing eliminates velocity-induced pipe noise, prevents circulating pump overload, and ensures balanced BTU delivery across all hydronic loops.

REPLACEMENT GUIDELINES:
Component replacement is necessary when the stem binds, internal throttling surfaces erode, or packing glands leak continuously. Malfunctioning balance valves compromise HVAC performance by causing temperature imbalances, cold/hot zones in branch circuits, or continuous fluid loss. Qualified technician assistance is recommended for hydronic line isolation, system draining, and flow balancing setup. Before purchasing, verify the part number and all relevant specifications against the original equipment documentation to ensure the replacement matches the system requirements.

COMMON FAILURE SYMPTOMS:

  • Uneven heating or cooling distribution across parallel hydronic loops due to lost flow calibration.
  • Valve stem binds, seizes, or spins freely without adjusting internal throttling position.
  • External fluid weeping, moisture accumulation, or dripping around the valve stem packing nut or 3/4" NPT threads.
  • Audible whistling, hissing, or high-velocity fluid noise within branch piping caused by worn seat orifices.
  • Heavy oxidation, mineral buildup, or physical casing degradation on the lead-free brass valve body.

EQUIPMENT COMPATIBILITY:
The Watts 0856810 is intended for compatible hydronic heating and cooling systems requiring a 3/4" NPT lead-free manual flow balance valve. Confirm the part number, lead-free designation (LF), and port dimensions against the original equipment documentation before selecting a replacement. For exact compatible equipment models, refer to the manufacturer's documentation. Do not assume compatibility based on the manufacturer name alone.

TECHNICAL SPECIFICATIONS:
Product Identification:
Brand: Watts
Part Number: 0856810
Component Type: Flow Balance Valve
Material Details:
Lead-Free Designation: LF (Lead Free)
Operating Specifications:
Equipment Type: Hydronic Equipment
Connection Specifications:
Connection Size: 3/4" NPT

Write Your Own Review
You're reviewing:Watts 0856810 Flow Balance Valve LF 3/4" NPT
Your Rating
Customer Questions
What maintenance is required for the Watts 0856810 Flow Balance Valve?

Regularly inspect the valve for leaks and ensure connections are tight. Clean any debris from the valve body to maintain smooth flow. Operate the valve periodically to prevent sticking. Always follow safety procedures when handling pressurized systems.

What are common issues with the Watts 0856810 Flow Balance Valve?

  • Leaks at threaded connections.
  • Difficulty adjusting flow.
  • Valve sticking due to sediment or debris.
  • Inaccurate flow balancing affecting system performance.

What is the primary function of the Watts 0856810 flow balance valve?

The valve manually throttles and balances fluid flow rates across hydronic heating and cooling loops to ensure proper fluid velocity and uniform thermal distribution.

Which equipment utilizes the Watts 0856810 flow balance valve?

This OEM replacement part is designed for select compatible hydronic heating, cooling, and water distribution systems matching part number 0856810 and 3/4" NPT port specifications.

What failure signs indicate that a flow balance valve needs replacement?

Key indicators include an inability to adjust flow settings, uneven branch temperatures, fluid weeping around the stem packing, or whistling pipe noise.

What does the "LF" designation indicate on the Watts 0856810 valve?

The "LF" designation signifies lead-free construction, certifying that the valve meets lead-free compliance standards for hydronic and potable water applications.

What steps should be completed prior to replacing a hydronic balance valve?

Verify the part number in official system manuals, turn off circulating pumps, isolate the branch piping using shutoff valves, and drain internal line pressure before unthreading the unit.

Installation Steps

Step 1: Shut off water supply and relieve pressure before installation.

Step 2: Select the installation location and ensure pipe threads are clean.

Step 3: Apply thread sealant or Teflon tape to male threads.

Step 4: Screw the valve onto the pipe, tightening by hand, then use a wrench.

Step 5: Adjust the flow balance as needed according to system requirements.

Step 6: Turn on water supply, check for leaks, and ensure proper flow.
