Schneider Electric (Viconics) VZ7656R1031B Programmable Zoning Rooftop Thermostat 2H/2C For RTU, BACnet, Economizer & IAQ

Special Price $689.74 Regular Price $765.61
In stock
SKU
VZ7656R1031B

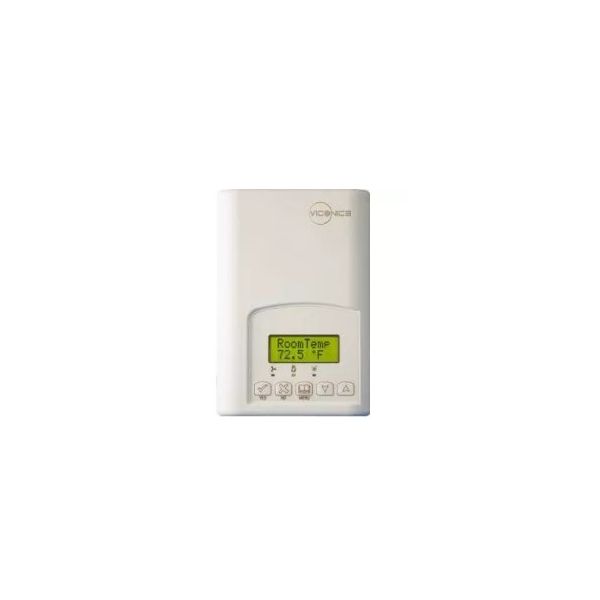

The Schneider Electric (Viconics) VZ7656R1031B Programmable Zoning Rooftop Thermostat is for use on commercial HVAC systems. It can support 2-Heat/2-Cool configuration and is compatible with rooftop units and heat pumps. BACnet MS/TP communication is used to efficiently automate a building and remotely monitor it. The economizer loop is embedded into the thermostat to save energy by optimizing the use of outside air. It is an LCD interface with commissioning, so there is no need for external tools. This makes it a smart choice for zoning systems as it provides precise temperature control, allowing for better indoor air quality management, and is a solution for HVAC scalable control.
https://www.partshnc.com/media/catalog/product/v/z/vz7656r1031b_1.jpg

Specifications

  • Type: Thermostat
  • Application: Zoning Rooftop
  • Heat/Cool: 2-Heat/2-Cool
  • Programmable Funtion: active
  • Feature: Economizer

Product Overview:
Controls rooftop HVAC operation and zone temperature regulation through programmable control and communication with connected HVAC system components. The Schneider Electric (Viconics) VZ7656R1031B is an OEM programmable rooftop zoning controller configured for two-stage heating and two-stage cooling. Designed for commercial rooftop HVAC applications using a Variable Volume and Temperature (VVT) control arrangement, it functions as a rooftop master controller and supports BACnet MS/TP communication with building automation systems.

Rooftop Unit Control:
Regulates rooftop heating and cooling operation in response to demands received from the connected zoning system. The functions as the central control point for coordinating rooftop equipment operation with changing zone requirements. This control role helps align the equipment's heating and cooling response with the overall demands of the conditioned spaces.

Zoning System Coordination:
Coordinates communication between the rooftop unit and connected zone controls to support centralized HVAC operation. The controller receives operating demands from the zoning system and uses that information to help manage the rooftop equipment's response. This arrangement supports coordinated temperature control across multiple conditioned areas without treating each zone as an independent rooftop system.

Replacement Guidelines:
Replace the Schneider Electric (Viconics) VZ7656R1031B Programmable Rooftop Zoning Controller when inspection confirms that its temperature regulation, rooftop unit control, or BACnet communication functions no longer operate reliably. Replacement may be necessary when the controller fails to respond to programmed heating or cooling demands, does not coordinate the rooftop unit's two-stage heating and cooling operation as expected, or experiences persistent communication failures with the building automation system. A qualified HVAC controls technician should check the power supply, network connections, and related zoning devices to confirm that controller replacement is necessary.

Common Failure Symptoms:

  • The rooftop unit does not respond as expected to heating or cooling demands from the zoning system.
  • One or more heating or cooling stages fail to operate in response to controller commands.
  • Communication between the rooftop controller and connected zone controllers becomes intermittent.
  • The building automation system cannot reliably exchange data with the rooftop controller.
  • Rooftop unit operation does not coordinate consistently with changing zone demands.

Equipment Compatibility:
The Schneider Electric (Viconics) VZ7656R1031B is an OEM-numbered rooftop zoning controller designed for commercial HVAC systems using a Viconics Variable Volume and Temperature (VVT) zoning arrangement. It is identified for rooftop unit applications with two-stage heating and two-stage cooling and BACnet MS/TP communication. Before installation, verify the existing controller's complete part number, rooftop unit control configuration, communication protocol, and zoning system architecture.

Technical Specifications:
Brand: Schneider Electric (Viconics)
Part Number: VZ7656R1031B
Component Type: Programmable Rooftop Zoning Controller

Write Your Own Review
You're reviewing:Schneider Electric (Viconics) VZ7656R1031B Programmable Zoning Rooftop Thermostat 2H/2C For RTU, BACnet, Economizer & IAQ
Your Rating
Customer Questions
What does the Schneider Electric VZ7656R1031B controller do?

The VZ7656R1031B serves as the rooftop master controller in a VVT zoning system. It coordinates rooftop unit heating and cooling operation according to demands communicated by the connected zone controllers.

How many heating and cooling stages does the VZ7656R1031B support?

This controller supports a two-stage heating and two-stage cooling configuration for rooftop HVAC applications.

What communication protocol does the VZ7656R1031B use?

The controller uses BACnet MS/TP communication over an RS-485 network to exchange information with connected zoning controls and compatible building automation systems.

Does the VZ7656R1031B include indoor air quality and economizer control?

No. Schneider Electric's catalog identifies the VZ7656R1031B as a standard 2H/2C rooftop controller without IAQ or economizer functions.

What should be verified when selecting a replacement VZ7656R1031B?

Check the complete part number, 2H/2C rooftop application, VVT zoning arrangement, and BACnet MS/TP communication requirements. These details help distinguish this controller from other VZ7656 models with different rooftop, IAQ, economizer, or heat pump configurations.
