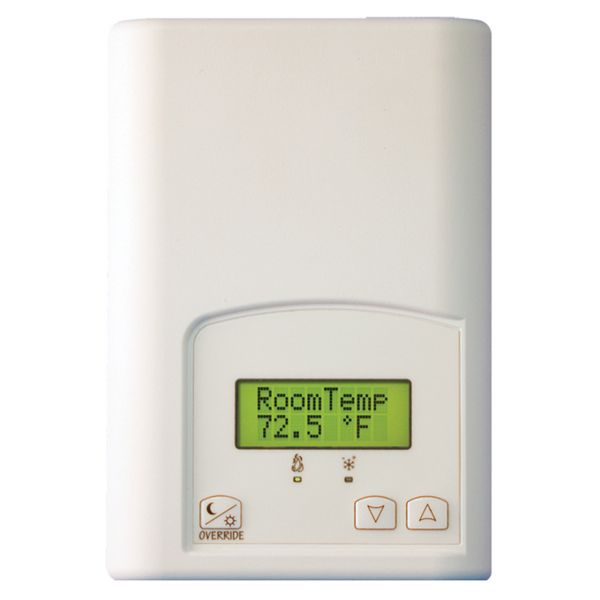

Schneider Electric (Viconics) VT7200C5031 Zone Control Thermostat ON/OFF Floating

Special Price $189.40 Regular Price $217.81
In stock
SKU
VT7200C5031
‍The​ Schneider Electric (Viconics) VT7200C5031 Zone C​ontrol Thermostat ON/OFF Floating is an essential part used to control and operate as a temp​erature regulation instrument in HVAC system. It is used to manage zoni​n​g an‍d equi‍pme‌nt staging under varying conditions. It supports stable performance in buildings, where⁠ precise zone based control is necessary‌ for the unit in the system. It is used in co‍ntrol pane‌ls and wal‌l‍ mounted interfaces to‍ adjust​ heating and cooling outputs, helping i⁠mpro​ve system efficiency and reduce potential damage​ during typical ope‌ra‍tion.
https://www.partshnc.com/media/catalog/product/v/t/vt7200c5031-1.jpg

Product overview:
Commercial HVAC systems use zone thermostats to regulate heating and cooling based on individual space temperature requirements. The Schneider Electric (Viconics) VT7200C5031 is a zone control thermostat developed for variable air volume (VAV) applications in commercial building automation systems. This OEM control device combines room temperature sensing, a backlit LCD interface, and configurable output operation to manage connected HVAC equipment. Its wall-mounted design and local configuration interface support zone-level temperature control in commercial environments.

Zone Temperature Control:
The thermostat monitors room temperature and uses its internal control logic to determine when heating or cooling adjustments are required. It processes the difference between the measured room condition and the selected setpoint to regulate connected HVAC equipment. This operation supports automatic zone temperature management and helps maintain programmed indoor conditions.

Floating Output and HVAC Control:
The thermostat uses floating control outputs to operate compatible modulating actuators through directional control signals. These signals allow connected valves or dampers to adjust their positions according to heating or cooling demand. The outputs can also be configured for ON/OFF operation, depending on application requirements. This control arrangement supports VAV zone applications and other designated HVAC equipment.

Replacement guidelines:
Replace the Schneider Electric (Viconics) VT7200C5031 when it fails to regulate room temperature, its display becomes unresponsive, or its output signals no longer operate connected HVAC equipment correctly. Inspect the power supply, wiring connections, actuator operation, and thermostat configuration before installing a replacement.

Common Failure Symptoms:

  • Room temperature does not maintain the selected setting.
  • LCD display becomes blank or unresponsive.
  • Connected valve or damper fails to respond to control signals.
  • Heating or cooling operation becomes inconsistent.
  • Temperature adjustments fail to register.
  • Zone airflow regulation becomes unreliable.

Equipment compatibility:
The Schneider Electric (Viconics) VT7200C5031 is an OEM replacement option for designated VAV zone control applications using floating or ON/OFF output operation. It is intended for HVAC systems requiring zone-level temperature regulation and actuator control. Before selecting a replacement, verify the existing controller model, output configuration, actuator requirements, and communication arrangement.

Technical Specifications:
Brand: Schneider Electric (Viconics)
Model: VT7200C5031
Product Type: VAV Zone Control Thermostat
Switch type: ON/OFF

Write Your Own Review
You're reviewing:Schneider Electric (Viconics) VT7200C5031 Zone Control Thermostat ON/OFF Floating
Your Rating
Customer Questions
How does ON/OFF floating control regulate zone temperature?

ON/OFF floating control operates connected HVAC equipment through staged or floating control signals to help maintain the desired zone temperature.

What type of HVAC applications is the VT7200C5031 designed to support?

The VT7200C5031 is designed for zone-level HVAC applications requiring temperature regulation through compatible heating and cooling equipment.

How does the VT7200C5031 manage heating and cooling demand?

The thermostat monitors room temperature and adjusts its control outputs according to the configured heating and cooling setpoints.

What is the importance of checking actuator compatibility with this zone thermostat?

Matching the actuator type and control signal requirements helps ensure proper communication and coordinated operation between the thermostat and controlled equipment.

Which maintenance practices help maintain consistent thermostat operation?

Periodically clean the thermostat display, inspect wiring connections, and verify temperature sensor operation to support reliable zone temperature control.
