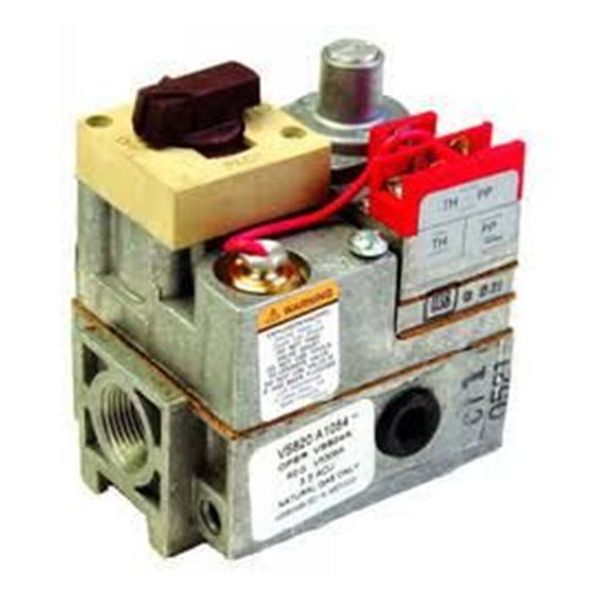

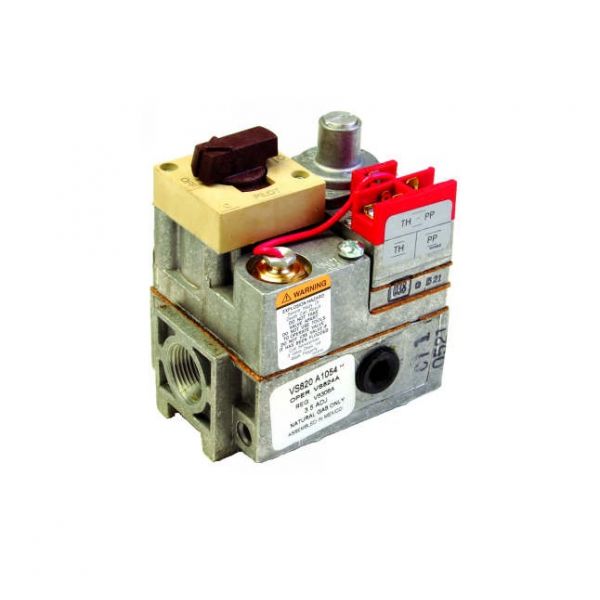

The Resideo VS820A1054 is a millivolt combination gas valve designed for automatic control of natural gas-fired heating appliances. It combines several key functions into one unit: a manual gas shut-off valve, a safety shutoff for pilot flame loss, and an automatic valve that opens and closes based on signals from a millivolt thermostat. This 1eliminates the need for a separate electrical power source for the valve. The valve itself is made of durable aluminum and features a 3/4-inch NPT connection for easy installation into most gas lines. A built-in pressure regulator helps ensure consistent gas pressure to the appliance. The millivolt system operates using a 750 millivolt powerpile generator, which converts heat from the pilot flame into electricity to power the valve. This self-contained design makes the VS820A1054 reliable and well-suited for use in a variety of HVAC equipment, including natural gas furnaces and boilers.
The Resideo VS820A1054 is a 3/4" natural gas millivolt gas valve used in various residential and commercial heating applications. It combines several functionalities into a single unit, making it a versatile component for gas-fired appliances like boilers and furnaces. is a standard opening gas valve used in various gas-fired appliances like furnaces and boilers. It combines several features for control and safety
Key Features:
Controls gas flow: Opens and closes to regulate the amount of gas reaching the burner.
Millivolt operation: Requires very low voltage (750 mV) to operate, making it compatible with a wider range of systems.
Standard opening: Opens fully upon receiving electricity, ideal for appliances with high gas flow demands.
Pilot ignition: Supports appliances with standing pilot ignition systems.
Safety shutoff: Automatically shuts off gas supply in case of flame failure or unsafe conditions.
Adjustable gas pressure: Allows fine-tuning for optimal appliance performance.
Durable construction: made using premium materials to ensure endurance.
Easy installation and maintenance: Designed for technician convenience.
Applications:
Residential furnaces and boilers
Water heaters
Commercial cooking equipment
Unit heaters
Other gas-fired appliances with millivolt systems and standard opening requirements
Signs of a Faulty VS820A1054 Natural Gas Millivolt Valve Resideo:
As with other gas valve discussions, due to safety concerns, I cannot provide specific troubleshooting or repair information for the Natural Gas Millivolt Valv VS820A1054. Gas appliances should only be serviced by qualified technicians, and attempting repairs yourself can lead to serious injury or death.
However, I can offer some general warning signs that may indicate a potential issue with a gas valve:
Immediate Warning Signs:
Gas odor: This is the most critical indicator of a gas leak. As soon as you smell gas, turn off the gas supply and leave the area. In order to ventilate the area, open the doors and windows. You can also phone your local gas company or emergency services.
Visible flames or sparks: If you see flames or sparks near the gas valve or appliance, shut off the gas supply and evacuate the area immediately. Dial 911 or your neighborhood gas provider.
Unusual sounds: Hissing, popping, or other loud noises coming from the gas valve or appliance could indicate a malfunction. Cut off the gas supply and contact a qualified expert.
General Warning Signs:
Appliance malfunction:
Furnace or boiler won't ignite or stay lit.
Pilot light keeps going out.
Appliance cycles on and off frequently.
Excessive noise or vibration from the appliance.
Uneven or inadequate heating/cooling.
Physical damage:
Cracks, tears, or corrosion on the gas valve body or connections.
Loose or damaged wiring connected to the valve.
obvious indications of deterioration on the valve's component parts.
