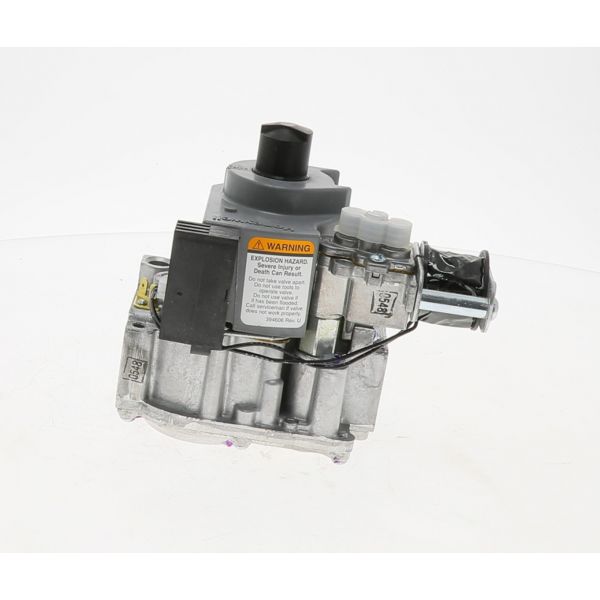

Resideo VR8305Q4195 2-Stage Heatco Gas Valve 24V

Be the first to review this product
Special Price $331.28 Regular Price $367.73
In stock
SKU
VR8305Q4195
The Resideo VR8305Q4195 is a 2-stage heat gas valve for HVAC applications that require natural gas. This valve is powered by 24V and regulates the flow of the gas to the burner of a 2-stage heating system for accurate control of temperature. It has a manual changeover feature and comes with a 1/2" size, which makes installation and use easy. In the case of the 2-stage heating system, this valve regulates the amount of energy used to warm the internal environment depending on a current need. This leads to increased comfort, and also the likelihood of decreased operating expenses.
Add to Wish List
Gas Valves, HVAC Controls & Electrical
Manufacturer:
https://www.partshnc.com/media/catalog/product/v/r/vr8305q4195.jpg

Specifications

  • Type: 2-Stage Heat Gas Valve
  • Gas Type: Natural Gas
  • Changeover: Manual
  • Series: Heatco
  • Voltage Rating: 24 VAC

Product Overview:
Provides controlled two-stage fuel delivery for residential heating equipment. The RESIDEO VR8305Q4195 2-Stage Heatco Gas Valve 24V manages low-stage and high-stage gas delivery according to the heating system's control requirements. Its combination valve design integrates fuel regulation and automatic shut-off within a single assembly, supporting stable combustion across varying heating demands.

Two-Stage Fuel Control:
Manages gas delivery across low-stage and high-stage heating operation. The valve responds to electrical control signals to establish the fuel flow required for the selected heating stage. This staged fuel control allows the heating system to adjust burner output according to changing heat demand.

Pressure Regulation:
Controls gas pressure supplied toward the burner system as part of the valve's integrated regulation assembly. The pressure-control mechanism supports consistent fuel delivery across the valve's operating stages. Stable gas delivery helps maintain the fuel conditions required for reliable burner operation.

Replacement Guidelines:
Replacing the 2-Stage Heatco Gas Valve is appropriate if it is damaged, malfunctioning, excessively worn, or otherwise deteriorated. Verify the RESIDEO part number VR8305Q4195 and the complete heating equipment model number before replacement. Replace the valve if deterioration affects two-stage fuel control, solenoid response, pressure regulation, shut-off operation, or normal heating performance.

Common Signs of Wear:

  • Main burner fails to ignite.
  • Low-stage operation becomes unreliable.
  • High-stage operation becomes inconsistent.
  • Burner flame becomes unstable.
  • Gas delivery becomes intermittent.
  • Valve fails to respond to control signals.
  • Burner shuts down unexpectedly.

Equipment Compatibility:
The RESIDEO VR8305Q4195 2-Stage Heatco Gas Valve is intended for heating equipment that specifies part number VR8305Q4195. Verify the complete heating equipment model number, control voltage, and manufacturer's parts documentation before purchasing to help confirm the correct application.

Technical Specifications:
Brand: RESIDEO
Part Number: VR8305Q4195
Product Type: 2-Stage Heatco Gas Valve
Control Voltage: 24V

Reviews
Write Your Own Review
You're reviewing:Resideo VR8305Q4195 2-Stage Heatco Gas Valve 24V
Your Rating
Product Questions (7)
Customer Questions
What maintenance is required for the Resideo VR8305Q4195 Gas Valve ?

Regularly inspect valve connections wiring and seals for leaks or corrosion and ensure secure mounting. Clean surfaces and verify gas pressure and electrical operation during system maintenance. Have qualified technician service the valve to ensure safe operation and prevent malfunctions.

What are common issues with the Resideo VR8305Q4195 Gas Valve?

  • Valve fails to open or close properly causing no heat.
  • Intermittent flame or unstable burner operation.
  • Electrical coil failure or wiring faults.
  • Gas leakage or pressure irregularities.
  • Ignition system not triggering due to valve malfunction.

How does the Resideo VR8305Q4195 gas valve control fuel delivery?

It controls two-stage gas delivery to support burner operation in residential heating equipment.

How does the VR8305Q4195 manage low-stage and high-stage heating operation?

It manages fuel delivery between low-stage and high-stage operation according to the heating system's control signals.

How do the internal valve and pressure-control components support burner operation?

They manage the gas passage and regulate fuel delivery toward the burner system during equipment operation.

How does the 24V control signal operate the VR8305Q4195?

The 24V electrical signal actuates the valve's internal control components according to the equipment's operating sequence.

How does the VR8305Q4195 provide automatic fuel shut-off?

It closes the internal gas passages when the required electrical control signal is removed, interrupting fuel delivery to the burner system.

Installation Steps

Step 1: Turn off gas supply and electrical power; lock out/tag out and check zero voltage before starting.

Step 2: Remove access panel and label all wiring and gas line connections from the old valve.

Step 3: Disconnect inlet/outlet piping and wiring, then remove the existing gas valve carefully.

Step 4: Install the new valve, ensuring correct gas flow direction and secure threaded connections.

Step 5: Reconnect wiring to proper terminals and check all fittings for tightness.

Step 6: Restore gas and power, then perform a full leak test using approved leak detection solution.
