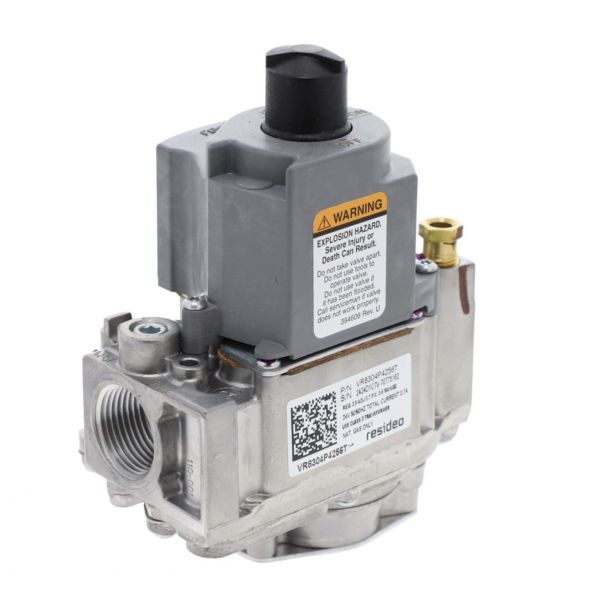

Resideo VR8304P4256T 3/4" Single Stage Gas Valve Slow Open 24V

Rating:
5 5 3
3  Reviews Add Your Review
Special Price $280.88 Regular Price $311.78
In stock
SKU
VR8304P4256T
The Resideo VR8304P4256T is a 3/4" Single Stage Intermittent Pilot Gas Valve to control gas flow in HVAC systems, for furnaces and boilers. It is 24V and can be used in systems that require a single stage operation. With an inlet pressure of 1/2 PSI, it is reliable over a wide temperature range from -40°F to 175°F and is suitable for use in a wide range of climates. This gas valve is a reliable and durable gas valve that gives consistent performance and reliable ignition in HVAC equipment. It uses precise gas flow control to improve system overall efficiency, decrease energy consumption, and increase heating performance.
Add to Wish List
Gas Valves, HVAC Controls & Electrical
Manufacturer:
https://www.partshnc.com/media/catalog/product/v/r/vr8304p4256t.jpg

Specifications

  • Type: Gas Valve
  • Range of Temperature: -40°F to 175°F
  • Application: Single Stage
  • Capacity: 30,000 BTU
  • Operating Pressure: 1/2 PSI
  • Frequency: 60Hz
  • Voltage: 24V
  • Connection Size: 3/4"
  • Opening Type: Slow Opening

Product Overview:
Designed for gas-fired heating equipment with intermittent pilot ignition, the Resideo VR8304P4256T 3/4" 1-Stage Intermittent Pilot Gas Valve 24V serves as a gas-control component within the equipment's fuel system. The 3/4" designation identifies the valve connection size, 24V specifies the electrical supply for actuation, and 1-Stage specifies its operating configuration. The valve interfaces with the equipment's gas supply and control system as part of the heating assembly.

Single-Stage Gas Flow Control:
A single fuel-delivery stage governs gas passage through the valve during the equipment's heating sequence. The internal valve mechanism responds to the control sequence to manage gas delivery according to the operating requirements of the heating equipment.

Intermittent Pilot System Integration:
Within an intermittent pilot heating system, the valve forms part of the fuel-control and ignition sequence. The control circuit coordinates valve operation with the pilot and main burner sequence, allowing gas delivery to be managed during equipment operation. The 24V specification identifies the electrical control configuration associated with the valve.

Replacement Guidelines:
Replacement of the Resideo VR8304P4256T 3/4" 1-Stage Intermittent Pilot Gas Valve 24V may be appropriate when the valve shows physical damage, leakage, or other conditions affecting normal gas control. Selection should be based on the existing valve identification and the equipment's specified requirements.

Common Failure Symptoms:

  • Main burner fails to ignite during an active heating cycle.
  • Gas delivery becomes intermittent during operation.
  • Gas flow does not respond correctly to the equipment control sequence.
  • Gas flow continues after the heating demand ends.
  • Physical damage or leakage is visible around the valve or connections.

Equipment Compatibility:
The Resideo VR8304P4256T 3/4" 1-Stage Intermittent Pilot Gas Valve 24V is specified for gas-fired heating equipment requiring a 3/4" connection, 1-stage operation, intermittent pilot configuration, and 24V control voltage. Verify the equipment model, existing valve identification, connection size, pilot configuration, and applicable manufacturer documentation before selecting the valve.

Technical Specifications:
Brand: Resideo
Part Number: VR8304P4256T
Product Type: 1-Stage Intermittent Pilot Gas Valve
Connection Size: 3/4"
Control Voltage: 24V
Pilot Type: Intermittent Pilot

Reviews 3
Write Your Own Review
You're reviewing:Resideo VR8304P4256T 3/4" Single Stage Gas Valve Slow Open 24V
Your Rating
Product Questions (7)
Customer Questions
What maintenance is required for the Resideo VR8304P4256T Pilot Gas Valve?

Regularly inspect the gas valve for leaks, corrosion, or debris buildup. Ensure all connections are tight and the pilot assembly is clean. Proper maintenance helps maintain safe operation and consistent gas flow.

What are common issues with the Resideo VR8304P4256T Pilot Gas Valve?

  • Gas leaks or improper sealing.
  • Failure of the pilot to ignite.
  • Erratic gas flow or pressure inconsistencies.
  • Electrical or solenoid malfunctions.

What does the Resideo VR8304P4256T gas valve do in heating equipment?

The Resideo VR8304P4256T is a 1-stage intermittent pilot gas valve used to control gas flow within compatible gas-fired heating equipment.

How does the VR8304P4256T support an intermittent pilot operating sequence?

The 1-stage gas valve controls gas passage as part of the equipment's intermittent pilot operating sequence, coordinating fuel delivery with the heating system's control signals.

What should I verify before selecting the Resideo VR8304P4256T?

Verify that the equipment is compatible with the VR8304P4256T and that the applicable valve configuration, electrical requirements, gas-line connection, and control requirements match the equipment documentation.

How does the VR8304P4256T interact with the heating equipment's control system?

The VR8304P4256T interfaces with the equipment's control system to regulate gas delivery according to the heating sequence.

What maintenance considerations apply to the VR8304P4256T gas valve?

The gas valve should be checked as part of appropriate heating-equipment service to identify conditions that could affect gas-flow control or operation. Follow the equipment manufacturer's servicing requirements for specific inspection and maintenance procedures.

Installation Steps

Step 1: Shut off the gas supply and power to the system before starting.

Step 2: Remove the existing gas valve following the appliance manufacturer’s instructions.

Step 3: Install the new valve in the correct orientation, ensuring proper alignment with gas lines.

Step 4: Connect the control wiring according to the wiring diagram.

Step 5: Tighten all fittings securely and check for gas leaks with a soapy water solution.

Step 6: Restore gas and power, then test the system to confirm proper pilot ignition and operation.
