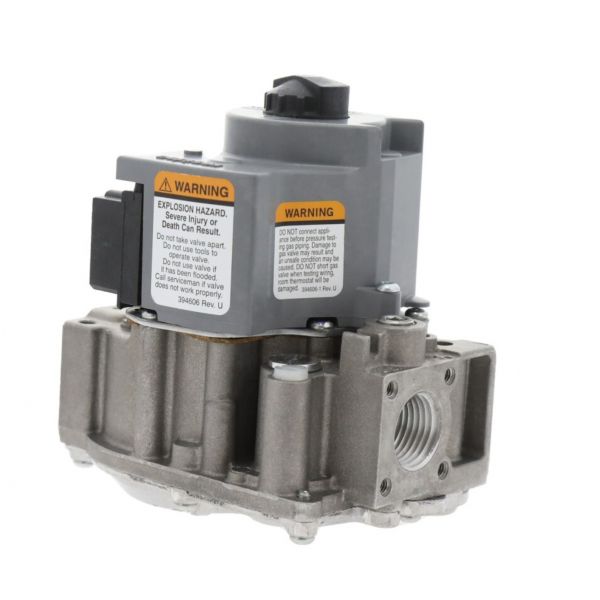

main product photo

Resideo VR8205M2823T 1/2" Dual Direct Ignition Standard opening Gas Valve 24V

Be the first to review this product
Special Price $120.35 Regular Price $138.40
In stock
SKU
VR8205M2823T
The Resideo VR8205M2823T 1/2" Dual-Direct Ignition Gas Valve work as a 24V standard-opening valve in commercial and residential HVAC systems for gas furnace, boiler and unit heater. This valve regulates the gas flow to the burner system for secure and effective ignition processes. The valve system contains two ignition systems that remove the need for pilot light to increase energy savings and system stability. The device offers better safety with automatic pressure control works with many heating designs.
Add to Wish List
Gas Valves, HVAC Controls & Electrical
Manufacturer:
https://www.partshnc.com/media/catalog/product/v/r/vr8205m2823t.jpg

Specifications

  • Type: Dual Direct Ignition Standard opening Gas
  • Voltage: 24V AC
  • Size: 1/2"
  • Ignition Type: Direct Ignition

Product Overview:
Serving as a fuel-control component in heating equipment, the Resideo VR8205M2823T 1/2" Dual Direct Ignition Gas Valve Standard opening 24V provides gas management for systems utilizing a 24V electrical specification. The valve features a 1/2" connection size, a dual direct ignition configuration, and a standard opening characteristic. Its electrical control interface manages gas delivery within the applicable heating system based on system demand.

Dual Automatic Gas Control:
Within the fuel-control assembly, dual automatic valve operators coordinate the movement of gas through the valve in response to the equipment's operating commands. Each operator contributes to controlling the fuel path as the system progresses through its control sequence. This arrangement allows gas admission to be managed in coordination with the heating demand and ignition requirements.

Replacement Guidelines:
Replacement may be appropriate when the Resideo VR8205M2823T 1/2" Dual Direct Ignition Gas Valve Standard opening 24V shows visible physical deterioration or damage affecting the assembly. Relevant conditions may include a damaged valve body, deteriorated connection areas, corrosion, or physical damage to the electrical control components.

Common Failure Symptoms:

  • Burner does not receive the required gas flow when the valve is commanded to operate.
  • Gas flow does not respond correctly to the electrical control signal.
  • Equipment fails to initiate or sustain combustion when burner operation is required.
  • Physical damage, thread stripping, or severe oxidation appears on the valve body.

Equipment Compatibility:
The Resideo VR8205M2823T 1/2" Dual Direct Ignition Gas Valve Standard opening 24V is intended for gas-fired heating equipment requiring a 24V gas valve with a 1/2" connection, dual direct ignition configuration, and standard opening specification. Verify the equipment model, existing valve part number, connection size, ignition type, and voltage requirement against applicable manufacturer documentation before selection.

Technical Specifications:
Brand: Resideo
Part Number: VR8205M2823T
Product Type: Gas Valve
Connection Size: 1/2"
Ignition Type: Dual Direct Ignition
Opening Characteristic: Standard Opening
Voltage: 24V

Reviews
Write Your Own Review
You're reviewing:Resideo VR8205M2823T 1/2" Dual Direct Ignition Standard opening Gas Valve 24V
Your Rating
Product Questions (7)
Customer Questions
What maintenance is required for the Resideo VR8205M2823T Gas Valve?

Regularly inspect the valve for leaks, dirt, and corrosion. Ensure electrical connections are secure and the valve opens and closes smoothly. Periodically test for proper gas flow and ignition response to maintain safe and efficient operation.

What are common issues with the Resideo VR8205M2823T Gas Valve?

  • Valve failing to open or close properly.
  • Gas leaks around seals or fittings.
  • Ignition failure or delayed ignition.
  • Electrical connection or coil malfunctions.

What does the Resideo VR8205M2823T gas valve do in direct-ignition equipment?

The Resideo VR8205M2823T is used to control gas delivery in gas-fired equipment that uses a direct-ignition system.

How does the VR8205M2823T coordinate gas delivery with direct ignition?

The gas valve coordinates fuel availability with the equipment's direct-ignition control sequence so gas delivery follows the applicable heating demand.

How does the dual automatic configuration control fuel delivery?

The dual automatic gas valve uses two automatic operators to coordinate gas passage within the equipment's fuel-control sequence.

What should be checked before selecting a Resideo VR8205M2823T gas valve?

The existing valve identification, equipment model, ignition system, fuel type, connection arrangement, and applicable control requirements should be matched before selection.

What maintenance considerations apply to the VR8205M2823T gas valve?

The gas valve should be checked as part of appropriate equipment service to identify conditions that could affect automatic operation or gas-flow control. Follow the equipment manufacturer's servicing requirements for specific inspection and maintenance procedures.

Installation Steps

Step 1: Turn off all power and shut off the gas supply to the appliance for safety.

Step 2: Remove the access panel and disconnect wiring from the old gas valve.

Step 3: Carefully remove the existing valve and any fittings.

Step 4: Install the new valve, ensuring correct orientation and tight gas connections.

Step 5: Reconnect wiring, replace the panel, and restore power and gas.

Step 6: Test for gas leaks and proper ignition operation before full use.
