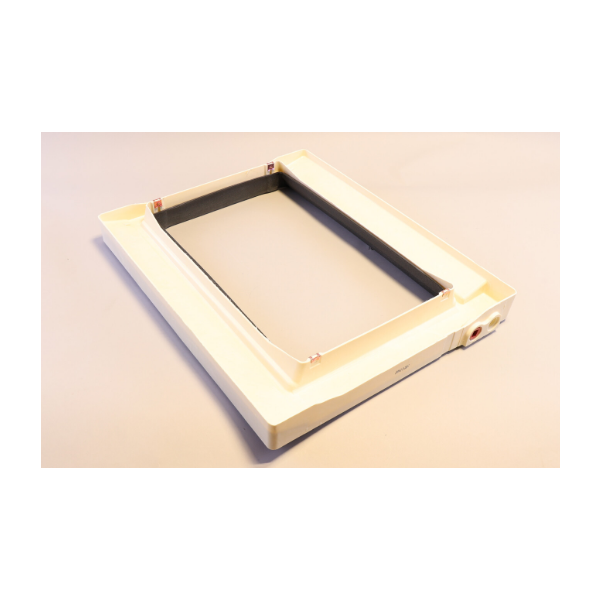

Lennox 15V98 Vertical Drain Pan

Special Price $237.11 Regular Price $263.19
In stock
SKU
15V98
The Lennox 15V98 Vertical Drain Pan, is a vital part of HVAC system and is specifically made to gather and drain the condensate – water that is removed from the air during operation. This pan is made of sturdy plastic and thus will not only aid in directing the condensation away from your HVAC unit, This is vertically positioned and not like the usual horizontal drain pans and this makes it easier for the drains to drain and also reduces the risk of blockage. This is small in size, having dimensions of 14 Inches wide, 23.45 Inches long, and 2.19 Inches high, and can easily be installed in small spaces commonly associated with HVAC systems.
Manufacturer:

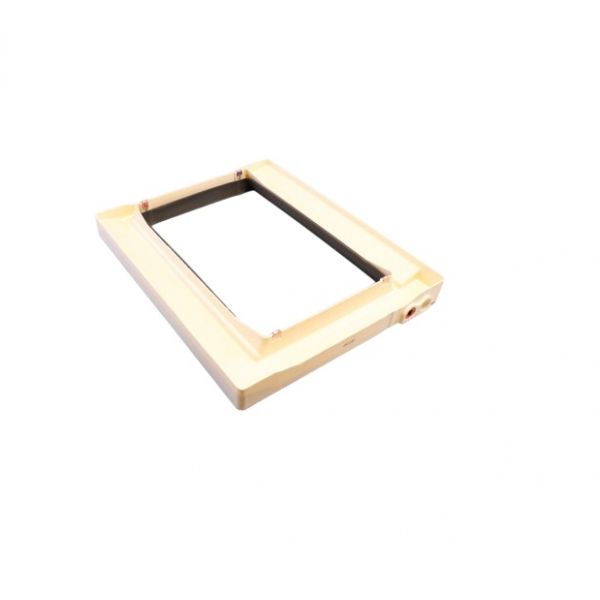

https://www.partshnc.com/media/catalog/product/1/5/15v98.jpg

Specifications

  • Size: 14 Inch
  • Length: 23.45 Inch
  • Width: 19.55 Inch
  • Height: 2.19 Inch
  • Material: Plastic
  • Type: Upflow Drain Pan
  • Measure: Unit(S)
  • Vertical
  • Weight: 6.8lbs
Manufacturer Name: Lennox
Product Number: 15V98
OEM Part Number: 15V98
Product Description: Vertical Drain Pan
Weight:6.8lbs/3084.43g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Write Your Own Review
You're reviewing:Lennox 15V98 Vertical Drain Pan
Your Rating
Customer Questions
What maintenance is required for the Lennox 15V98 Vertical Drain Pan?

Inspect the drain pan regularly for rust, cracks, or debris buildup and clean it to maintain proper drainage. Ensure the outlet is clear to prevent water overflow and potential system damage. Check alignment and seals to avoid leaks and support efficient condensate flow.

What are common issues with the Lennox 15V98 Vertical Drain Pan?

  • Rust or corrosion on pan surface.
  • Clogged drain outlet causing water backup.
  • Cracks or holes leading to leaks.
  • Improper alignment causing overflow or poor drainage.
  • Standing water buildup.
  • Seal deterioration.

Installation Steps

Step 1: Turn off HVAC power and ensure unit is cool and wear insulated gloves.

Step 2: Remove access panel and locate existing drain pan carefully.

Step 3: Slide out old pan carefully, avoiding sharp edges and debris.

Step 4: Position new vertical drain pan securely in place.

Step 5: Align drain outlet with condensate line and tighten fittings firmly.

Step 6: Reinstall panel, restore power, and check for leaks thoroughly.
