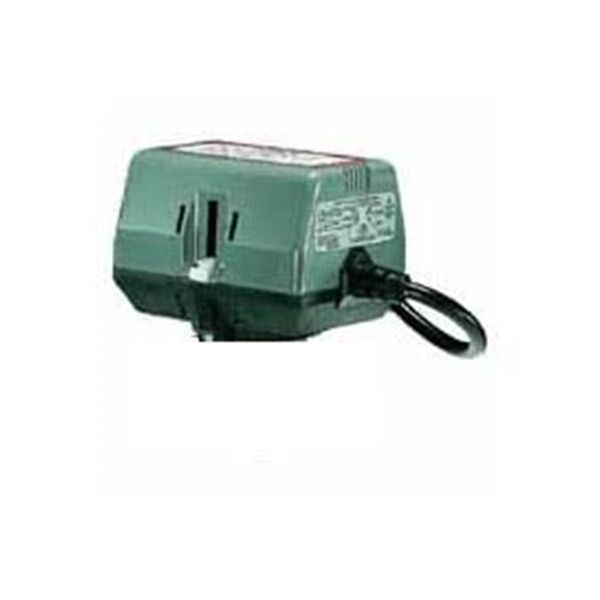

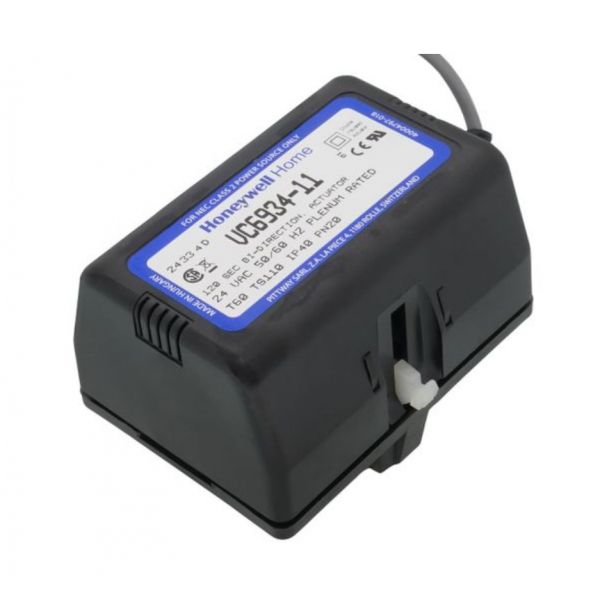

Resideo VC6934ZZ11 SP3T Floating Valve Actuator 24V
Special Price $146.51 Regular Price $168.48
In stock
SKU
VC6934ZZ11
The Resideo VC6934ZZ11 Floating Actuator is a robust component for HVAC systems and regulates the valves in cold, warm, and hot water systems. This actuator is powered by 24 VAC and has a drive time of 120 seconds and a stroke of 0.4", which can be used to control the flow of fluids. It uses a 3-state (SP3T) floating control signal to enable the valve to move with high accuracy. It consumes 6 VA and is built with a plastic body, it works properly in the temperature range of 32°F-150°F and humidity range of 5-95%RH, non-condensing. This actuator also features a 5 ft plenum-rated cable that makes its installation a bit easier.
Manufacturer:
Specifications
- Type: Valve Actuator
- Switching Type: SP3T Floating
- Return Type: Non-Spring Return
- Cable Length: 5 ft Plenum Rated
- Control Signal: SP3T (tri-state) Floating
- Temperature Range: 32°F to 150°F
- Relative Humidity Range: 5% to 95% Non-condensing
- Voltage: 24 VAC
- Drive Time: 120 sec
- Power Consumption: 6 VA
- Actuator Connection: Valve
- Connection Length: 5 ft
- Connection Type: Plenum-rated cable
- Stroke: 0.4"
- Housing Material: Plastic
- Dimensions (LxWxH): 2.7"x3.7"x2.8"
- Maximum Closeoff Pressure: 60 PSI
- Approvals and Standards: Listed 94-5V, CSA Certified: LR1322-367, 89/336/ECC, 73/23/EEC
- Compatible With: Use in cold, warm, and hot water applications
- Includes: Flexible Conduit Adapter
