Resideo VC2114ZZ11 2-Position Low Voltage Actuator 24V
Special Price $66.76 Regular Price $76.78
In stock
SKU
VC2114ZZ11

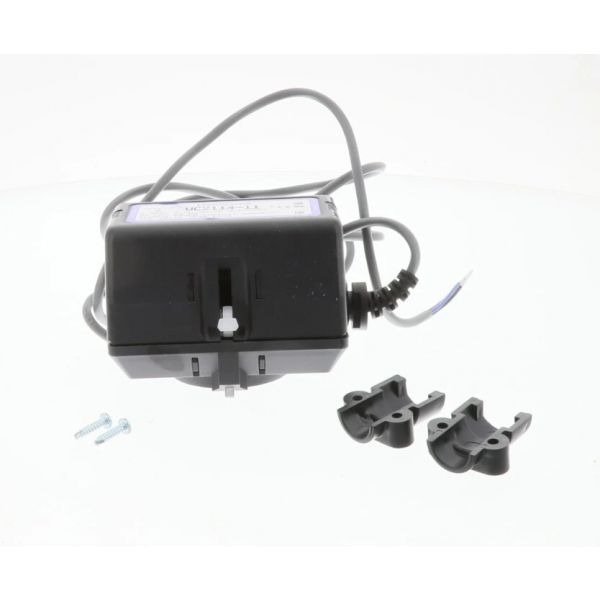

The Resideo VC2114ZZ11 is a 2-position Low Voltage Actuator that is a highly flexible device that is used in HVAC systems for controlling airflow and temperature. Powered by 24 VAC, this actuator has an SPST two-position control signal which enables it to open or close the dampers and valves as desired. It is designed to operate better in a temperature range of 32°F to 150°F and can operate in a relative humidity range of 5% to 95% non-condensing thereby making it suitable for most indoor applications. The power consumption of this actuator is only 6 VA, while it does not compromise the efficiency of the actuator. It is connected through a plenum-rated cable.
Manufacturer:
Specifications
- Application: HVAC
- Temperature: 32°F to 150°F
- Relative Humidity: 5% to 95% Non-condensing
- Voltage: 24 VAC
- Control Signal: SPST, Two position
- Power Consumption: 6 VA
- Connection Type: Plenum-rated cable
- Housing Material: Plastic
