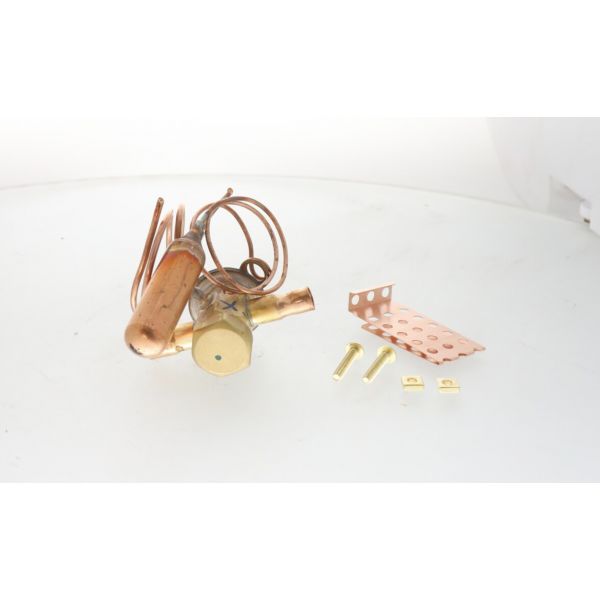

Trane VAL19951 Thermal Expansion Valve(TXV) With Strainer 3/8" X 1/2" 6-Ton R410 A

Special Price $71.31 Regular Price $82.00
In stock
SKU
VAL19951
The Trane VAL19951 is a 6-ton thermal expansion valve to be used in HVAC systems using the R410A refrigerant. A TXV is an essential part of air conditioning systems that regulate refrigerant flow. This serves as an automated pressure regulator and keeps the amount of refrigerant entering the evaporator coil correctly. It is sensed by the valve to operate, the valve using the temperature of refrigerant exiting the evaporator. When the temperature goes too low, the TXV opens and lets more refrigerant in to make sure the coil absorbs heat. However, the valve restricts the flow of the refrigerant if the temperature is too high so that the evaporator can’t freeze.
Manufacturer:
https://www.partshnc.com/media/catalog/product/v/a/val19951.jpg

Specifications

  • Weight: 0.74 lbs
  • Connection Type: ODF
  • Inlet Size: 3/4"
  • Size: 3/8 Inlet x 1/2 Outlet Incch
  • Type: Thermal Expansion Valve

PRODUCT OVERVIEW:
A thermal expansion valve regulates the flow of liquid refrigerant entering the evaporator according to the cooling demand of an HVAC system. The Trane VAL19951 Thermal Expansion Valve (TXV) with Strainer is an OEM refrigerant metering assembly designed to regulate refrigerant delivery and screen contaminants from the liquid refrigerant supply. Its combined metering and filtration functions support controlled evaporator operation and help protect the refrigerant circuit from debris.

THERMOSTATIC SENSING AND REFRIGERANT METERING:
The thermal expansion valve responds to temperature and pressure conditions at the evaporator outlet to adjust refrigerant flow. Its thermostatic sensing mechanism regulates the valve opening according to changes in evaporator outlet superheat. As high-pressure liquid refrigerant passes through the metering orifice, its pressure decreases before entering the lower-pressure evaporator. This controlled refrigerant supply supports the evaporator's heat absorption process and helps maintain the required superheat during changing cooling demand.

INTEGRATED STRAINER FILTRATION:
The integrated strainer screens debris and contaminants from the liquid refrigerant before they can reach the valve's internal metering passage. This filtration function helps reduce the risk of contamination-related restrictions that can interfere with refrigerant flow regulation. The strainer works alongside the metering mechanism to support consistent refrigerant delivery through the expansion valve assembly.

REPLACEMENT GUIDELINES:
Replacement is necessary when internal valve damage, mechanical sticking, or contamination-related restriction prevents the assembly from regulating refrigerant flow correctly. Before replacement, the technician should inspect the refrigerant circuit and determine whether the valve or integrated strainer is contributing to the metering problem. Confirm that the replacement matches the original equipment's refrigerant requirements, capacity, and connection configuration. Before ordering, verify part number VAL19951, the complete equipment model, and the relevant specifications against the manufacturer's technical documentation.

COMMON FAILURE SYMPTOMS:

  • The evaporator coil develops frost or ice buildup during normal cooling operation.
  • The HVAC system delivers insufficient cooling because refrigerant flow through the evaporator is restricted or improperly regulated.
  • The system operates with unusually low suction pressure during the cooling cycle.
  • Evaporator outlet superheat becomes abnormally high or fluctuates during operation.
  • Cooling performance becomes inconsistent because refrigerant delivery through the expansion valve assembly is unstable.

EQUIPMENT COMPATIBILITY:
The Trane VAL19951 Thermal Expansion Valve with Strainer is identified for selected Trane HVAC systems using R-410A refrigerant. Its 6-ton capacity and 3/8-inch inlet x 1/2-inch outlet connections are important matching characteristics. Verify the complete equipment model, refrigerant type, required capacity, and connection configuration against the manufacturer's technical documentation before ordering. Do not assume compatibility based on the Trane brand name alone.

TECHNICAL SPECIFICATIONS:
Product Identification:
Brand: Trane
Part Number/SKU: VAL19951
Product Type: Thermal Expansion Valve (TXV) with Strainer
Physical Specifications:
Inlet Connection: 3/8 inch
Outlet Connection: 1/2 inch
Connection Type: ODF
Operating Conditions:
Refrigerant: R-410A
Flow & Capacity Specifications:
Capacity: 6 tons

Write Your Own Review
You're reviewing:Trane VAL19951 Thermal Expansion Valve(TXV) With Strainer 3/8" X 1/2" 6-Ton R410 A
Your Rating
Customer Questions
What maintenance is required for the Trane VAL19951 Thermal Expansion Valve?

Inspect and clean the strainer regularly to prevent debris buildup that can restrict refrigerant flow. Verify superheat settings to ensure efficient operation and cooling performance. Check for refrigerant leaks and secure fittings during routine service. Ensure proper system pressure.

What are common issues with the Trane VAL19951 Thermal Expansion Valve?

  • Clogged strainer causing restricted refrigerant flow.
  • Erratic valve operation or sticking.
  • Incorrect superheat regulation leading to unstable cooling.
  • Underfeeding or overfeeding refrigerant to evaporator.
  • Reduced cooling efficiency or fluctuating system performance.

What does the Trane VAL19951 Thermal Expansion Valve with Strainer do?

It regulates liquid refrigerant flow into the evaporator according to cooling demand while its integrated strainer screens contaminants from the refrigerant supply.

How does the thermostatic sensing mechanism control refrigerant flow?

It responds to temperature and pressure conditions at the evaporator outlet and adjusts the valve opening to regulate refrigerant delivery and maintain the required superheat.

What is the purpose of the integrated strainer?

The strainer screens debris and contaminants from the liquid refrigerant before they reach the valve's internal metering passage, helping reduce the risk of contamination-related restrictions.

Why is the 6-ton capacity important when selecting this TXV?

The capacity rating is an important selection characteristic because the expansion valve must be matched to the cooling capacity and refrigerant requirements specified for the equipment.

How can I confirm whether the Trane VAL19951 is compatible with my HVAC system?

Check the complete equipment model and original valve part number against the manufacturer's parts documentation. Confirm that the R-410A refrigerant requirement, 6-ton capacity, and 3/8-inch x 1/2-inch connections match the equipment specifications.

Installation Steps

Step 1: Turn off power and recover refrigerant from the system using HVAC recovery equipment.

Step 2: Access the evaporator coil and locate the existing valve and strainer assembly.

Step 3: Disconnect sensing bulb, equalizer line, and refrigerant connections carefully.

Step 4: Remove the old valve and install the new thermal expansion valve, ensuring correct flow direction.

Step 5: Braze connections using nitrogen purge to secure oxidation inside tubing.

Step 6: Reinstall and insulate sensing bulb, then evacuate, recharge, and test system for proper superheat control and leaks.
