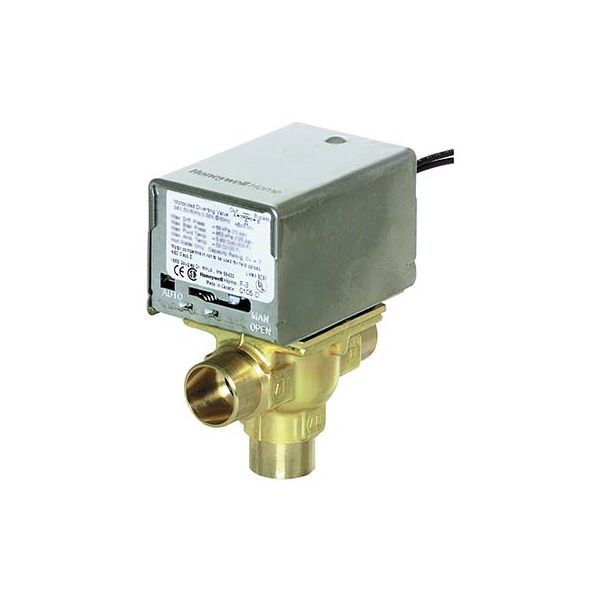

Resideo V8044E1011 Zone Valve 3/4" Sweat 7Cv 24V Diverting
Special Price $157.74 Regular Price $181.40
In stock
SKU
V8044E1011
The Resideo V8044E1011 Zone Valve is a 3/4” sweat valve designed to be installed in HVAC systems. This 24V diverting valve has a brass body and a Buna-N (NBR) rubber ball/plug/disc for reliable use. A flow coefficient of 7.0 Cv and a pressure rating of 125 PSI make it to effectively control the flow of hot and cold water in a heating or cooling system. The valve is UL listed (File MH11826) and has a maximum operating temperature of 125°F. It has a manual opener for convenience and a three-way diverting pattern, which means that Port A is blocked.
Manufacturer:
Specifications
- Type: Zone Valve
- Valve Ball/Plug Material: Buna-N (NBR) Rubber
- Valve Disc Material: Buna-N (NBR) Rubber
- Approvals and Standards: UL Listed- File MH11826
- Color: Brass
- Includes: Manual Opener
- Dimensions: 60 mm x 90 mm x 122 mm
- Max Temperature: 125°F
- Connection Type: Sweat
- Flow Coefficient: 7.0 Cv
- Pressure Rating: 125 PSI
- Valve Body Material: Brass
- Valve Body Pattern: Three-way, Diverting
- Valve Seat Material: Brass
- Valve Start Position: Port A Closed
