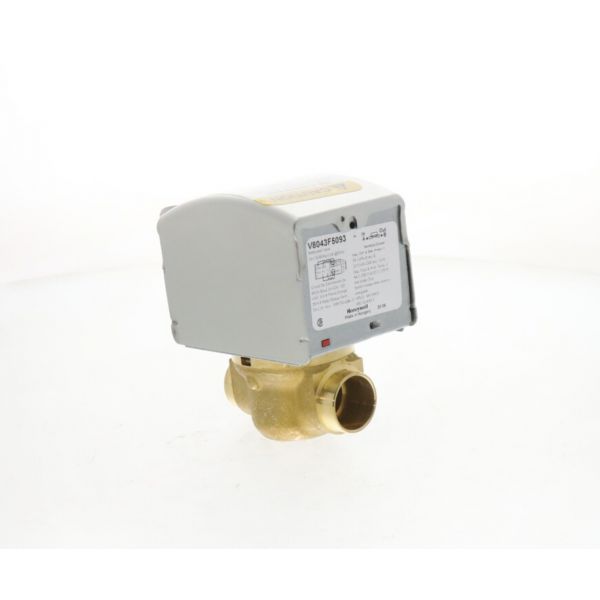

Resideo V8043F5093 2-Way N/C Zone Valve 24VAC 3/4" Sweat
Special Price $157.27 Regular Price $180.86
In stock
SKU
V8043F5093
The Resideo V8043F5093 Zone Valve is a 3/4” sweat connection valve with fine control for use in hydronic heating systems. This zone valve is 24V and has a brass body, Buna-N (NBR) rubber valve ball and a plug for longer life and reliability. The unit has an auxiliary end switch and a manual opener which makes it more flexible and easy to maintain. This valve has an 8 Cv flow coefficient and can handle pressure ratings up to 300 PSI for residential and light commercial HVAC use. This valve is usually shut but when the system needs heat, it opens for zoning and energy conservation.
Manufacturer:
Specifications
- Type: Zone Valve
- Valve Type: 2-Way On/Off
- Application: Hydronic Control
- Dimensions: 2.38" x 3.69" x 4.38"
- Connection Size: 3/4"
- Max Temperature: 125°F
- Connection Type: Sweat
- Flow Coefficient: 8 Cv
- Voltage: 24 VAC
- Colour: Brass
- Static Pressure Rating: 300 PSI
- Valve Body Material: Brass
- Valve Seat Material: Brass
- Valve Position: Normally Closed
- Valve Ball/Plug Material: Buna-N (NBR) Rubber
- Valve Body Pattern: Two-way, Straight Through
- Includes: End switch enclosure, Manual Opener
- Approvals and Standards: CSA C/US- File 1322
