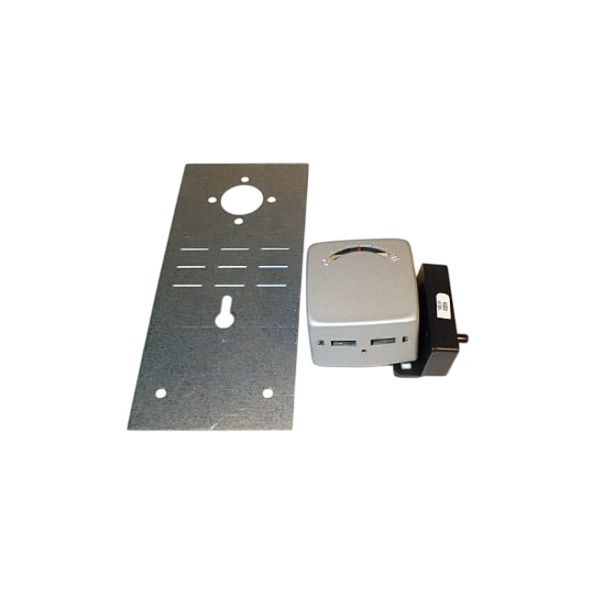

main product photo

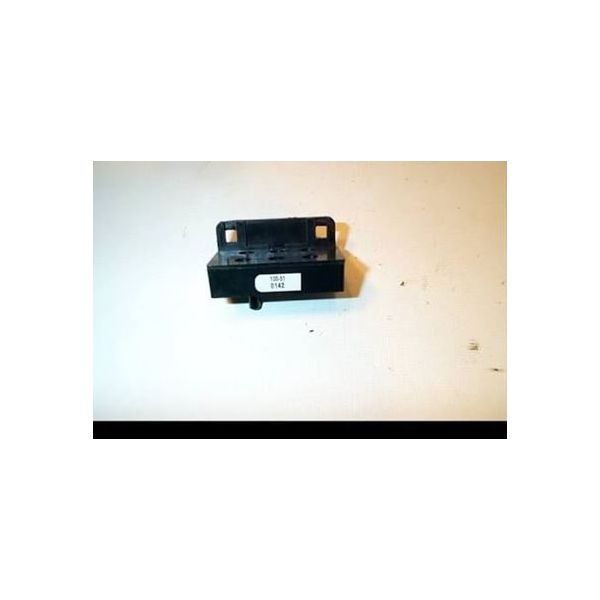

Schneider Electric (Barber Colman) 2298-061 Unit Ventilator Thermostat DA 65°F-85°F

Be the first to review this product
Special Price $388.63 Regular Price $431.38
In stock
SKU
2298-061

The Schneider Electric (Barber Colman) 2298-061 Unit Ventilation Thermostat with Dual Action and a temperature range of 65 to 85 degrees Fahrenheit is a critical component used to control temperature in HVAC systems, notably in unit ventilation configurations. To maintain the appropriate temperature range, this thermostat works by detecting the outside temperature and turning on the heating or cooling system. It is compatible with unit ventilation systems and guarantees accurate temperature management, maximizing indoor comfort. The dual-action capability allows for both cooling and heating, giving you flexibility to adjust to shifting weather conditions. The Schneider Electric 2298-061 thermostat is an essential part of HVAC systems because it efficiently controls temperature, improving energy efficiency, cutting down on operating expenses, and creating a comfortable indoor atmosphere.

Add to Wish List
HVAC Controls & Electrical, Control & Sensing Devices
Manufacturer:
https://www.partshnc.com/media/catalog/product/2/2/2298-061.jpg

Product Overview:
Regulates room temperature in compatible unit ventilator systems through direct-acting temperature control. The Schneider Electric (Barber-Colman) 2298-061 Unit Ventilator Thermostat is designed to respond to changes in ambient temperature and support heating or cooling regulation within its specified 65°F–85°F operating range.

Temperature-Sensing Mechanism:
A remote bimetal sensing element responds to changes in return-air temperature and transfers the resulting thermal movement to the pneumatic control mechanism. This temperature-responsive action varies the branch air pressure to provide proportional control of connected pneumatic devices.

Pneumatic Control Operation:
The pneumatic control mechanism operates with a nominal main air pressure of 20 PSIG and a maximum pressure of 30 PSIG. A fixed 4°F throttling range governs the temperature interval for output modulation, while the 9 PSIG calibration point establishes the controller's specified calibration reference. A serrated thumb-wheel provides manual adjustment of the temperature setting.

Replacement Guidelines:
The Schneider Electric (Barber-Colman) 2298-061 Unit Ventilator Thermostat may require replacement if the existing unit is physically damaged or its essential temperature-control functions no longer operate as intended. Replacement may be appropriate when the thermostat cannot reliably regulate the unit ventilator according to the selected temperature setting.

Common Failure Symptoms:

  • Inconsistent room temperature regulation.
  • Unresponsive pneumatic output during temperature changes.
  • Unstable temperature control around the selected setpoint.
  • Connected pneumatic actuators failing to respond consistently.
  • Inaccurate temperature regulation despite thermostat adjustment.

Equipment Compatibility:
Designed for use with compatible Schneider Electric (Barber-Colman) unit ventilator systems requiring direct-acting temperature control. The 2298-061 is intended for applications where space temperature regulation supports unit ventilator operation. Verify compatibility with the existing equipment model and control configuration before installation.

Technical Specifications:
Brand: Schneider Electric (Barber Colman)
Part Number: 2298-061
Product Type: Unit Ventilator Thermostat
Equipment Type: Unit Ventilators, Induction Units, Fan Coil Units

Control Characteristics:
Setpoint Range: 65°F–85°F
Throttling Range: 4°F Fixed

Reviews
Write Your Own Review
You're reviewing:Schneider Electric (Barber Colman) 2298-061 Unit Ventilator Thermostat DA 65°F-85°F
Your Rating
Product Questions (5)
Customer Questions
What is the primary function of the Schneider Electric 2298-061 thermostat?

It regulates unit ventilator operation within a 65°F–85°F temperature range.

How does the Schneider Electric 2298-061 thermostat operate?

It senses room temperature changes and adjusts pneumatic output pressure to control connected HVAC components.

How can I verify that the Schneider Electric 2298-061 OEM replacement thermostat is compatible with my equipment?

Match the part number, direct-acting configuration, 65°F–85°F range, pneumatic connections, and mounting requirements.

When should the Schneider Electric 2298-061 thermostat be replaced?

Replace it when damaged or when its temperature-sensing and pneumatic control functions fail.

What are the common signs of a faulty Schneider Electric 2298-061 thermostat?

Common signs include inaccurate temperature response, inconsistent pneumatic output, and poor unit ventilator temperature control.
