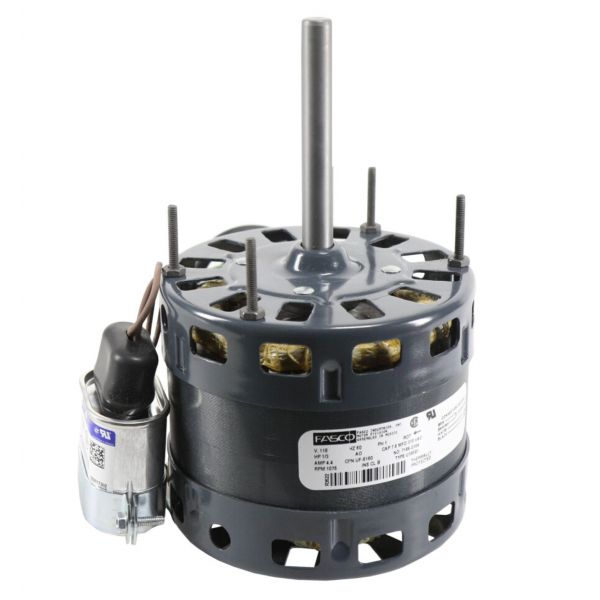

Detroit Radiant UF-5150 Axial Fan Motor 1/3 HP 1075 RPM

Special Price $284.36 Regular Price $315.64
In stock
SKU
UF-5150
The Detroit Radiant UF-5150 1/3 HP Axial Fan Motor 1075 RPM is an electric part that is used to cause axial movement, of fans in HVAC systems and industrial air movement applications. It produces and rotates to transform electrical power into constant rotary motion to provide large quantities of air through ductwork or open spaces. This axial motor is usually mounted in the air handlers or rooftop units or ventilation assembly to provide steady airflow which supports efficient temperature control and balanced performance of the system as a part of the entire HVAC system.
https://www.partshnc.com/media/catalog/product/u/f/uf-5150-detroit-radiant_partshnc.jpg

Air-moving systems use axial fan assemblies to support airflow within their intended applications. The Detroit Radiant UF-5150 serves as the motor for the axial fan assembly, supporting the component responsible for maintaining air movement through the system. Its role contributes to the proper operation of the fan assembly and supports the overall airflow function of the application.

Axial Fan Motor Operating Principle:
An electric motor converts supplied electrical energy into mechanical rotation through electromagnetic action. When electrical power is applied, the motor develops torque that causes its rotating element and shaft to turn. The shaft transfers this rotational movement to the connected axial fan, whose blades move air primarily along the fan's axis.

Motor Output and Fan Operation:
The motor's horsepower rating identifies its specified mechanical output capability, while RPM identifies its rotational speed. The Detroit Radiant UF-5150 is rated at 1/3 HP and 1075 RPM. The motor's rotational output drives the axial fan blades, allowing the fan to maintain the airflow produced during operation.

Replacement Guidelines:
Replacement may be appropriate when the existing motor fails to start or can no longer provide reliable rotational output to the axial fan. It may also be necessary when intermittent operation, unusual noise, or excessive vibration affects dependable fan operation. Before replacing the UF-5150 Axial Fan Motor, verify the original part number and confirm that the replacement meets the applicable equipment requirements.

Common Failure Symptoms:

  • Motor fails to start when fan operation is required
  • Fan operates intermittently or stops unexpectedly
  • Unusual noise occurs during motor or fan operation
  • Excessive vibration occurs while the fan is running
  • Fan rotation becomes irregular during operation

Equipment Compatibility:
The Detroit Radiant UF-5150 is identified as an axial fan motor for use with the corresponding fan application. When selecting this motor, compare the existing part number and applicable equipment information with the documented product characteristics and original equipment requirements.

Technical Specifications:
Part Identification:
Brand: Detroit Radiant
Part Number: UF-5150
Product Type: Axial Fan Motor

Mechanical:
Horsepower: 1/3 HP
Rotational Speed: 1075 RPM

Write Your Own Review
You're reviewing:Detroit Radiant UF-5150 Axial Fan Motor 1/3 HP 1075 RPM
Your Rating
Customer Questions
Which component is identified by Detroit Radiant part number UF-5150?

The Detroit Radiant UF-5150 is an axial fan motor that provides the rotational drive needed to operate a connected axial fan.

How does an axial fan motor move air through the airflow path?

The motor produces mechanical rotation that turns the axial fan blades. The rotating blades move air primarily along the fan's rotational axis.

What does the 1075 RPM rating indicate for the UF-5150?

The 1075 RPM rating identifies the motor's specified rotational speed during operation. It describes the speed at which the motor is rated to rotate.

When selecting an axial fan motor, which information should be compared?

Compare the existing part number and applicable equipment information with the documented product characteristics and original equipment requirements. Matching horsepower or RPM alone does not establish compatibility.

Before installing the UF-5150, what should be verified?

Verify the original part number and applicable equipment information, then confirm that the replacement meets the applicable equipment requirements before installation.
