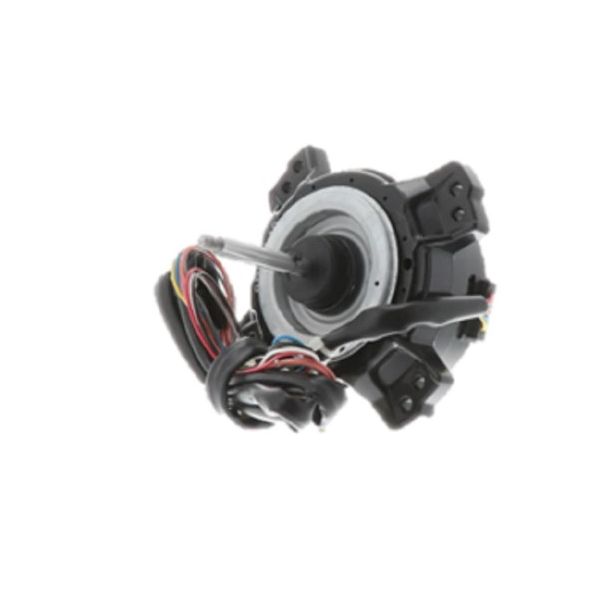

Mitsubishi Electric U01A01301 Outdoor Fan Motor

Be the first to review this product
Special Price $139.88 Regular Price $160.86
In stock
SKU
U01A01301
The Mitsubishi Electric U01A01301 Outdoor Fan Motor is a high performance part designed for HVAC equipment It operates at 60 Hz and 208-230 VAC 900 RPM. It is used in the cooling and heat exchange system of HVAC units such as air conditioners and heat pumps because it is an exterior fan motor. For this reason, the motor is able to drive the fan blades to allow better airflow into the condenser unit as well as allow better heat dissipation. This prevents the system from getting hot and increases the general performance while maintaining its reliability and effectiveness.
Add to Wish List
Motors & Capacitors, Motors & Components
Manufacturer:
https://www.partshnc.com/media/catalog/product/u/0/u01a01301_mitsubishi-electric_partshnc.png

Specifications

  • Weight: 3.24 lbs
  • Type: Outdoor Fan Motor
  • Voltage: 208-230 VAC
  • Frequency: 60 Hz
  • Speed: 900 RPM

Outdoor HVAC units use fan motors to provide the rotation needed for air circulation through the outdoor section. The Mitsubishi Electric U01A01301 is an outdoor fan motor that supplies the mechanical drive for its connected fan assembly. This rotation enables the fan to move air through the outdoor unit and support its heat-transfer process.

Motor Operation and Mechanical Output:
The motor converts electrical energy into mechanical rotation through its operating mechanism. Its shaft transfers this rotational output to the connected fan, providing the mechanical drive needed for fan operation.

Fan Drive and Outdoor Air Movement:
The connected fan circulates air through the outdoor section as it rotates. This airflow supports heat transfer between the outdoor unit's heat exchanger and the surrounding air, while the motor provides the mechanical rotation required to drive the fan.

Replacement Guidelines:
Replacement may be appropriate when a confirmed motor fault prevents the fan from receiving the mechanical drive required for normal operation. Before ordering, compare the existing part number with the equipment requirements and verified motor specifications.

Common Failure Symptoms:

  • Fan fails to start
  • Intermittent fan operation
  • Irregular fan rotation
  • Unusual humming or grinding noise
  • Excessive vibration during operation

Equipment Compatibility:
The Mitsubishi Electric U01A01301 is an outdoor fan motor used in compatible HVAC units to drive the fan and support airflow. Check the equipment manual or parts list to confirm which models use this motor and ensure it matches your unit before ordering.

Technical Specifications:
Brand: Mitsubishi Electric
Part Number: U01A01301
Product Type: Outdoor Fan Motor

Reviews
Write Your Own Review
You're reviewing:Mitsubishi Electric U01A01301 Outdoor Fan Motor
Your Rating
Product Questions (7)
Customer Questions
What maintenance is required for the Mitsubishi Electric U01A01301 Fan Motor?

Regularly inspect the motor for dust, debris, and loose connections. Lubricate bearings as recommended by the manufacturer. Ensure proper airflow around the unit to prevent overheating. Always disconnect power before performing any maintenance for safety.

What are common issues with the Mitsubishi Electric U01A01301 Fan Motor?

  • Reduced airflow or uneven cooling.
  • Excessive noise or vibration during operation.
  • Motor not starting or intermittent operation.
  • Overheating due to restricted airflow or electrical faults.

What is the function of the Mitsubishi Electric U01A01301 Outdoor Fan Motor?

It provides the mechanical rotation needed to drive the outdoor fan and support air circulation through the unit's outdoor section.

How does the outdoor fan motor contribute to heat transfer?

The motor drives the fan, which circulates air through the outdoor heat exchanger to support heat transfer between the unit and the surrounding air.

What could cause the outdoor fan to stop rotating?

Possible causes include a motor fault, an electrical supply issue, a control problem, or a mechanical obstruction. The underlying cause should be diagnosed before replacing the motor.

Can another outdoor fan motor replace the U01A01301?

Not automatically. The replacement must match the required part number or be a verified equivalent, with the correct electrical requirements, mounting arrangement, shaft configuration, and equipment application.

How can I confirm whether the U01A01301 fits my HVAC unit?

Check the unit's model-specific parts documentation to confirm that the U01A01301 or an approved equivalent is specified for the application.

Installation Steps

Step 1: Turn off power to the HVAC unit before starting.

Step 2: Remove the old fan motor by disconnecting wires and unfastening mounting screws.

Step 3: Position the new motor in the bracket, ensuring correct alignment.

Step 4: Secure the motor with screws and reconnect electrical wiring per the unit’s diagram.

Step 5: Test rotation manually to confirm free movement.

Step 6: Restore power and verify the fan runs smoothly.
