Carrier EA660005 Thermal Expansion Valve Kit With Insulation

Special Price $161.94 Regular Price $204.50
In stock
SKU
EA660005

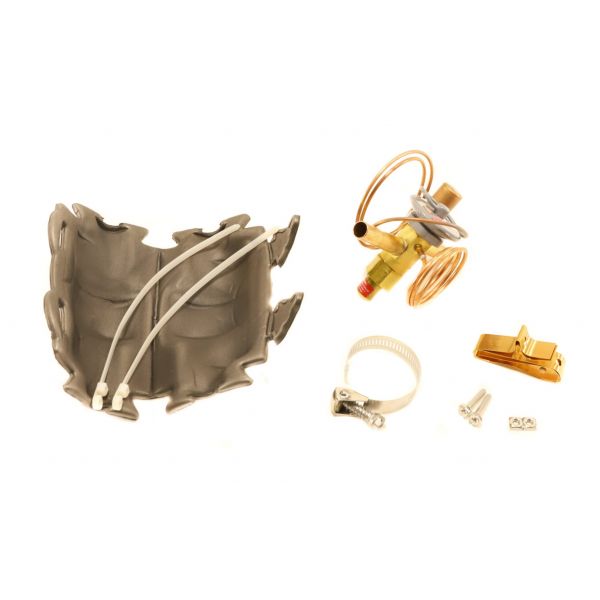

The Carrier EA660005 Thermal Expansion Valve Kit With Insulation is a replacement that is intended to be used in air condition systems. It comprises a TXV, an essentialaccessory in refrigeration and air conditioning. This TXV controls the amount of refrigerant that is allowed into the evaporator coil by a bi-metal spring. This spring adjusts itself to accommodate temperature fluctuations to provide the better cooling and efficiency during this spring. It also has insulation to ensure that it is properly installed and also to ensure that it will perform as required.
Manufacturer:
https://www.partshnc.com/media/catalog/product/e/a/ea660005.jpg

Specifications

  • Weight: 1.77lbs
  • Length: 10.47 "
  • Width: 9.37 "
  • Height: 5.66 "e
  • Composition: Bi-Metal

PRODUCT OVERVIEW:
A thermal expansion valve regulates liquid refrigerant flow into the evaporator according to changing cooling demands. The Carrier EA660005 Thermal Expansion Valve (TXV) Kit is an OEM refrigerant metering assembly supplied with insulation. Its thermostatic mechanism responds to evaporator operating conditions and adjusts the metering opening to control refrigerant delivery. The included insulation helps protect the sensing arrangement from unwanted ambient temperature influence, supporting consistent valve operation.

REFRIGERANT FLOW CONTROL:
The TXV regulates refrigerant delivery by throttling high-pressure liquid refrigerant through an internal metering orifice. As refrigerant passes through the valve, its pressure decreases before entering the evaporator. The diaphragm and thermostatic mechanism respond to pressure and temperature feedback, adjusting the metering opening according to evaporator requirements. This process helps maintain suitable superheat and controlled refrigerant feeding as system loads change.

EVAPORATOR BALANCE & THERMAL SENSING:
The valve uses temperature feedback from the sensing bulb to regulate refrigerant delivery into the evaporator. Changes in suction-line temperature influence the thermostatic element, which adjusts the internal metering mechanism to maintain the required superheat. The included insulation helps reduce the influence of surrounding air temperature on the sensing arrangement, allowing it to respond more accurately to suction-line conditions.

REPLACEMENT GUIDELINES:
Replace the Carrier EA660005 Thermal Expansion Valve Kit when physical damage, internal contamination, diaphragm failure, loss of thermostatic charge, or mechanical binding interferes with refrigerant regulation. Damaged or deteriorated insulation may also affect the sensing arrangement and contribute to inconsistent valve response. A malfunctioning valve can cause improper refrigerant feeding, abnormal superheat, and reduced cooling performance. Since replacement requires opening the refrigerant circuit, a qualified HVAC technician should perform the work, inspect the sensing components, and verify system operation afterward. Before purchasing, verify the part number and all relevant specifications against the original equipment documentation to ensure the replacement matches the system requirements.

COMMON FAILURE SYMPTOMS:

  • The valve may respond inconsistently to changes in evaporator temperature.
  • Cooling performance may vary as refrigerant delivery becomes irregular.
  • Superheat readings may fluctuate because of inaccurate thermal feedback.
  • The sensing bulb insulation may become damaged, detached, or deteriorated.

EQUIPMENT COMPATIBILITY:
The Carrier EA660005 is an OEM Thermal Expansion Valve Kit supplied with insulation for compatible Carrier equipment. Verify the part number and included insulation arrangement against the original equipment documentation before selecting a replacement. For exact compatible equipment models, refer to the manufacturer's documentation. Do not assume compatibility based on the manufacturer name alone.

TECHNICAL SPECIFICATIONS:
Product Identification:
Manufacturer: Carrier
Part Number/SKU: EA660005
Product Type: Thermal Expansion Valve (TXV) Kit
Included Components:
Included Accessory: Insulation

Write Your Own Review
You're reviewing:Carrier EA660005 Thermal Expansion Valve Kit With Insulation
Your Rating
Customer Questions
What maintenance is required for the Carrier EA660005 Thermal Expansion Valve Kit?

Regularly inspect the valve and insulation for signs of wear, leaks, or damage. Ensure proper refrigerant flow and check for blockages in the system. Keep surrounding components clean and secure. Proper maintenance helps maintain system efficiency and prevents unexpected operational issues.

What are common issues with the Carrier EA660005 Thermal Expansion Valve Kit?

  • Internal clogging from debris or contaminants.
  • Insulation deterioration leading to temperature instability.
  • Improper refrigerant flow causing inconsistent cooling performance.
  • Valve sticking or failing to regulate pressure correctly.

Why is insulation included with the Carrier EA660005 TXV Kit?

The insulation helps reduce ambient temperature influence on the sensing arrangement, supporting more consistent temperature feedback to the valve.

How can damaged sensing bulb insulation affect TXV operation?

Damaged or missing insulation can expose the sensing arrangement to surrounding temperature changes, potentially affecting its response and refrigerant metering accuracy.

What is the relationship between the sensing bulb and the TXV's metering mechanism?

The sensing bulb detects suction-line temperature and transmits a pressure response through its capillary connection to the power element, influencing the valve opening.

Can the EA660005 insulation be treated as an optional accessory?

The kit is supplied with insulation as part of its specified configuration. Follow the equipment manufacturer's requirements when replacing the assembly.

What should be inspected when diagnosing inconsistent operation of this TXV kit?

A technician should examine the valve mechanism, sensing bulb attachment, insulation condition, capillary connection, refrigerant charge, and evaporator operating conditions.

Installation Steps

Step 1: Shut off power and recover refrigerant from the system before opening any lines.

Step 2: Remove the old valve and clean and inspect inlet/outlet connections for debris.

Step 3: Install the new valve kit in correct flow direction and braze or secure fittings tightly.

Step 4: Attach sensing bulb firmly to suction line and insulate it properly for accuracy.

Step 5: Evacuate system, recharge with specified refrigerant, and check for leaks.

Step 6: Restore power and check superheat, cooling performance, and stable operation.
