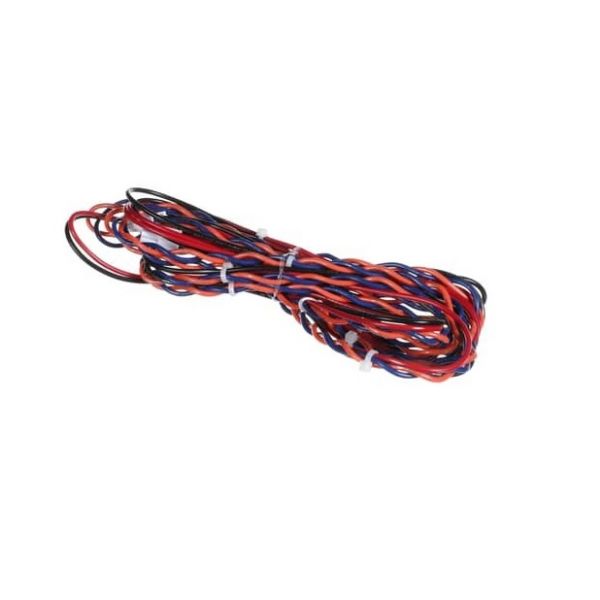

main product photo

Trane WIR12863 IMC Communication Harness Wire M-M 1 ft

Rating:
5 5 1
1  Review Add Your Review
Special Price $97.83 Regular Price $136.95
In stock
SKU
WIR12863
Trane WIR12863 Wire Harness IMC Communication M-M is an electrical connection component used, to provide transmission between control modules in HVAC systems. It operates using a 1-foot harness with IMC communication M-M connectors, allowing data signals to flow between compatible control boards when used in rooftop units and air-handling HVAC systems. It is attached between two communication ports, and the connectors are attached to the terminals on the control module, and the cable is passed through the equipment control compartment.
Add to Wish List
HVAC Controls & Electrical, Wire Harnesses
Manufacturer:
https://www.partshnc.com/media/catalog/product/w/i/wir12863.jpg
Write Your Own Review
You're reviewing:Trane WIR12863 IMC Communication Harness Wire M-M 1 ft
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Trane WIR12863 Communication Wire Harness ?

Regularly inspect the harness for signs of wear, fraying, or loose connections. Ensure connectors are secure and clean. Preventive checks help avoid communication errors. Handle wires carefully to prevent damage or electrical hazards.

What are common issues with the Trane WIR12863 Communication Wire Harness?

  • Loose or disconnected connectors.
  • Frayed or damaged wires.
  • Intermittent communication errors.
  • Signal interference due to poor installation.

Installation Steps

Step 1: Turn off all power to the system before installation.

Step 2: Identify the two male connectors to be linked by the harness.

Step 3: Route the wire harness, avoiding sharp edges, heat, or moving parts.

Step 4: Connect each end securely to the corresponding male ports.

Step 5: Ensure the harness is not under tension and secure with cable ties if needed.

Step 6: Restore power and verify communication between connected devices.
