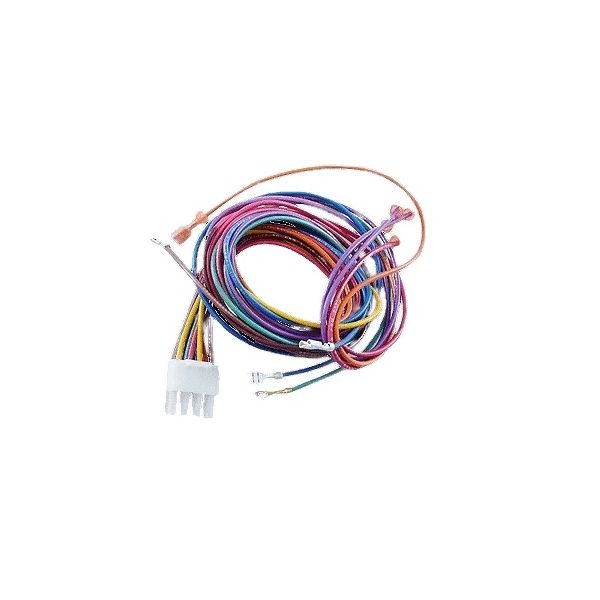

main product photo

Trane WIR07185 Compressor Wiring Harness

Rating:
5 5 1
1  Review Add Your Review
Special Price $183.32 Regular Price $210.82
In stock
SKU
WIR07185
The WIR07185 Compressor Wiring Harness is a component of HVAC systems that serves as a link between the compressor and the electrical control of the system. It also assists in the safe dispensing of electrical power to the required compressor motor in order to perform efficiently. This harness enables the system to operate with high reliability because it offers a safe connection that is also insulated from possible electrical problems and risks. It is of general application in the Trane air conditioning and heat pump parts that compose some parts of these units.
Add to Wish List
Refrigeration & Cooling, Compressors
Manufacturer:
https://www.partshnc.com/media/catalog/product/w/i/wir07185.jpg

Specifications

  • Type: Compressor Wiring Harness
    Write Your Own Review
    You're reviewing:Trane WIR07185 Compressor Wiring Harness
    Your Rating
    Product Questions (2)
    Customer Questions
    What maintenance is required for the Trane WIR07185 Wiring Harness?

    Inspect the harness regularly for frayed wires, loose terminals, or signs of heat damage. Ensure connections are tight and corrosion‑free. Keep the area clean and dry, and always disconnect power before checking or servicing any wiring.

    What are common issues with the Trane WIR07185 Wiring Harness?

    • Loose or disconnected wires.
    • Corroded or oxidized terminals.
    • Frayed insulation causing shorts.
    • Intermittent electrical connectivity.
    • Heat damage from nearby components.

    Installation Steps

    Step 1: Turn off power to the HVAC unit at the breaker to avoid electrical shock.

    Step 2: Access the compressor compartment and locate the existing wiring harness.

    Step 3: Carefully disconnect the old harness, noting wire positions.

    Step 4: Connect the new harness to the compressor terminals, matching connections exactly.

    Step 5: Secure wires away from moving parts using clips.

    Step 6: Reassemble the panel, restore power, and test system operation.
