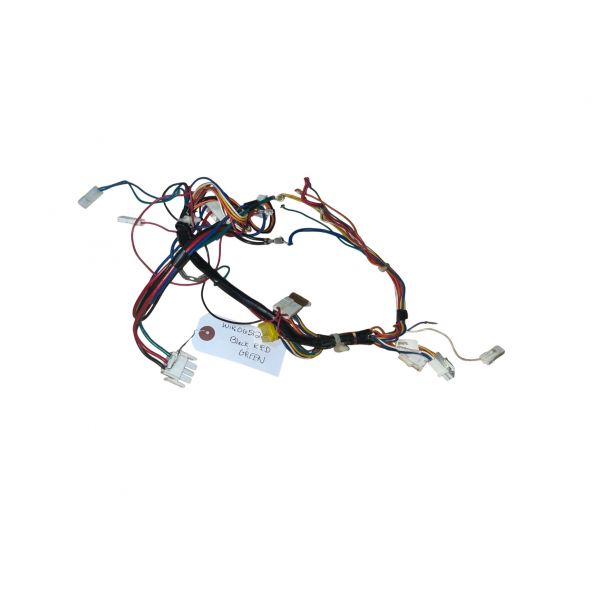

Trane WIR06512 3-Pin Wire Harness Junction 16 AWG BK&RD&GR

Be the first to review this product
Special Price $91.82 Regular Price $127.95
In stock
SKU
WIR06512
The Trane WIR06512 Wire Harness Junction with 16 AWG conductors is an assembled electrical connector that is used to connect two or more circuits in HVAC systems. It packages three color-coded wires into one harness to ease the routing and connection of the control boards, sensor, switches or actuators when servicing. This is installed in the air handlers, furnaces, or condensing units to assure electrical continuity and proper polarity of the component. this maintains the order of wiring and reliability of signal and power distribution under normal operating conditions.
Add to Wish List
HVAC Controls & Electrical, Wire Harnesses
Manufacturer:
https://www.partshnc.com/media/catalog/product/w/i/wir06512.jpg
Write Your Own Review
You're reviewing:Trane WIR06512 3-Pin Wire Harness Junction 16 AWG BK&RD&GR
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Trane WIR06512 Wire Harness Junction?

Regularly inspect the harness for frayed wires, loose connections, or corrosion. Ensure pins are properly seated and clean any debris or oxidation. Proper care prevents electrical faults and ensures accurate operation of connected components.

What are common issues with the Trane WIR06512 Wire Harness Junction?

  • Frayed or damaged wires.
  • Loose or corroded pins.
  • Intermittent electrical signals.
  • Short circuits or blown fuses.

Installation Steps

Step 1: Turn off all power to the system before installation.

Step 2: Identify the correct terminals or components for the black, red, and green wires.

Step 3: Route the harness carefully, avoiding sharp edges or heat sources.

Step 4: Connect each wire securely to its corresponding terminal or connector.

Step 5: Use cable ties to organize and secure the harness, preventing strain or interference.

Step 6: Restore power and test the system for proper function.
