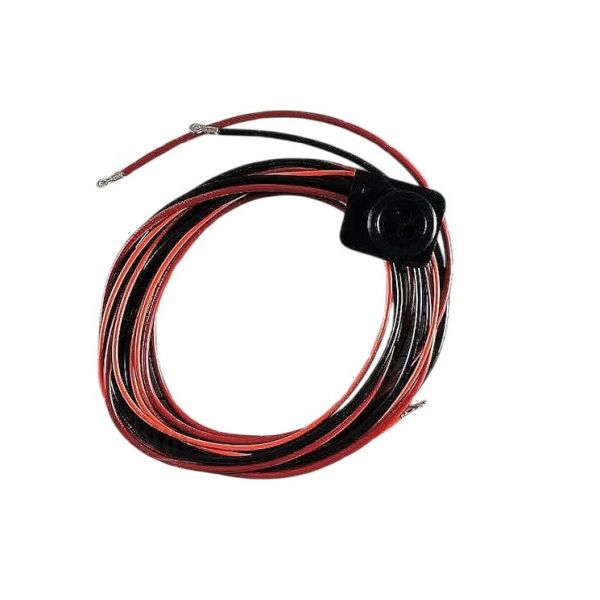

main product photo

Trane WIR02695 Wire Harness Single Scroll Compressor

Be the first to review this product
Special Price $114.04 Regular Price $158.95
In stock
SKU
WIR02695
The Trane WIR02695 Single Scroll Compressor Wire Harness is an electrical element that is needed in the HVAC systems to control and connect the power and signals to the compressor. This system works on the concept of transferring electrical current and communication signals to make the compressor and other elements work. It is often used in commercial and residential air conditioning and heat pump systems, as it assists in ensuring the proper operation of the compressor, controls electrical current, and ensures the correct conditions under the normal operation of the system.
Add to Wish List
Refrigeration & Cooling, Compressors
Manufacturer:
https://www.partshnc.com/media/catalog/product/w/i/wir02695.jpg
Write Your Own Review
You're reviewing:Trane WIR02695 Wire Harness Single Scroll Compressor
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Trane WIR02695 Wire Harness?

Regularly inspect the harness for frayed wires, loose connections, or signs of corrosion. Ensure connectors are fully seated and free of debris. Proper care prevents electrical faults and ensures accurate operation of the scroll compressor.

What are common issues with the Trane WIR02695 Wire Harness?

  • Frayed or damaged wires.
  • Loose or corroded connectors.
  • Intermittent electrical signals.
  • Damaged insulation leading to short circuits.

Installation Steps

Step 1: Turn off all power to the system before beginning installation.

Step 2: Identify the correct connections on the single scroll compressor and control board.

Step 3: Route the wire harness carefully, avoiding sharp edges or hot surfaces.

Step 4: Connect each wire to its corresponding terminal, ensuring a secure fit.

Step 5: Use cable ties to organize and secure the harness, preventing strain or interference.

Step 6: Restore power and test compressor operation for proper function.
