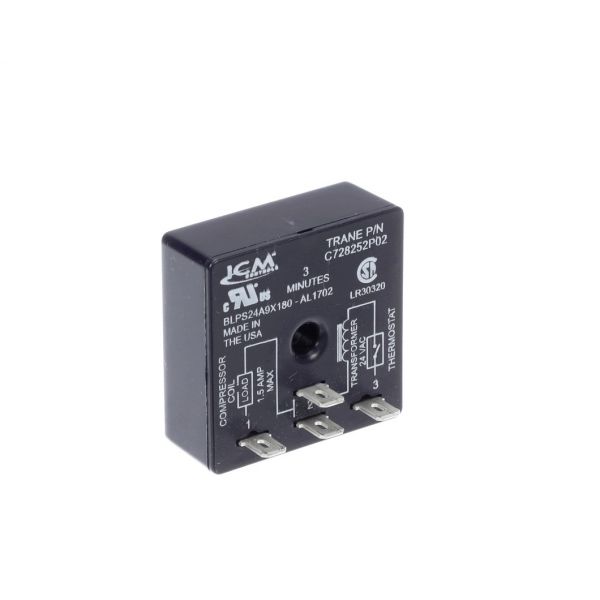

main product photo

Trane RLY01634 3-Min Time Delay Relay Coil SPST 0.5A 24 VAC

Be the first to review this product
Special Price $101.82 Regular Price $141.95
In stock
SKU
RLY01634
The Trane RLY01634 3-Min Time Delay Relay Coil designed with rated for 24 VAC operation at 0.5 amps. It operates by delaying the activation or deactivation of an electrical circuit, supporting to protect HVAC components from short cycling and improper sequencing. It is widely used in heating and cooling systems, it ensures that compressors and other equipment operate under controlled timing conditions. This relay plays an essential role in maintaining system stability, reducing damage on components, and supporting accurate overall performance.
Add to Wish List
HVAC Controls & Electrical, Relays, Time Delay Relays
Manufacturer:
https://www.partshnc.com/media/catalog/product/r/l/rly01634.jpg
Write Your Own Review
You're reviewing:Trane RLY01634 3-Min Time Delay Relay Coil SPST 0.5A 24 VAC
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Trane RLY01634 Time Delay Relay Coil?

Regularly inspect the relay coil for dust, corrosion, or loose connections. Ensure terminals are secure and clean contacts with a dry cloth. Proper maintenance ensures accurate operation and prevents electrical faults. Always disconnect power before servicing.

What are common issues with the Trane RLY01634 Time Delay Relay Coil?

  • Relay failing to engage or disengage.
  • Intermittent operation due to loose connections.
  • Burnt or pitted contacts affecting performance.
  • Coil overheating under continuous voltage.

Installation Steps

Step 1: Turn off all power to the system before installation to prevent electric shock.

Step 2: Identify the relay location in the control panel and remove any existing relay if replacing.

Step 3: Connect the relay coil terminals to the control circuit, ensuring correct polarity.

Step 4: Secure the relay in place using mounting clips or screws.

Step 5: Double-check all wiring connections for tightness.

Step 6: Restore power and test relay operation by triggering the control circuit.
