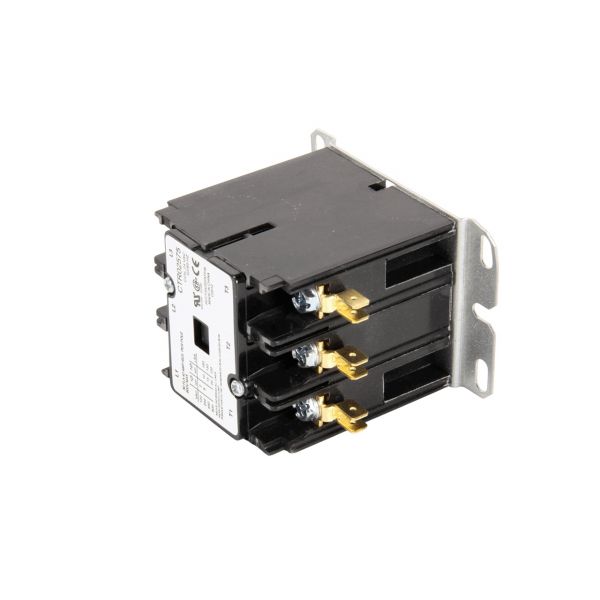

Trane CTR02575 3-Pole Contactor 50/60Hz 30A 24V Coil

Rating:
5 5 1
1  Review Add Your Review
Special Price $35.92 Regular Price $46.70
Out of stock
SKU
CTR02575
The Trane CTR02575 Contactor is an electrical power switch that is used to ensure the efficiency of the motors, heaters, and compressors in the HVAC systems. It is designed to have a 24V coil and can be used at 50/60 Hz and with up to 30 A to give a stable switching during repeated use. The three-pole design ensures the even distribution of current on all the phases and reduces the electrical arcing and stress. It can be used to coordinate with control boards and other electrical parts to ensure efficient operations.
Add to Wish List
HVAC Controls & Electrical, Contactors
Manufacturer:
https://www.partshnc.com/media/catalog/product/c/t/ctr02575.jpg
Write Your Own Review
You're reviewing:Trane CTR02575 3-Pole Contactor 50/60Hz 30A 24V Coil
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Trane CTR02575 Contactor?

Regularly inspect the contactor for dust, corrosion, or burnt contacts. Clean terminals carefully and ensure coil connections are secure. Proper maintenance ensures accurate switching and prevents electrical arcing.

What are common issues with the Trane CTR02575 Contactor?

  • Contacts sticking or failing to close.
  • Electrical arcing or burning at terminals.
  • Coil not energizing properly.
  • Intermittent or inconsistent switching.

Installation Steps

Step 1: Turn off all power to the circuit before beginning installation.

Step 2: Remove the old contactor, noting the wiring configuration.

Step 3: Mount the new contactor securely in the control panel or designated location.

Step 4: Connect the line and load wires to the proper terminals, following the wiring diagram.

Step 5: Attach the control coil wiring correctly.

Step 6: Double-check all connections, restore power, and test operation safely.
