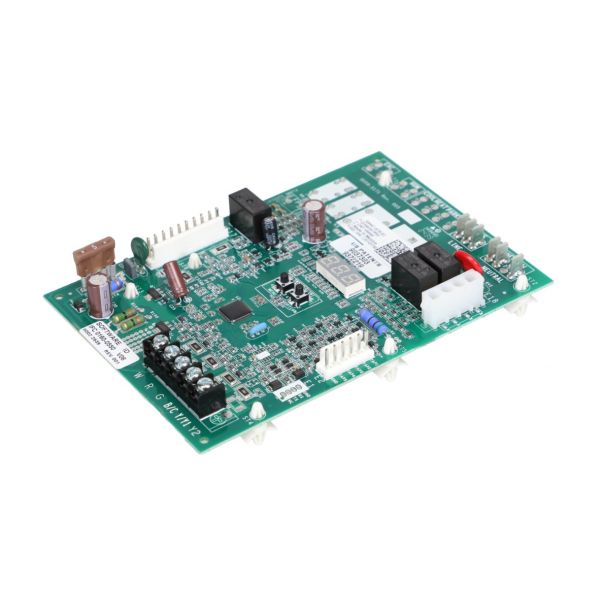

Trane CNT9648 Integrated Control Board

Be the first to review this product
Special Price $130.83 Regular Price $150.45
In stock
SKU
CNT9648
The Trane CNT9648 Integrated Control Board manages and coordinates multiple electrical by processing input signals and directing connected components through programmed control sequences. It operates through integrated electronic circuits that communicate with sensors, relays, motors, and safety system to regulate operation in HVAC systems such as furnaces, air handlers, and packaged units. Mounted inside the electrical control compartment, it connects with the system wiring harness to support monitoring and equipment response during operations. It maintains accurate system communication, supports stable equipment performance, and contributes to heating, cooling, and airflow control.
Add to Wish List
HVAC Controls & Electrical, Control Boards & Modules
Manufacturer:
https://www.partshnc.com/media/catalog/product/c/n/cnt9648.jpg
Write Your Own Review
You're reviewing:Trane CNT9648 Integrated Control Board
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Trane CNT9648 Integrated Control Board?

Periodically inspect the board for dust, debris, or signs of corrosion. Ensure all connections are tight and clean, and check for burnt or damaged components. Maintaining it helps prevent operational errors and ensures accurate system performance.

What are common issues with the Trane CNT9648 Integrated Control Board?

  • Failure to communicate with connected HVAC components.
  • Erratic or unresponsive system operation.
  • Blown fuses or damaged relays.
  • Fault codes or error messages on the system display.

Installation Steps

Step 1: Turn off power to the HVAC system and wait for components to fully stop.

Step 2: Remove the access panel to access the existing control board.

Step 3: Disconnect all wiring and remove mounting screws from the old board.

Step 4: Install the new board, securing it in place.

Step 5: Reconnect all wiring according to the unit schematic.

Step 6: Replace the access panel, restore power, and test system operation.
